14 15

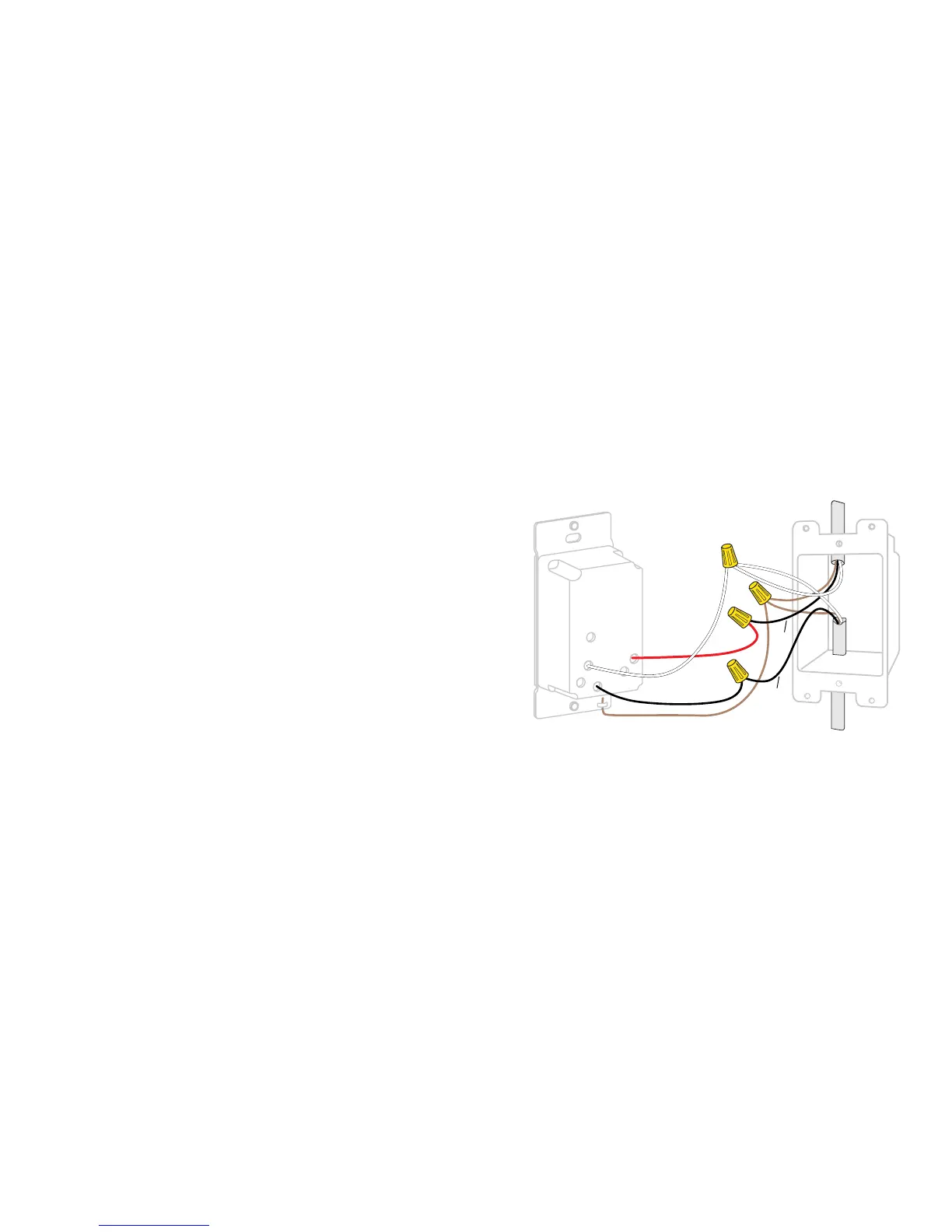

STEP 6
Turn the power back Off at the breaker and install the iDevices
®
Wall
Switch according to the diagram. Ensure all wire nuts are securely
fastened.
LOAD
LINE
NEUTRAL
LINE
LOAD
GROUND
