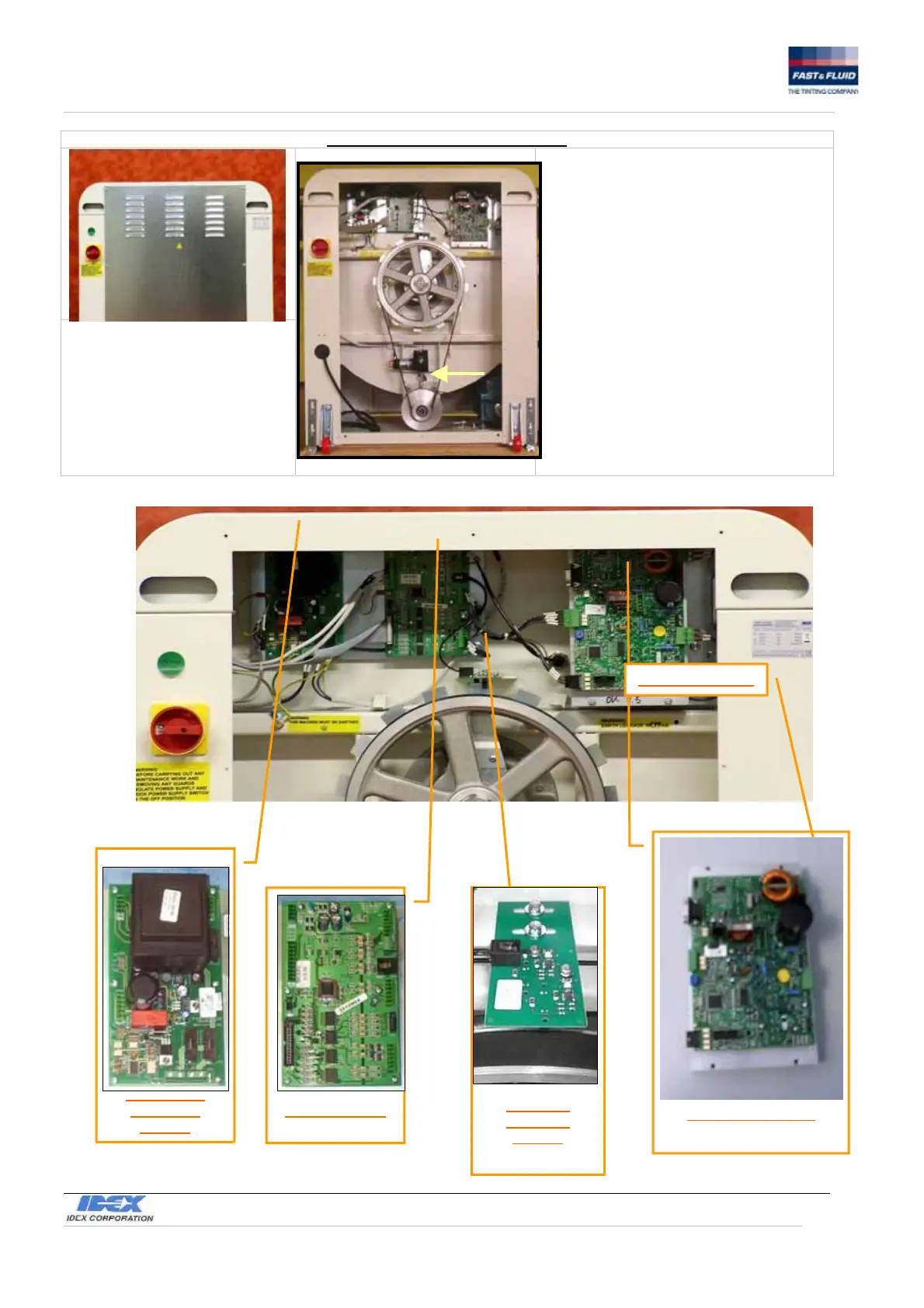

Check of the main transmission belt
 Verify the tension of the belt which has
to have a bending of 5 ÷ 10 mm when
we push with finger the longer free part.
 If necessary tension the belt by using
the bolt (mm 13) indicated
 By using a belt tension tester (which
operates by measuring sound waves),
make sure that frequency of the vertical
transmission belt is about 90Hz, and that
frequency of horizontal transmission belt
is about 125Hz.
 Verify that the belt hasn’t any grindings
while turning manually the central pulley
 Assemble the back panel to its original
position.
 Make sure that there isn’t any
can in the basket
 Switch off the mixer Galileo
operating on the back rotating
switch
 Remove the back panel
unscrewing the 14 screws using
a screwdriver (PZ 2)
ACTUATOR
CONTROL
BOARD
LOGIC BOARD
OPTICAL
SENSORS
BOARD
INVERTER BOARD
FILTER + CABLE
