Idis DA-LP1101R - Power Input; LED Description

4

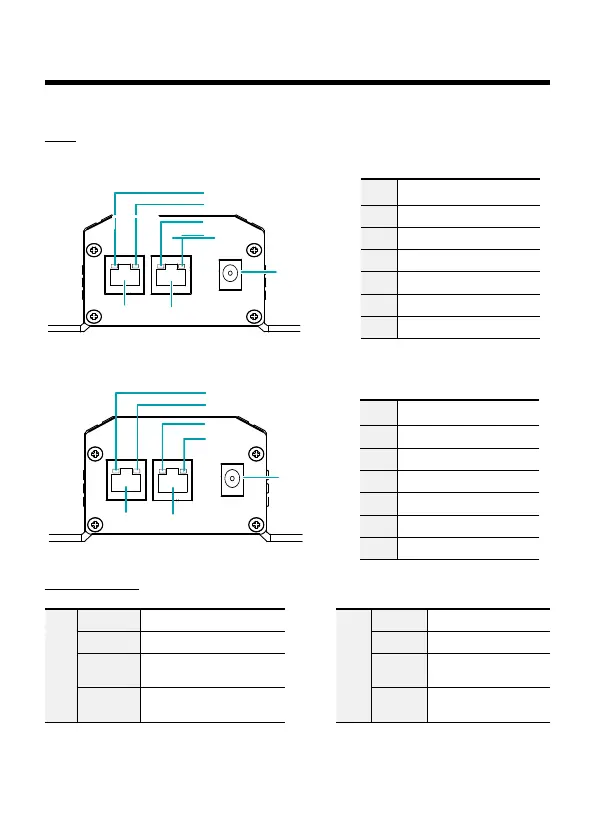

Overview
Front
DA-LP1101R
1
L/A LED (Orange)
2
PoE LED (Green)
3
L/A LED (Orange)
4
Power LED (Green)
5
Power Input
6
RJ 45 Port (LRP OUT)
7
RJ 45 Port (PoE IN)
1
2
3
4
5
6
7
DA-LP1101T
1
2
3
4
5
6
7
1
L/A LED (Orange)
2
PoE LED (Green)
3
L/A LED (Orange)
4
Power LED (Green)
5
Power Input
6
RJ 45 Port (PoE OUT)
7
RJ 45 Port (LRP IN)
LED Description
L/A
On Link up
PoE
On PoE on
O Link down O PoE o
Blink
(2.5Hz)
Activity (with LRP function)
Blink
(1Hz)
Overload
or short circuit
Blink
(10Hz)
Activity (without LRP
function)
Blink
(4Hz)
Overvoltage
or overheating
* When connecting to the device using an adapter instead of PoE, it is normal operation to blink PoE LED.
* Even if PoE LED is on, it may not link if the power is low. For more information, refer to the PoE Output
Capability by Distance section in this manual.
