4 GENERAL DESCRIPTION OF THE HARDWARE Mod: MDM/011/M2 Rev 8
IDS GeoRadar Srl MNG/2022/007 Rev. 1.0 22/ 36

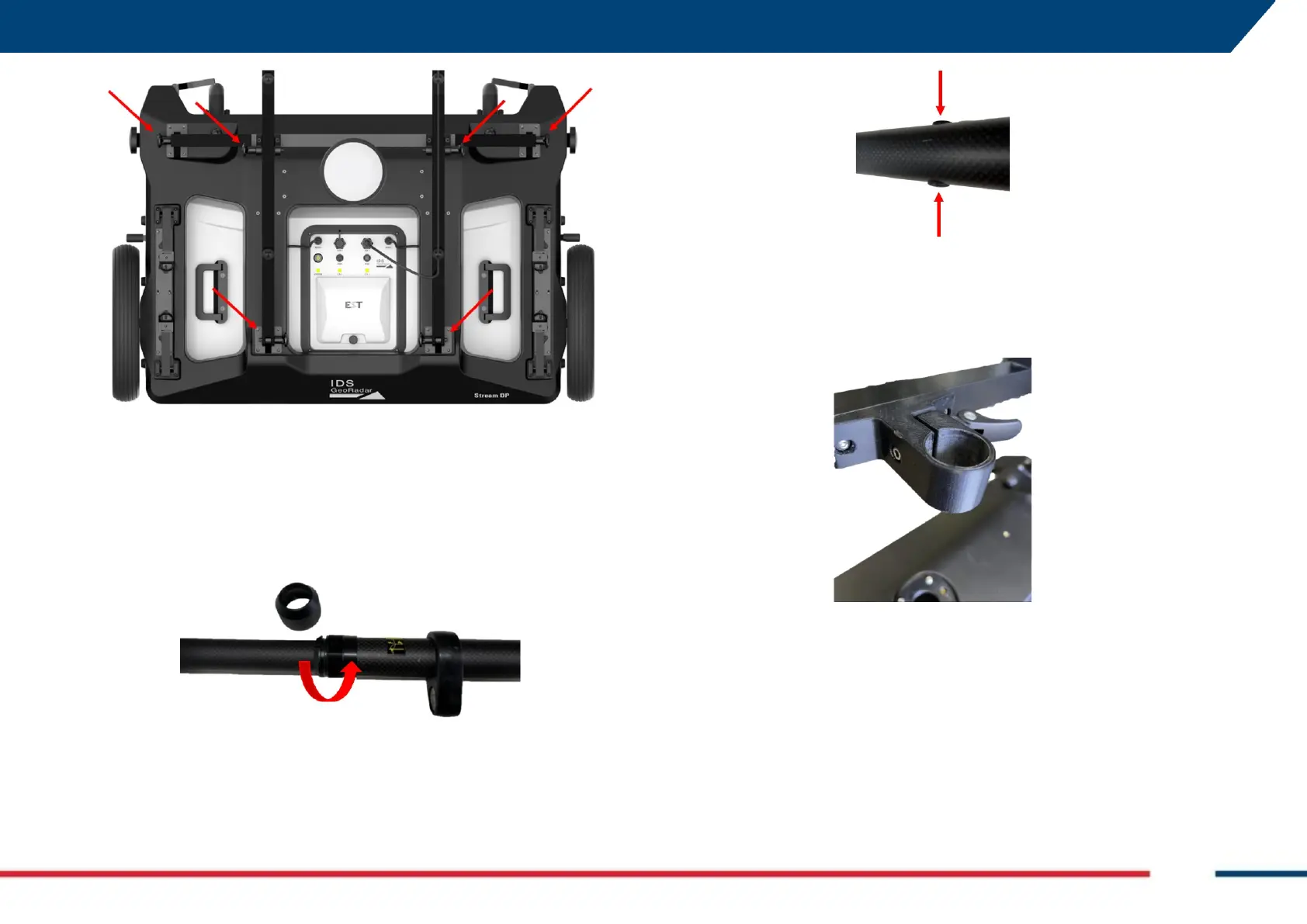

Fig. 13 - Six pins to remove for handle disassembling
4.9 GPS support pole
GPS support pole can be extended up to 2 meters, by unscrewing the
plastic bushing (Fig. 14) and pressing the plastic buttons on the pole (Fig.
15).
Fig. 14 - Removing the plastic bushing
Fig. 15 - Plastic lock
The telescopic pole can be inserted into the clamp system and secured with
the collar (Fig. 16).
Fig. 16 - Clamp system for GNSS pole
GNSS receiver has to be tightened on the thread (Fig. 17).
