IDS Optex Xwave

8. VX Infinity Series
There are three detectors in the VX Infinity Series; 862-01-VXI-R which
has two PIR lenses, 862-01-VXI-RAM which has two PIR lenses with
anti-masking functionality, and 862-01-VXI-RDAM-X5 which has two
PIR lenses and a microwave sensor with anti-masking functionality.

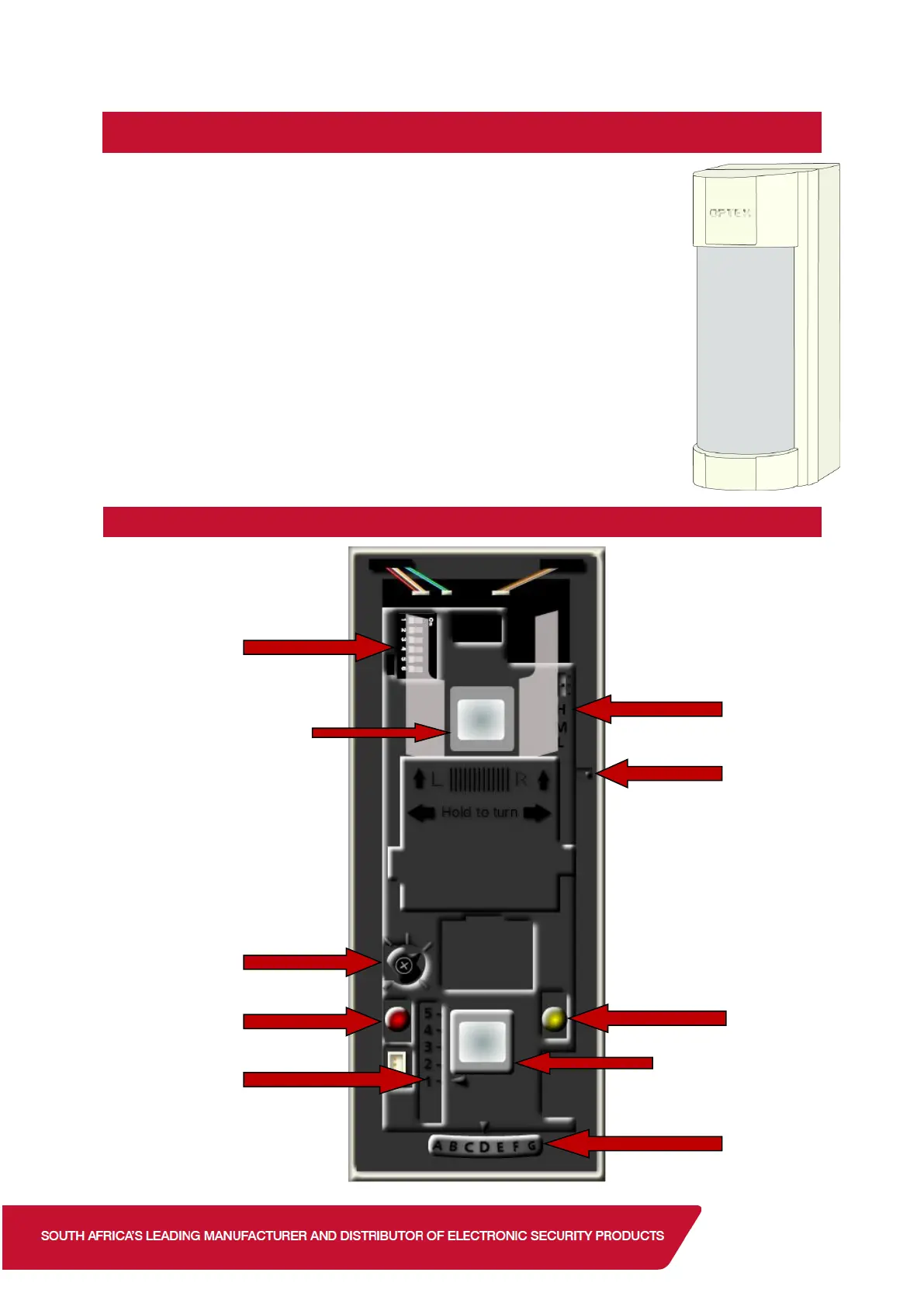

8.1. Hardware
Dip Switch
1 – Walk Test Mode
2 – Battery Saving Timer
3 – Alarm & Trouble Output
4 – LED
5 – Anti-Masking (Ram & RDAM models only)
6 – Microwave Immunity (RDAM model only)
Top PIR Lens
Bottom PIR Lens
PIR Sensitivity Selector
H – High
M – Medium
L – Low
Tamper Switch
PIR LED Indicator
Microwave Sensitivity
Adjustment
Detection Length
Adjustment
Area Angle
Adjustment
Microwave LED
Indicator
