IDS Optex Xwave

Dip Switch 7 – AND/OR
Position
Function
ON
OR Mode, an alarm is generated when either PIR's are triggered.
OFF
AND Mode, an alarm is generated when both top and bottom PIRs
are triggered.
NB: When the detector is in OR Mode there is a larger chance of false detections, as
only 1 PIR needs detection.

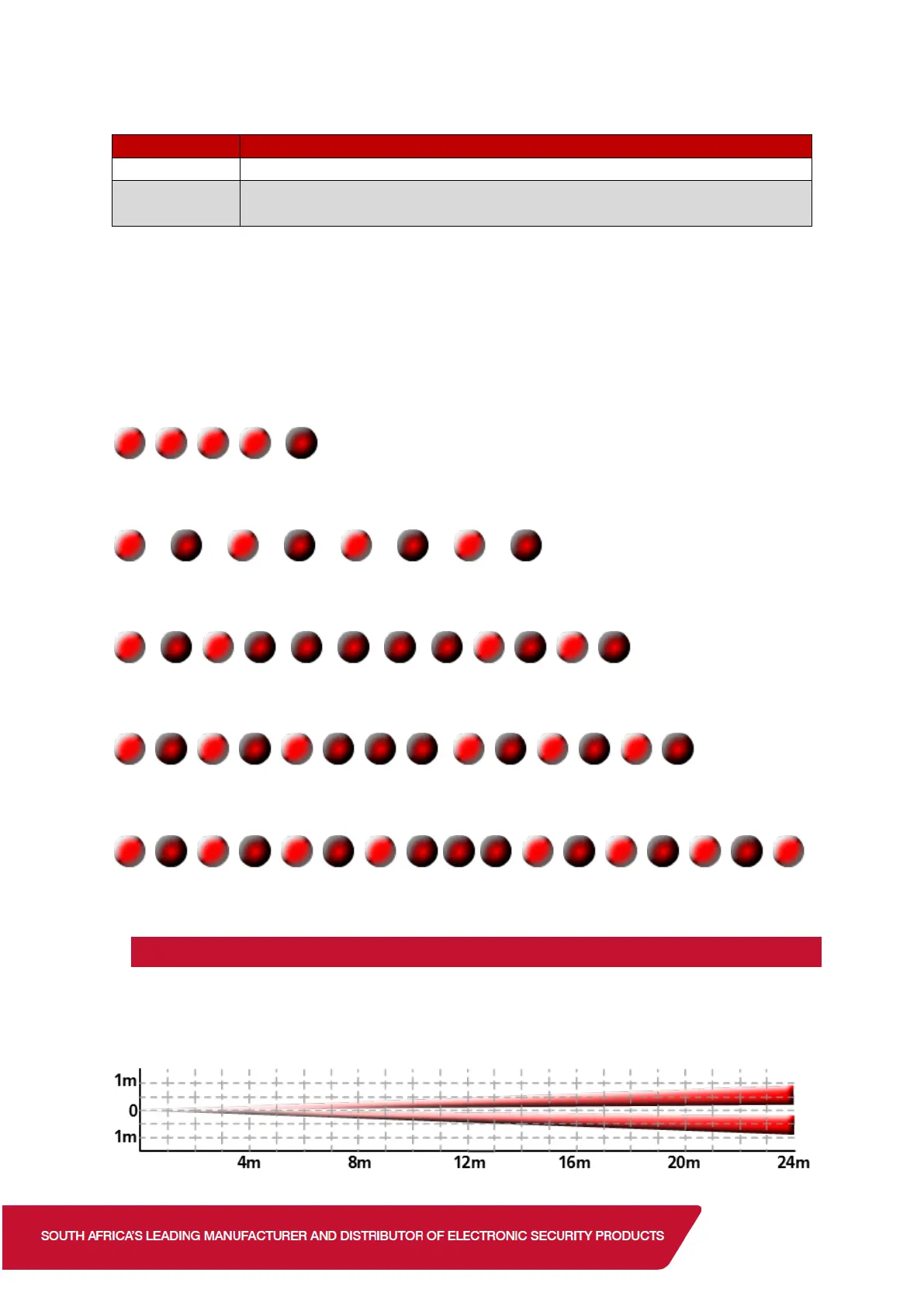

LEDs
Alarm – Red LED turns on for 2 seconds
Warm-up – Red LED blinks for approximately 60 seconds
Anti-Masking Start Up – Red LED blinks 2 times every 5 seconds
Anti-Masking Detection – Red LED blinks 3 times every 3 seconds
Low Battery – Red LED blinks 4 times every 3 seconds
10.2. Detection Area
The 862-01-HX-80NRAM has a detection range of up to 24 metres at a narrow angle.
The detection area is customisable with the use of Masking Flaps and Plates.
Top View
