IDS Optex Xwave

Dip Switch
Dip Switch 1 - Walk Test Mode
Position
Function
ON
Test Mode On. The LED lights irrespective of the Dip switch 4 setting.
Dip switch 2, Battery Saving Timer, is inactive.
OFF
Normal Mode. LED and Battery Saving Timer works according to
their setting.
NB: Once the walk test is complete always set the detector to Normal Mode. Using the
detector in Test Mode will shorten the battery life.

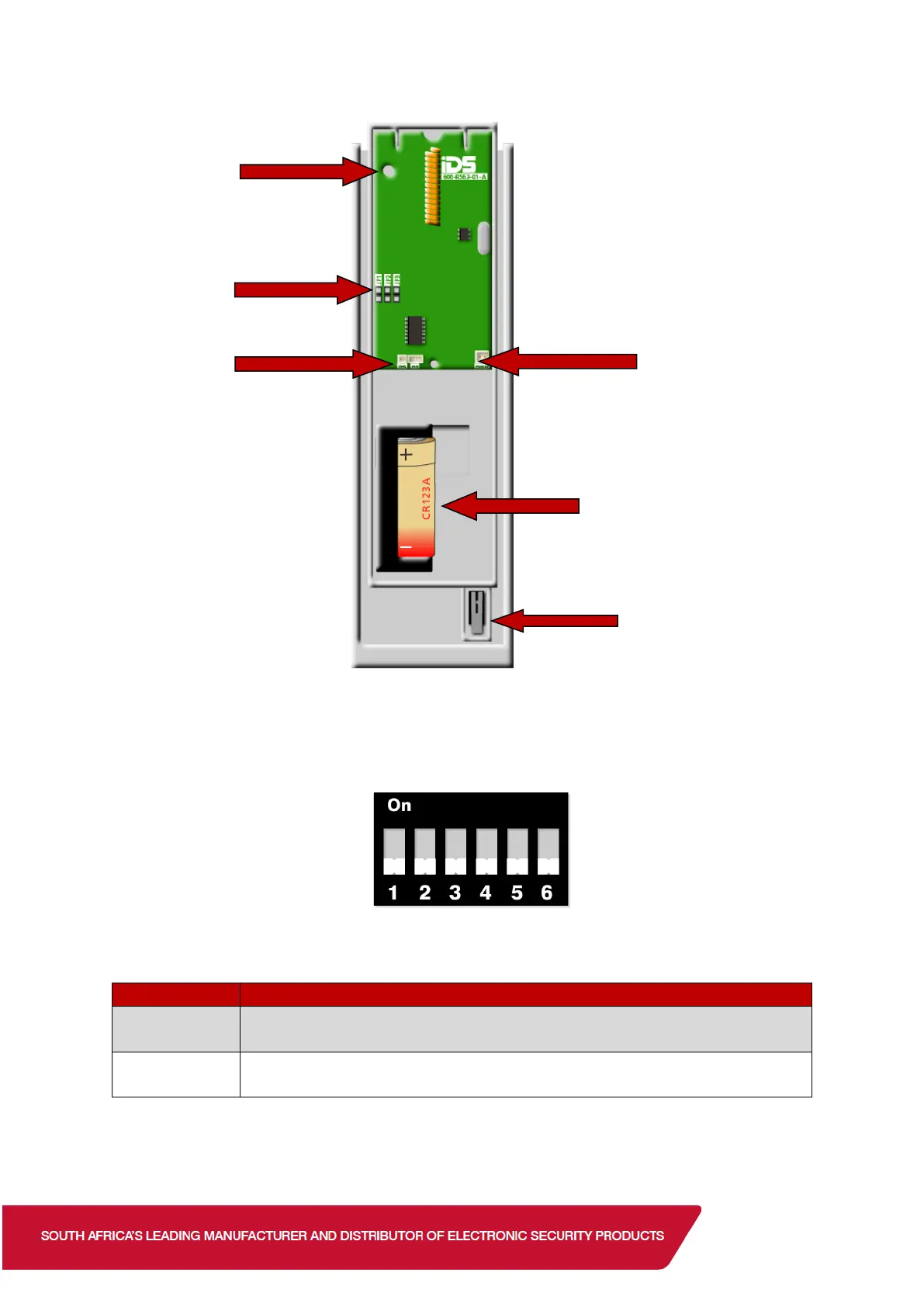

Tamper Switch
Supervision Jumper
J1 On – 90 mins
J1 Off – 12 hrs
IDS Wireless
Transmitter
Power Connector
Connect the battery
holder lead here.
Detector Inputs
Tamper & PIR inputs
come from the
detector.
Battery Holder
Holds 1 x CR 123A
batteries
