IDS Optex Xwave

Dip Switch

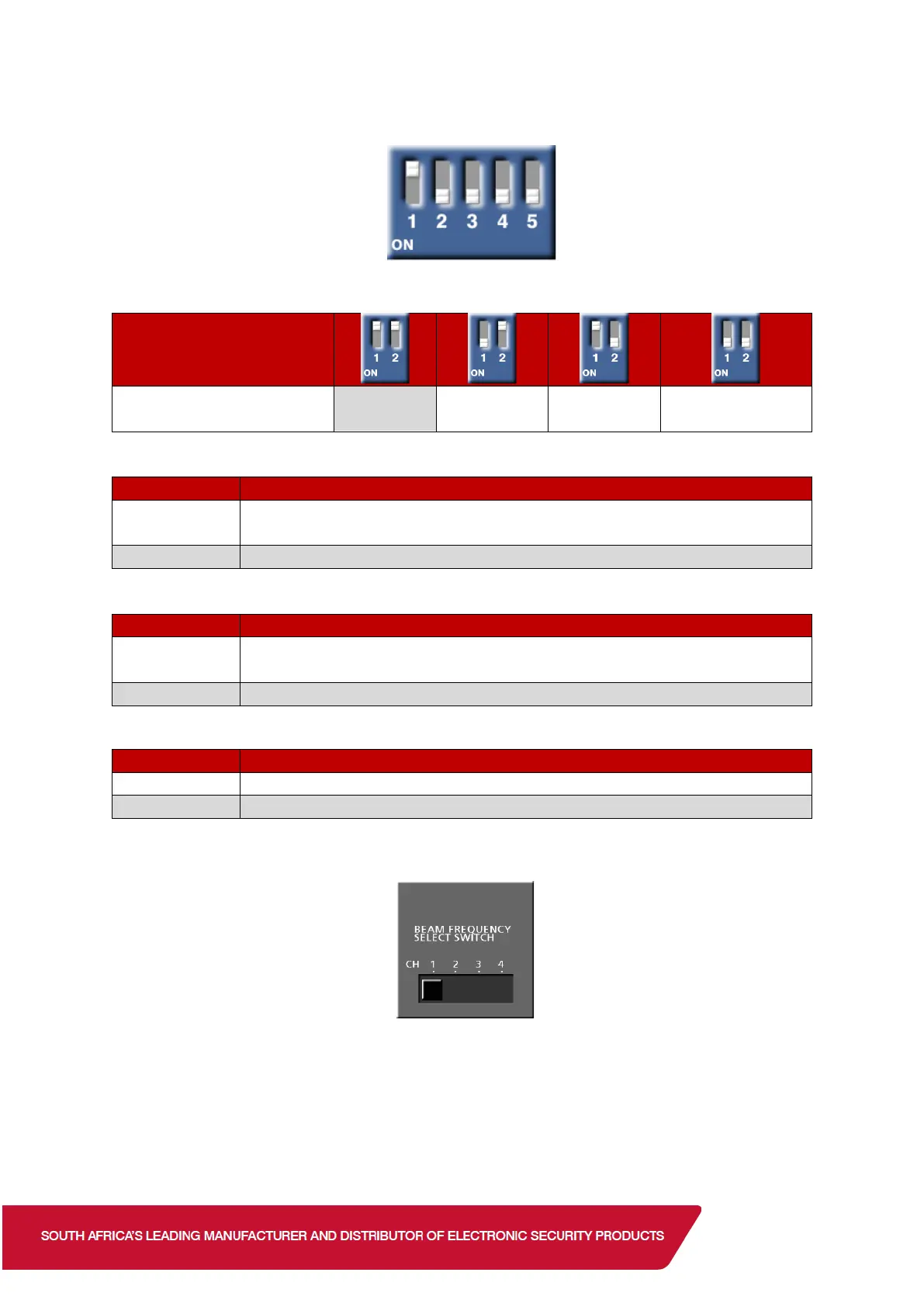

Dip Switch 1/2 – Beam Interruption Adjustment
Dipswitch Position
Interruption Time Setting
Running
(50 msec)
Jogging
(100 msec)
Walking
(250 msec)
Slow Movement
(500 msec)
Dip Switch 3 - Battery Saving Timer
Position
Function
ON
Even if there are continuous alarms, the alarm is only generated once
in a 120 second time. To lengthen battery life.
OFF
The alarm is generated whenever there is an alarm condition.
Dip Switch 4 – Intermittent Output Function
Position
Function
ON
Sets the Alarm output to trigger intermittently (every 1 minute) if a
continuous alarm condition occurs.
OFF
The Alarm output triggers only once on an alarm condition.
Dip Switch 5 – Alarm Output
Position
Function
ON
Sets the output type to Normally Open (N.O.)
OFF
Sets the output type to Normally Closed (N.C.)
Beam Frequency
The 4 channel beam frequency selector is used to avoid crosstalk when using more
than 1 pair of beams. The receiver and the transmitter that are paired must be on the
same frequency channel. If you are stacking 2 sets of beams (putting beams on top of
each other) then you must use frequencies that are 2 channels apart, i.e. channel 1 for
one pair and channel 3 for the second pair of beams.
