IDS Optex Xwave User Manual

4. 862-01-WNX-40PI-T
The 862-01-WNX-40PI-T is a highly reliable indoor PIR
detector.

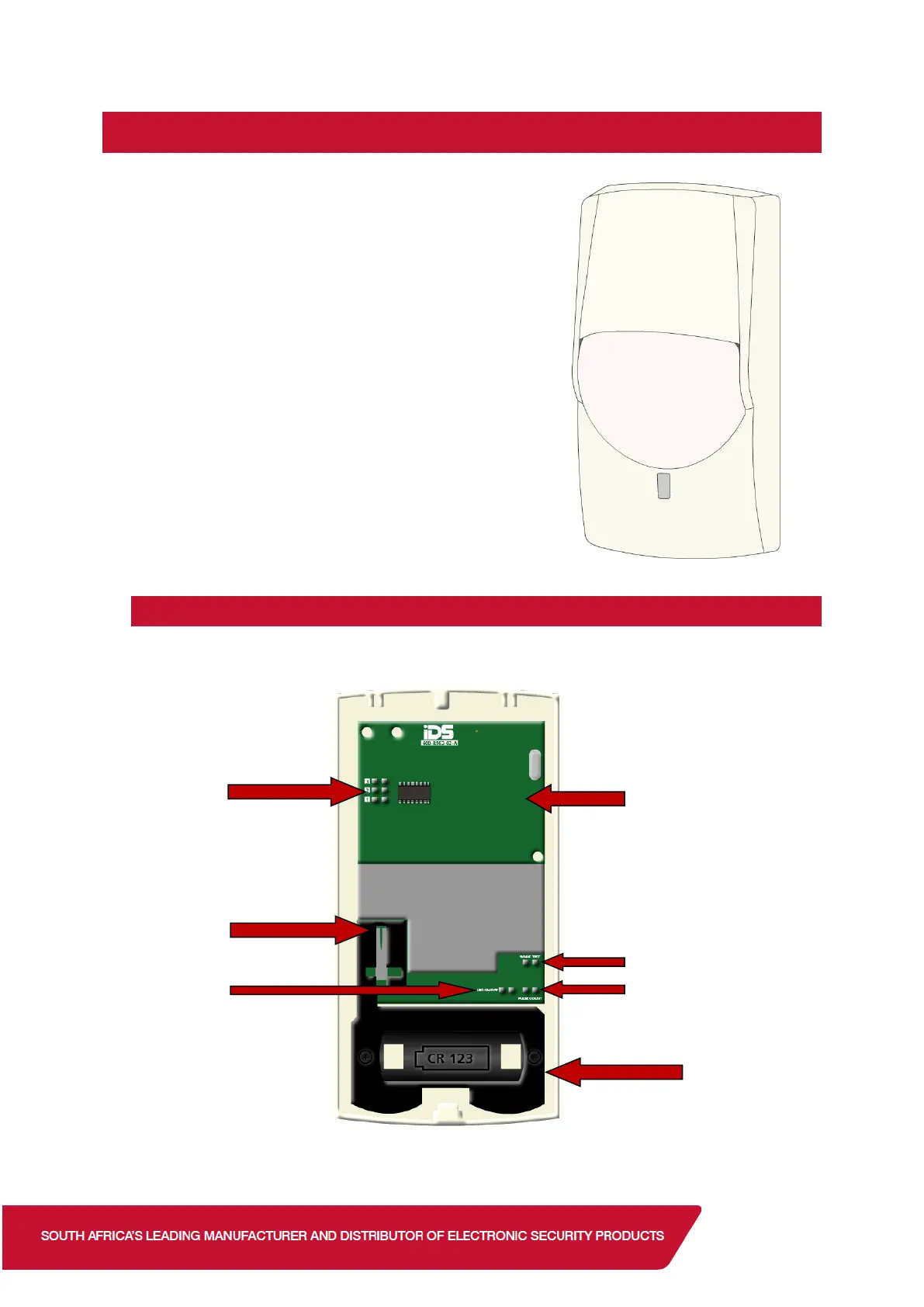

4.1. Hardware
Tamper Switch
Supervision Jumper
J1 On – 90 mins
J1 Off – 12 hrs
IDS Wireless
Transmitter
Battery Holder
1 x CR123A Battery
LED Jumper
On – Enables the LED
Off – Disables the LED
Walk Test Jumper
On – Enables Walk Test (LED is
enabled, Pulse Count set to 1)
Off – Normal Operation
Pulse Count Jumper
On – Sets Pulse Count to 2
Off – Sets Pulse Count to 4
