G-11c/GCG-11c

Instruction Manual

1615

A: Power Supply for LED Lights

B1: On/Off Switch for Interior

and Door Side Light

B2: On/Off Switch for Canopy

Light

C1: Interior Top LED Light

C2: Door Side LED Light

C3: Canopy LED Light

D: Evaporator Fan

E: Thermostat

F: Condenser Fan

G: Overload for Compressor

H: Compressor

I: Compressor Running Capacitor

J. Compressor PTC

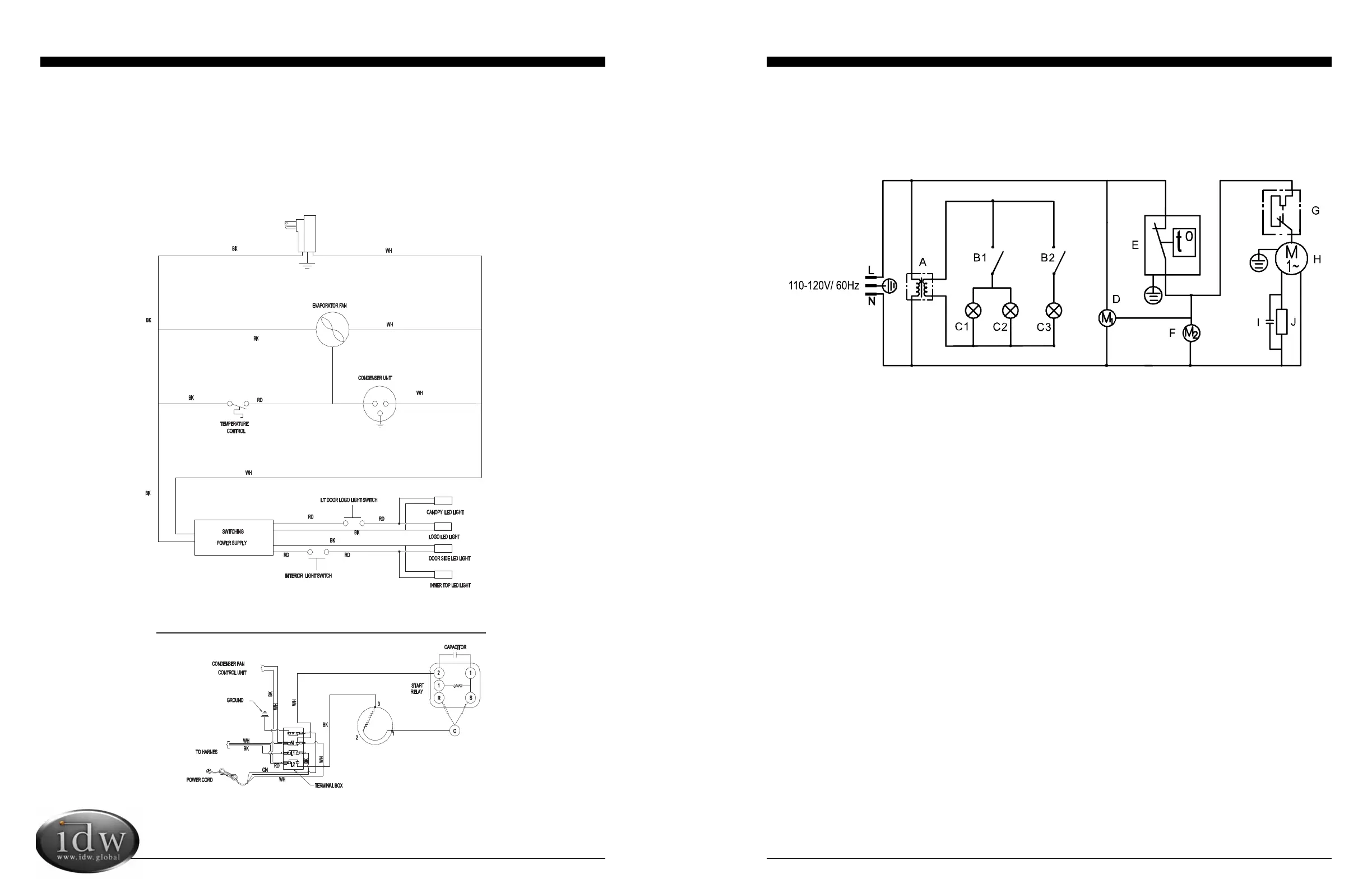

G-11c CIRCUIT DIAGRAM

For Models: G-11-C33EB, G-11-BC33EB, G-11-SC33EB, G-11-ZC33EB, G-11-PC33EB, G-11-WC33EB, G-11-C33EB-HC, G-11-SC33EB-HC

GCG-11c WIRING DIAGRAM

For Models: GCG-11-C33EB, GCG-11-C233EB, GCG-11-BC33EB, GCG-11-AC33EB, GCG-11-ZC33EB, GCG-11-ZC233EB, GCG-11-SC33EB,

GCG-11-BC233EB, GCG-11-PC33EB, GCG-11-2SC33EB, GCG-11-WC33EB, GCG-11-WC233EB, GCG-11-C-C233EB-HC , GCG-11-SC33EB-HC,

GCG-11-2S33EB-HC, GCG-11-2S33EB-HC
