Industrial Electronic Engineers, Inc.
SIZE
A
CODE IDENT NO.
05464
S03601-95B-40
Van Nuys, California
SCALE N/A
REV A
SHEET 12 of 14
08/26/02

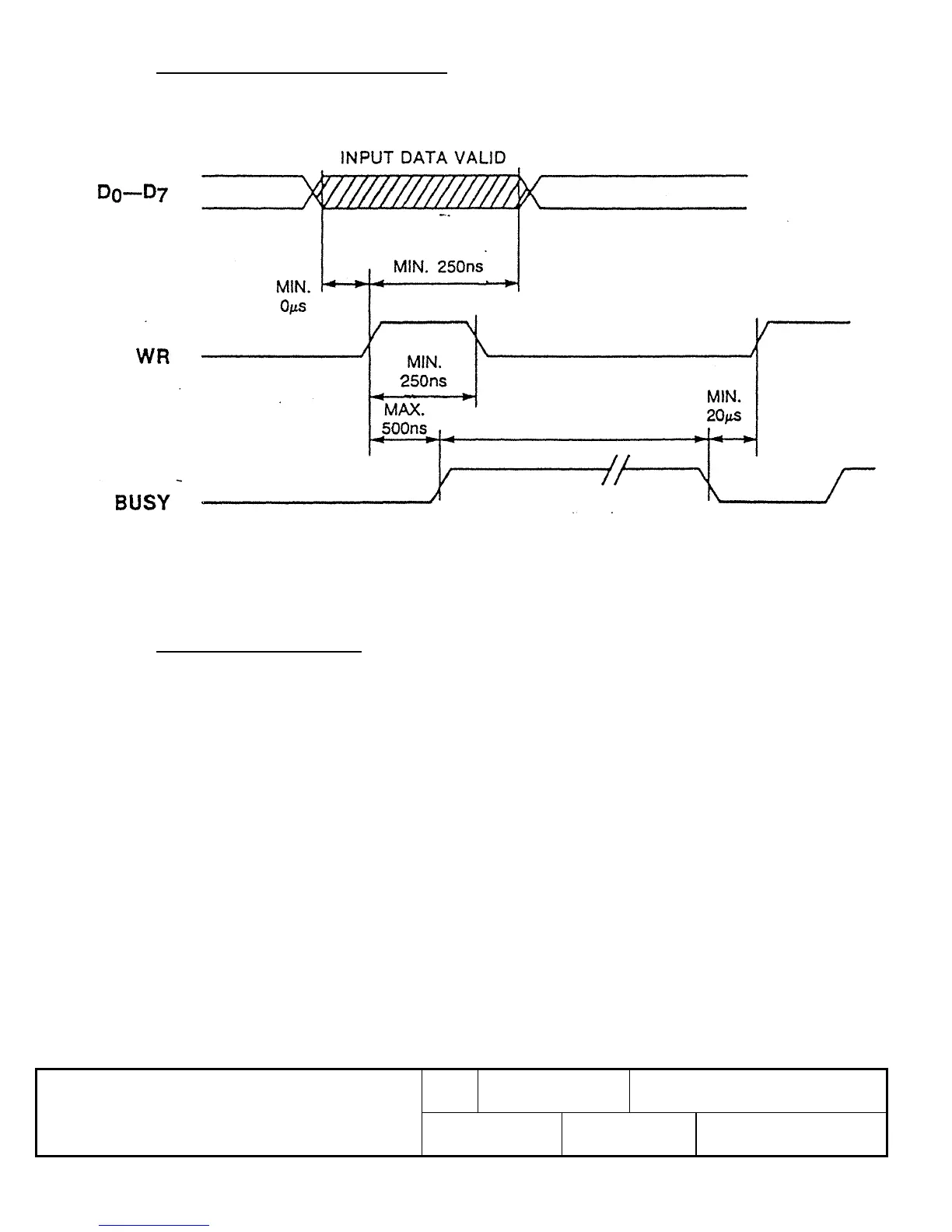

5.5 Timing Characteristics And Timing Diagram
DATA WRITE TIMING
6.0 OPTICAL CHARACTERISTICS
Format: 2 line of 20 characters
Character height: 0.20 in. (5.05mm)
Character width: 0.14 in. (3.55mm)
Character spacing: 0.19 in. (4.75mm) center-to-center
Character design: 5 x 7 dot matrix
Type of cursor indicator: Block
Character set: 96-character U.S. ASCII-7
Extended European character set
and 10 user defined characters
Color: Blue-green, peak at 5000 Angstroms
Viewing angle: 150 degrees
Brightness: (22
o
C) 100fL (min), 200fL (typ)
Projected life at rated
operating conditions: 40,000 to 100,000 hours*
*Note: End of useful life is defined as the point when the display tube light output has decreased to half its
initial minimum rated brightness. This life rating is based on use with random text messages. To
obtain maximum life, users are encouraged to avoid fixed messages and to blank or clear the display
when it is not in use.
