Specifications
CPU: Intel Socket-478 P4/Prescott/Celeron-D up to FSB 800 MHz
BIOS: AMI 4MB Flash Memory
Chipset: Intel 915GV and ICH6/ICH6R.
System memory: Daul channel, two 184-pin DIMM sockets support up to
2GB DDR 333/400 SDRAM (PC2700/PC3200)
SATA/IDE interface: Support four Serial SATA hard drives (up to
150MB/s) and two enhanced IDE devices
FDD interface: Support up to two FDDs
Serial ports: Two Serial ports (RS232)
Parallel port: One parallel port, supports SPP/EPP/ECP Modes
Keyboard/Mouse connector: PS/2 type keyboard and mouse
Watchdog timer: software programmable
USB 2.0: Support up to eight ports
Video output:
CRT: Intel GMA 900 support up to 2048x1536@85Hz
DVI interface (optional)
Ethernet: Single PCI-Express GbE
Audio: AC97 2.3 (Optional by cable kit)

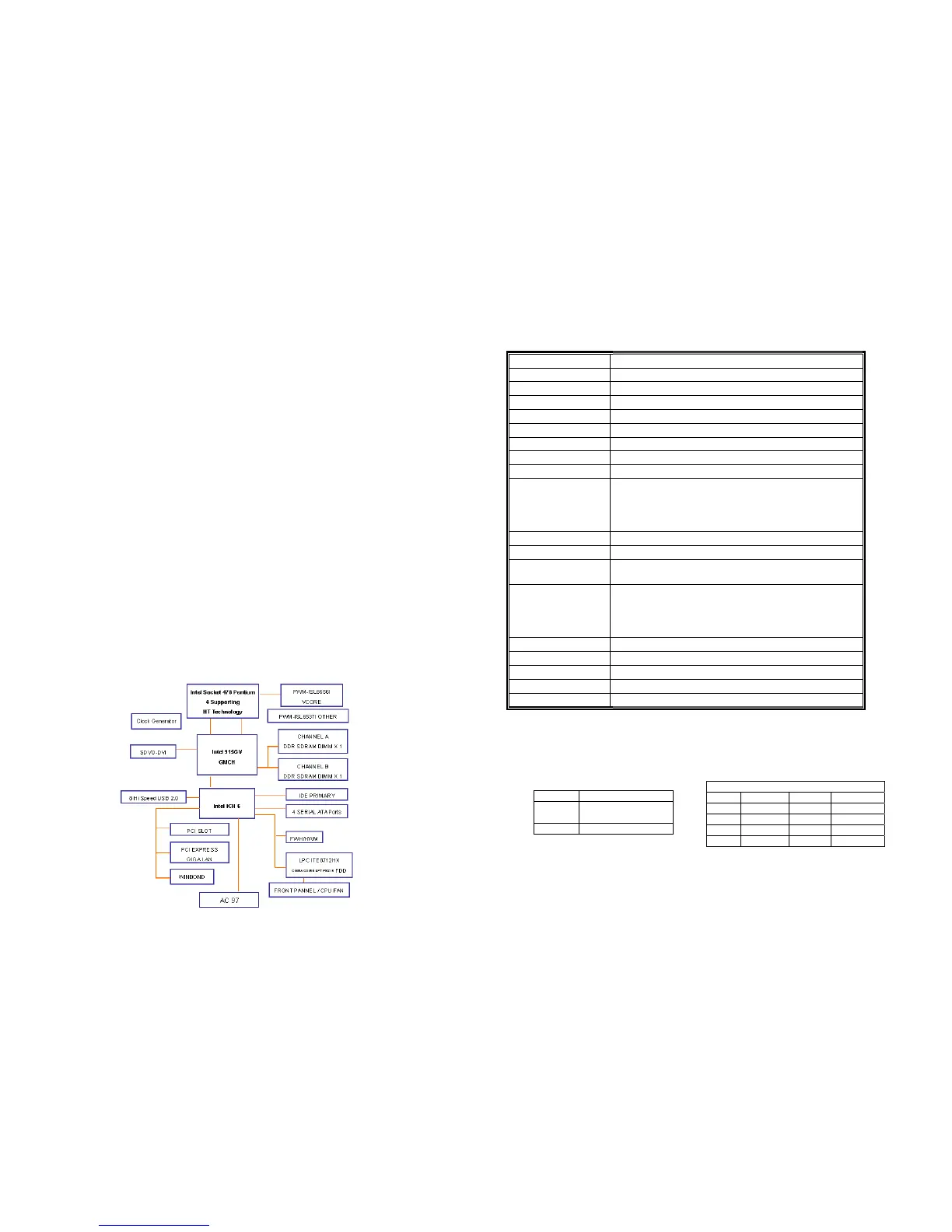

Block Diagram
Jumpers/Connections
LABEL FUNCTION
KB_MS1 PS/2 MOUSE & KEYBOARD Connector
LAN1 LAN RJ45 Connector
VGA1 VGA 15-pin Female Connector
COM1 Serial Port Connectors
PIDE1 IDE Connectors
FDD1 FDC Connector
LPT1 Parallel Port Connector
COM2 Internal Serial Port 10-pin Connectors
USB01
USB23
USB45
USB67
Internal 2 Port USB Connectors
IR1 IrDA Infrared Interface Connector
CPU_FAN1 Fan Connectors
ATXCTL1
Backplane to Main Board ATX Power Control
Connector
S_ATA1
S_ATA2
S_ATA3
S_ATA4
Serial ATA Connectors
F_PANEL1 PWR & RST Buttons
and Indicators
J_AUDIO1 AC’97 Connector
KB1 External 5-pin Header Keyboard Connector
DVI1 DVI-D connector
CPU12V1 ATX-12V CPU Power Source
Jumpers setting and Connectors
J_COMS1 Description
1-2
(Default)*
Keep CMOS Setup
Short 2-3 Clear CMOS Setup
USB01, USB23, USB45, USB 67
Pin No. Description Pin No. Description
1 VCC 2 GND
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 VCC
