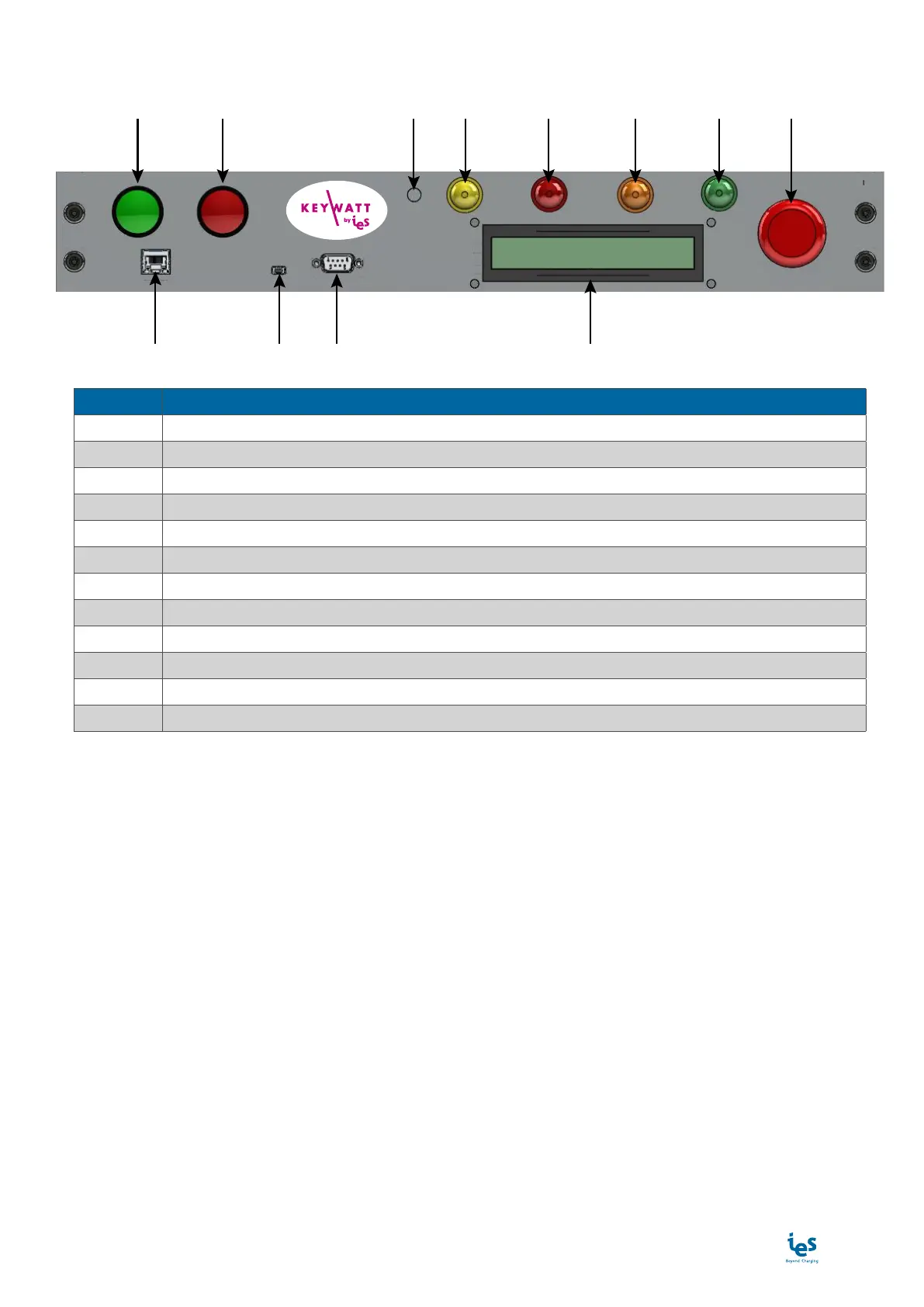

Control panel
DC CHARGER 50KW
IES-SYNERGY
Position Description
1 “START” button to launch a charge
2 “STOP” button to stop the charge
3 Voltage presence indicator light
4 “Charger ready”
5 “Failure” indicator light
6 “Auxiliary function” indicator light
7 “Charge” indicator light
8 Emergency stop button
9 Control display
10 CAN bus connection on SUB-D9 port
11 USB port
12 Ethernet network connection
Note: May change depending on version or technical modification
