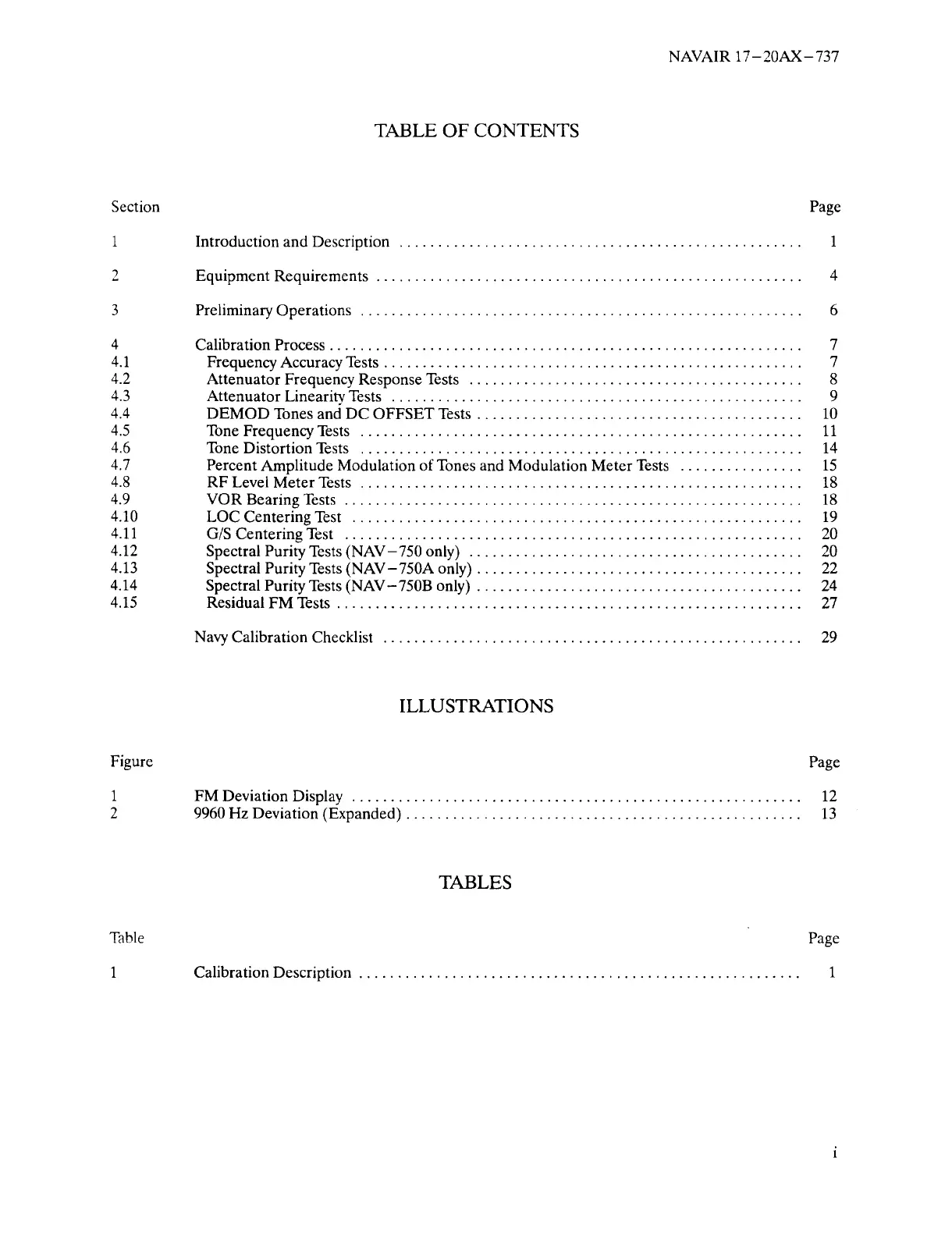

TABLE OF CONTENTS
NAVAIR 17—2OAX—737
Page
1
4
6
7
7
8
9
10
11
14
15
18
18
19
20
20
22
24
27
29
1
Introduction and Description
Equipment Requirements
Preliminary Operations
Calibration Process
Frequency Accuracy Tests
Attenuator FrequencyResponse Tests
Attenuator Line aritv Tests
DEMOD Tones and DC OFFSET Tests
Tone Frequency Tests
Tone Distortion Tests
Percent Amplitude Modulation of Tones and ModulationMeter Tests
RF Level Meter Tests
VOR Bearing Tests
LOC Centering Test
GIS Centering Test
Spectral Purity Tests (NAV—750 only)
Spectral Purity Tests (NAV—750A only)
Spectral Purity Tests (NAV—750B only)
Residual FM Tests
Navy Calibration Checklist
ILLUSTRATIONS
Page
FM Deviation Display 12
9960 Hz Deviation (Expanded) 13
TABLES
Page
Calibration Description
Figure
1
2
Table
1
