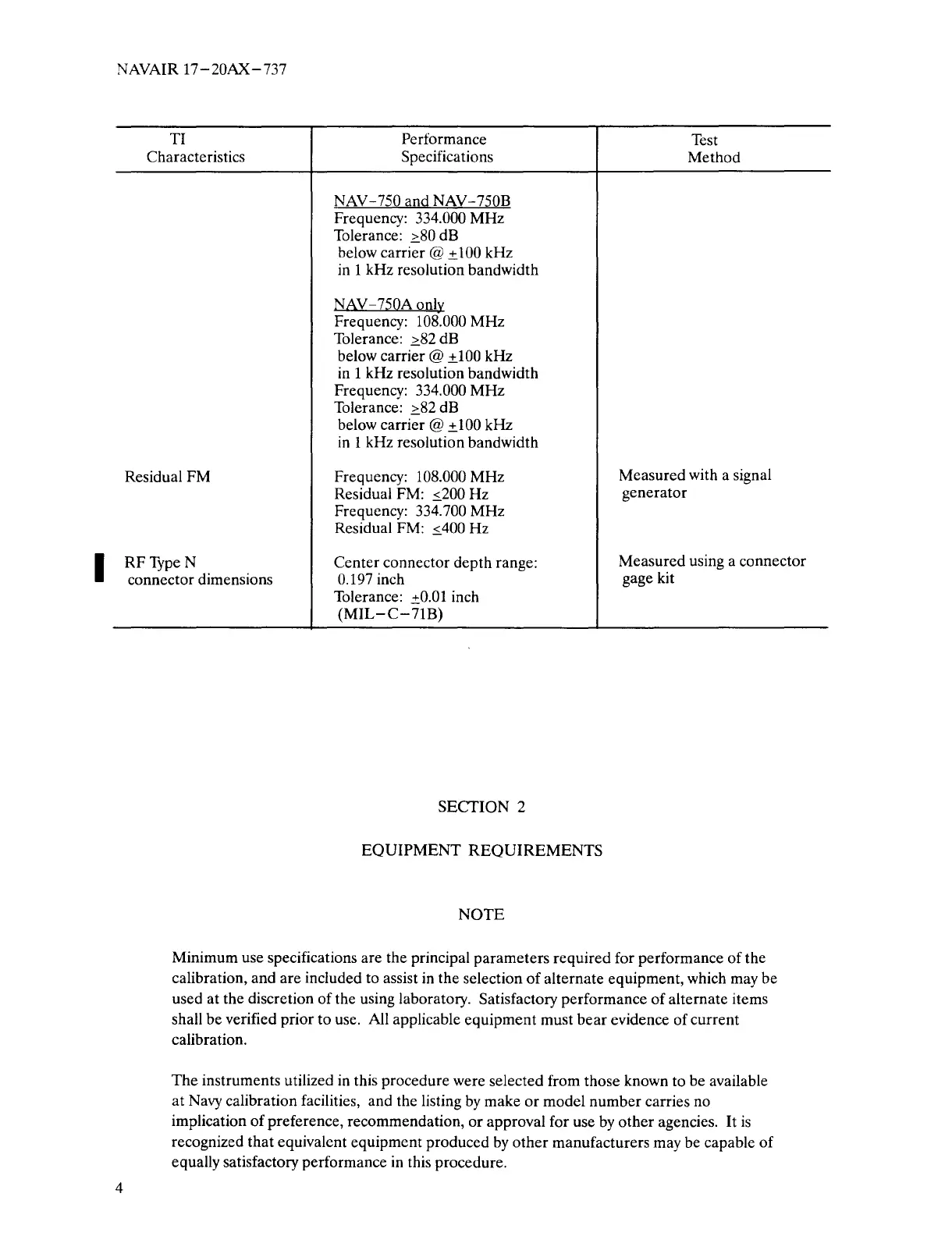

NAVAIR 17—2OAX—737
TI
Characteristics
Performance
Specifications
Test
Method
NAV-750 and NAV-750B
Frequency: 334.000 MHz
Tolerance: >80 dB
below carrier @ ±100 kHz
in 1 kHz resolution bandwidth
NAV—750A only
Frequency: 108.000 MHz
Tolerance: >82dB
below carrier @ ±100 kHz
in 1 kHz resolutionbandwidth
Frequency: 334.000 MHz
Tolerance: >82 dB
below carrier @ ±100 kHz
in 1 kHz resolutionbandwidth
Residual FM Frequency: 108.000 MHz
Residual FM: ~200 Hz
Frequency: 334.700 MHz
Residual FM: ~.400 Hz
Measured with a signal
generator
RF Type N Centerconnector depthrange:
Measured using a connector
connector dimensions 0.197 inch
Tolerance: ±0.01 inch
(MIL—C—71B)
gage kit
SECTION 2
EQUIPMENT REQUIREMENTS
NOTE
Minimum use specifications are the principal parameters requiredfor performance of the
calibration, and are included to assist in the selection of alternateequipment, which may be
used at the discretion of the using laboratory. Satisfactory performance of alternate items
shall be verified prior to use. All applicable equipment must bear evidence of current
calibration.
Theinstruments utilized in this procedure were selected from those known to be available
at Navy calibration facilities, and the listing by make or model number carries no
implication of preference, recommendation, or approvalfor use by other agencies. It is
recognized that equivalentequipmentproduced by other manufacturers may be capable of
equally satisfactory performance in this procedure.
I
4
