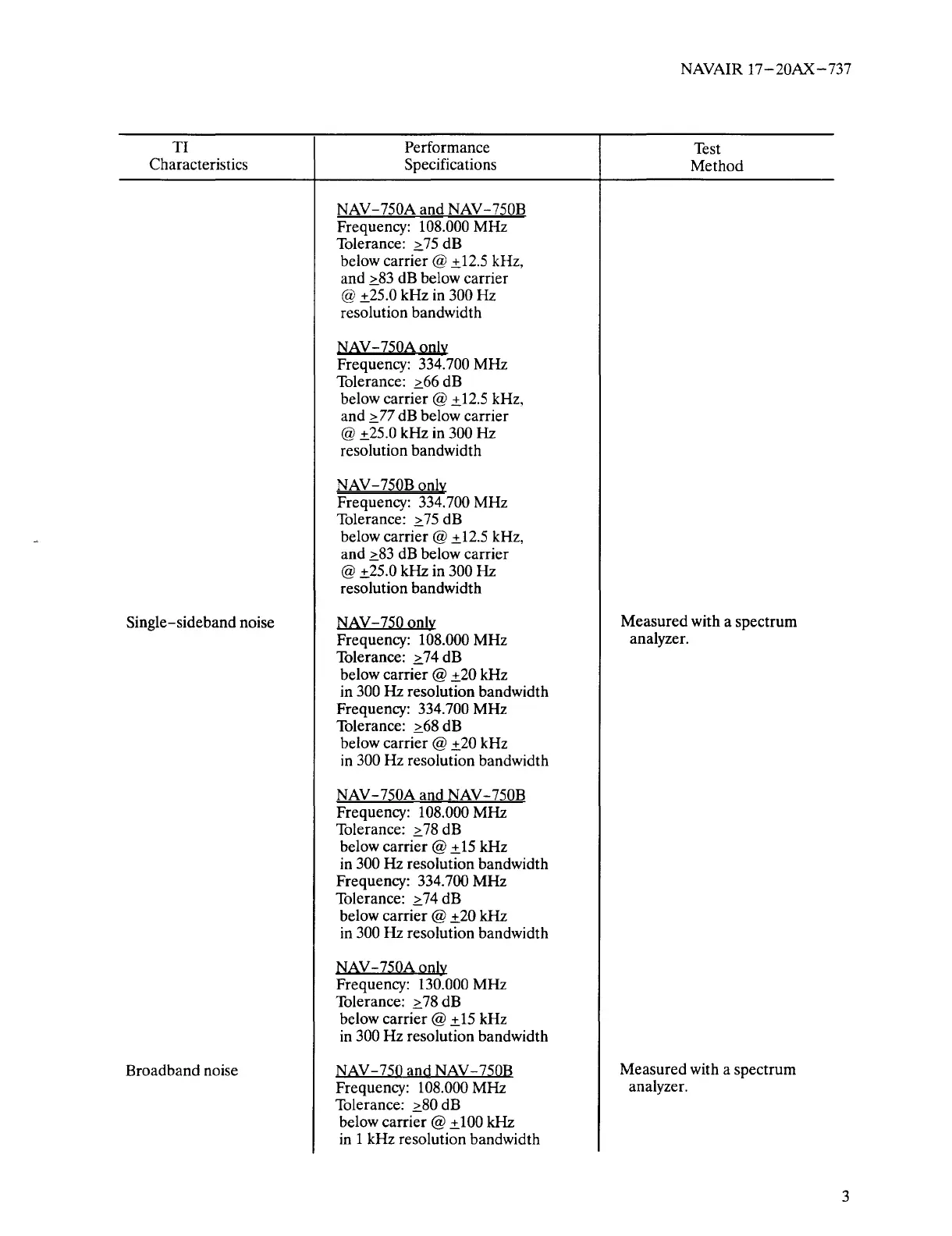

IFR NAVAIR NAV-750 User Manual

NAVAIR 17—2OAX—737
Frequency: 108.000 MHz
Tolerance: 75 dB
below carrier @ ±12.5 kHz,
and ~83 dB below carrier
@ ±25.0 kHz in 300 Hz
resolution bandwidth
NAV-750Aonly
Frequency: 334.700 MHz
Tolerance: 66 dB
below carrier @ ±12.5 kHz,
and 77 dB below carrier
@ ±25.0 kHz in 300 Hz
resolutionbandwidth
NAV—750B only
Frequency: 334.700 MHz
Tolerance: >75 dB
below carrier @ ±12.5 kHz,
and ~83 dB below carrier
@ ±25.0 kHz in 300 Hz
resolution bandwidth
NAV—750 only
Frequency: 108.000 MHz
Tolerance: 14 dB
below carrier @ ±20 kHz
in 300 Hz resolution bandwidth
Frequency: 334.700 MHz
Tolerance: 68 dB
below carrier @ ±20 kHz
in 300 Hz resolution bandwidth
NAV-750A and NAV-750B
Frequency: 108.000 MHz
Tolerance: ~78 dB
below carrier @ ±15 kHz
in 300 Hz resolution bandwidth
Frequency: 334.700 MHz
Tolerance: >74 dB
below carrier @ ±20 kHz
in 300 Hz resolution bandwidth
NAV-750Aonly
Frequency: 130.000 MHz
Tolerance: .78 dB
below carrier @ ±15 kHz
in 300 Hz resolution bandwidth
NAV-750and NAV-750B
Frequency: 108.000 MHz
Tolerance: ~80 dB
below carrier @ ±100 kHz
in 1 kHz resolutionbandwidth
TI
Characteristics
Performance
Specifications
Test
Method
NAV-750A and NAV-750B
Single—sideband noise
Broadband noise
Measured with a spectrum
analyzer.
Measured with a spectrum
analyzer.
3
