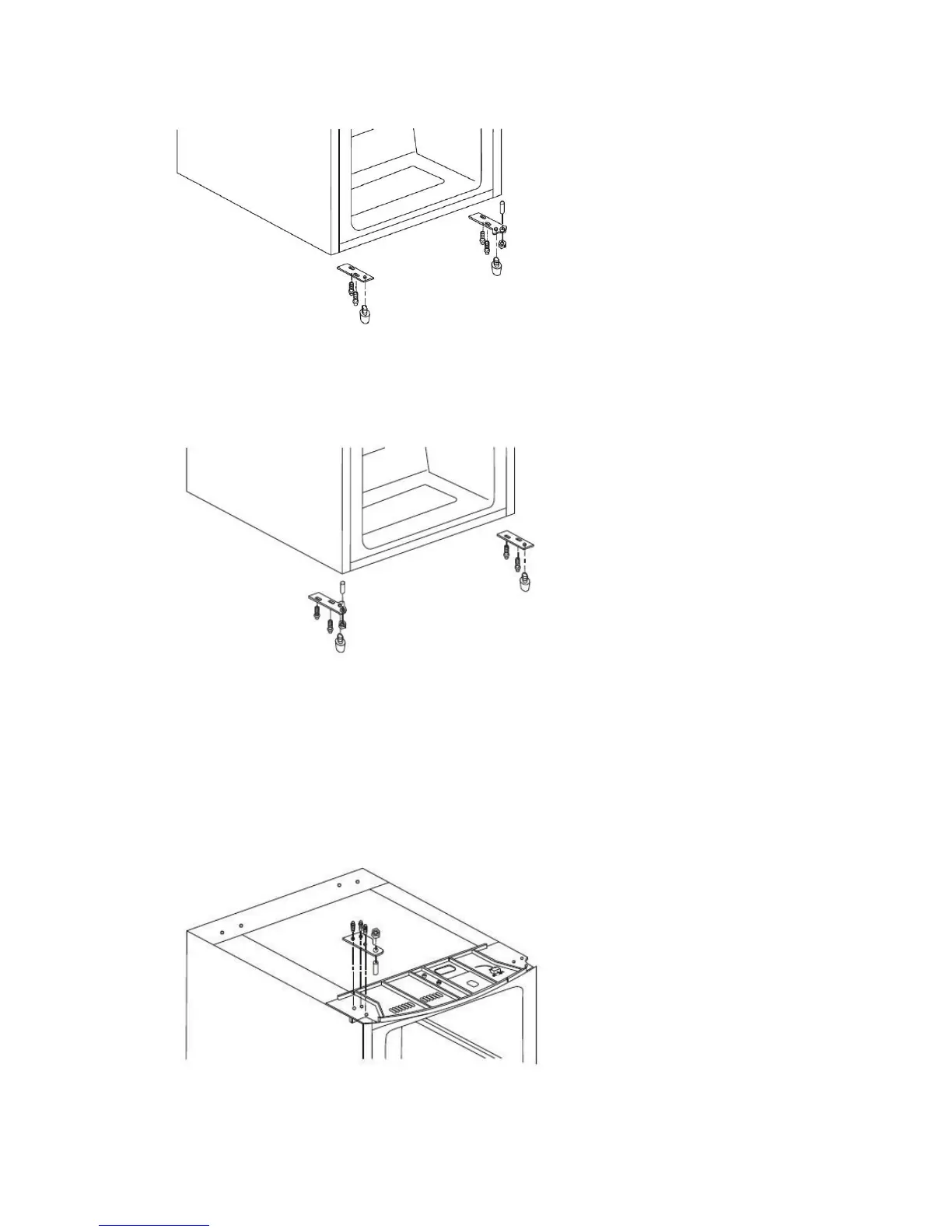

5. Rotate the former left leg 180 degrees and attach to the lower right corner,then rotate the
former right leg 180 degrees and fasten to the bottom left corner.The door should be able to
attach to the lower left hinge.
Reattach the door to the correct side.Secure and level the door,then tighten the fasteners.
6. Remove upper right bracket w/ the door hinge.Remove hinge pin,then flip to other
side.Rotate the bracket 180 degrees,and fasten to left side.Fit hinge into the upper hole of
door.Tighten the bolts to secure the door.
Transfer the former left side bracket to the right side.
Replace the top cover by inserting all screws previously removed in step 2.Replace the
screw cover.
Reinsert the temperature control knob.
