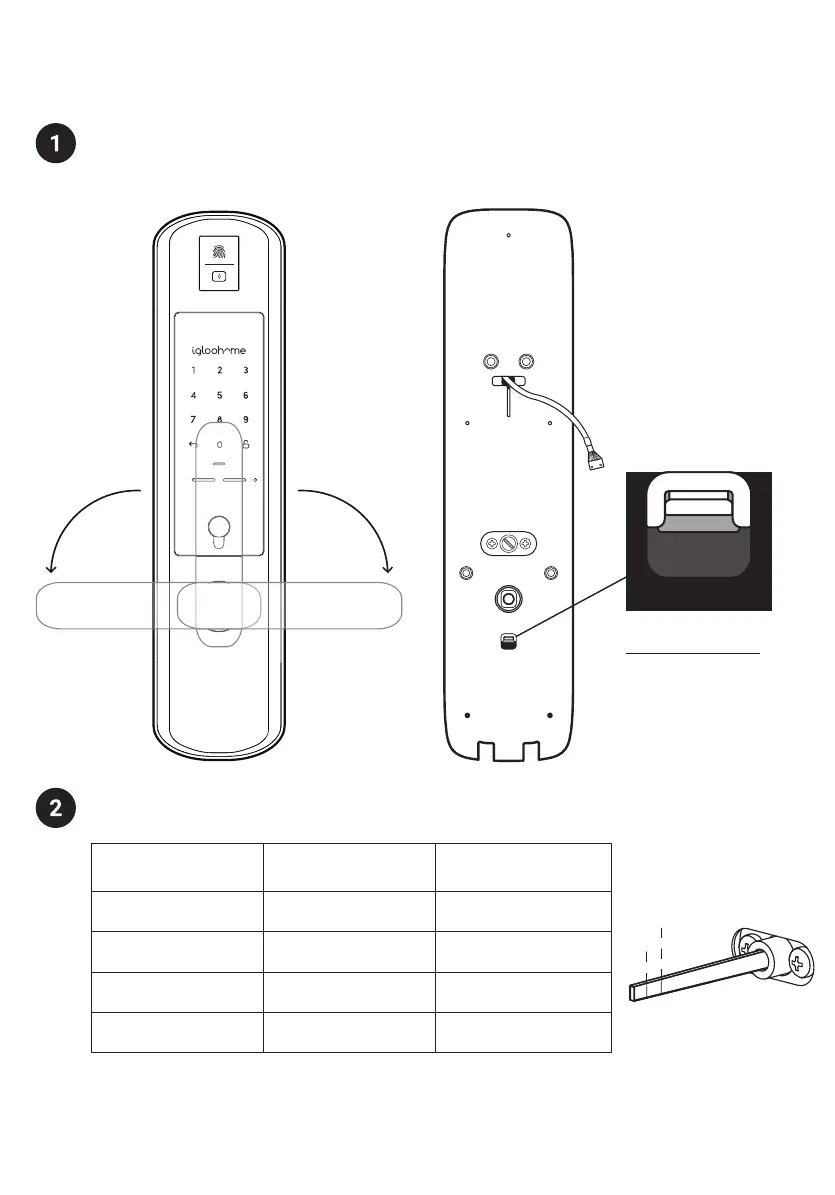

Installation Instructions
Determine the position of the door handle and pull until it clicks.
Door Thickness (mm) Notch to Snap
Will Multi-Function
Button turn?
40 - 45 10mm (from the end) Ye s
45 - 50 5mm (from the end) Yes
50 - 55 NA Yes
55 - 70 10mm (from the end)* No
In case you have positioned
the door handle wrongly,
release the handle catch
that can be found behind the
front / back lock assembly.
Releasing of Catch
Front Assembly Back of Front Assembly
For Left-
Handed
Door
For Right-
Handed
Door
Cut the key cylinder accordingly for dierent door thickness.
5mm
10mm
* For optimised experience, please cut the key cylinder 10mm from the end
