ADJUSTING YOUR ELECTRIC FAT BIKE

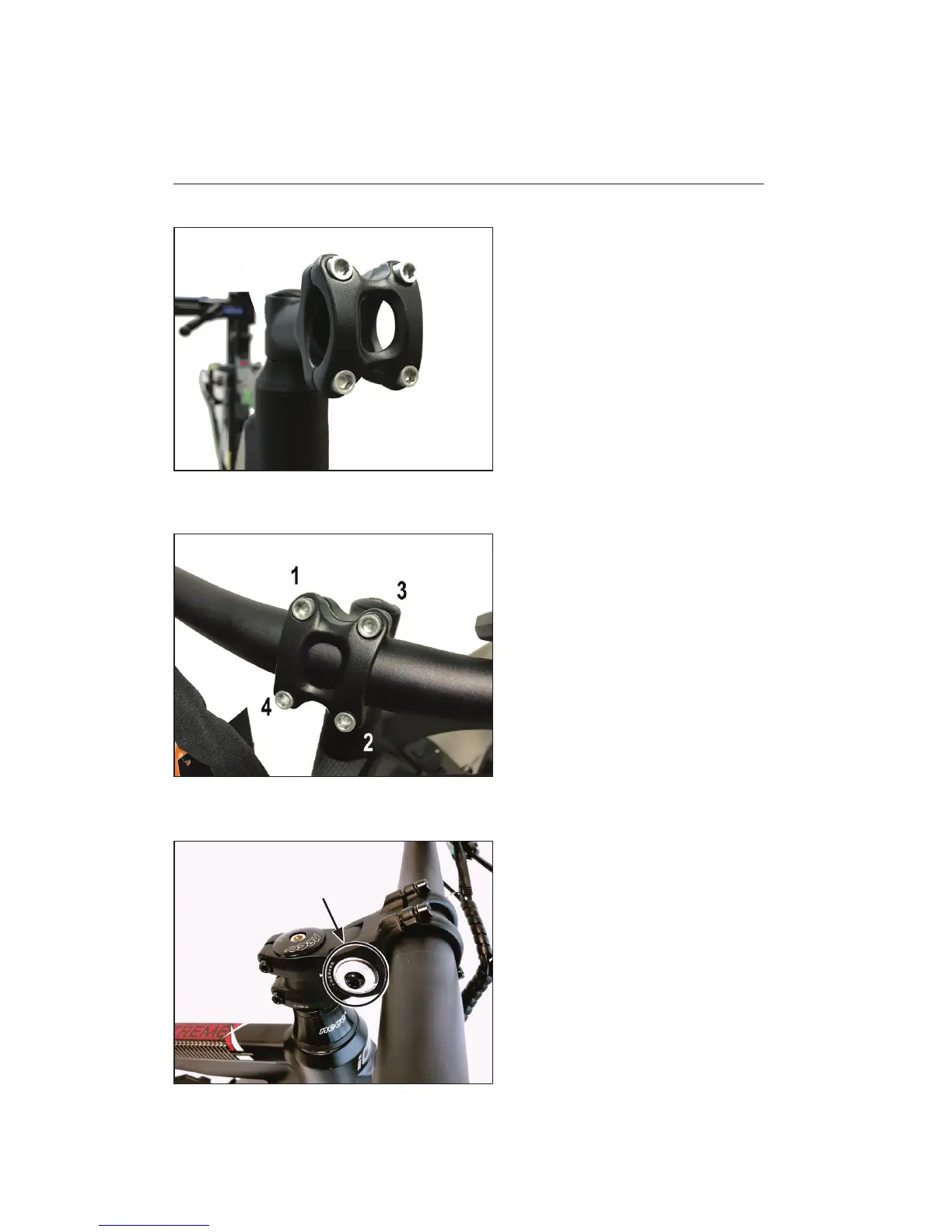

Fig. 19.2
Fig. 19.1
INSTALLING & ADJUSTING YOUR HANDLEBARS
Place handlebar in position on stem
and using 5mm allen key tighten
bolts as shown in gure 19.2 .
Make sure to attach all bolts one
at a time in order from 1 to 4 as
shown but don’t fully tighten
until all bolts are installed
Using the 5mm allen key take
off the 4 front bolts of the stem
as shown in gure 19.1
Fig. 19.3
The handlebar position can be
altered by adjusting the angle of the
stem. Using a 5mm allen key loosen
the bolt shown in gure 19.3
Move the stem to the desired
angle and then retighten the bolt
(tighten to 17Nm-18.5Nm)
