IGS Mega Play - Hardware; Hardware Connection

2
1. Hardware

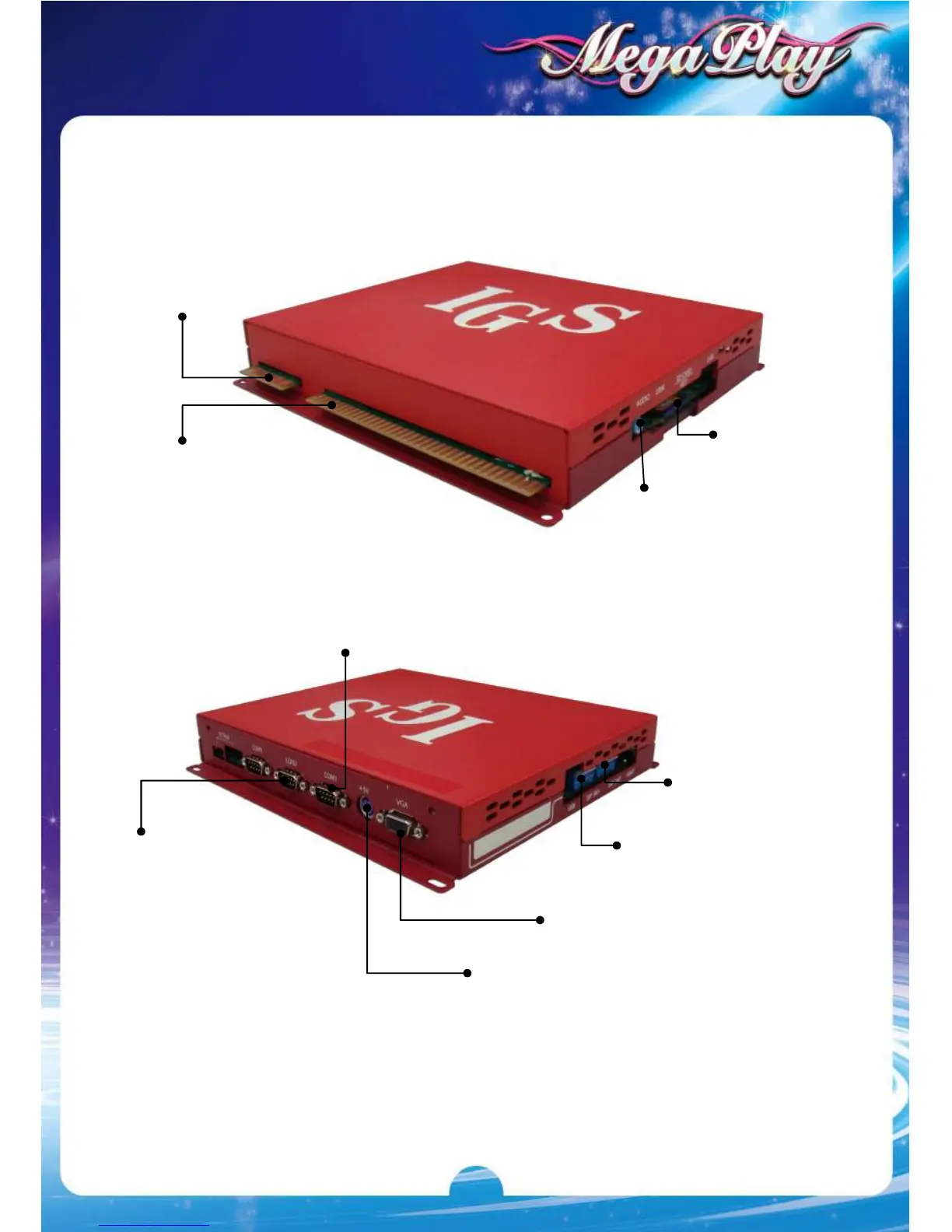

Hardware Connection
36-
Pin Connector
Audio Jack
SD Card Slot
10-
Pin Connector
A RS
-
232
Connects to optional Citizen printer/ticket dispenser.
* Use Belkin #F2L044 (serial printer cable/null modem) for Citizen printer.
B RS-232
Connects to Micro Touch
compatible touch screen
+5V
+5V Power output
DIP Sw 1
DIP Sw 2
VGA port
Connects to screen
