Connecting Touch Panel (Optional)
Type A

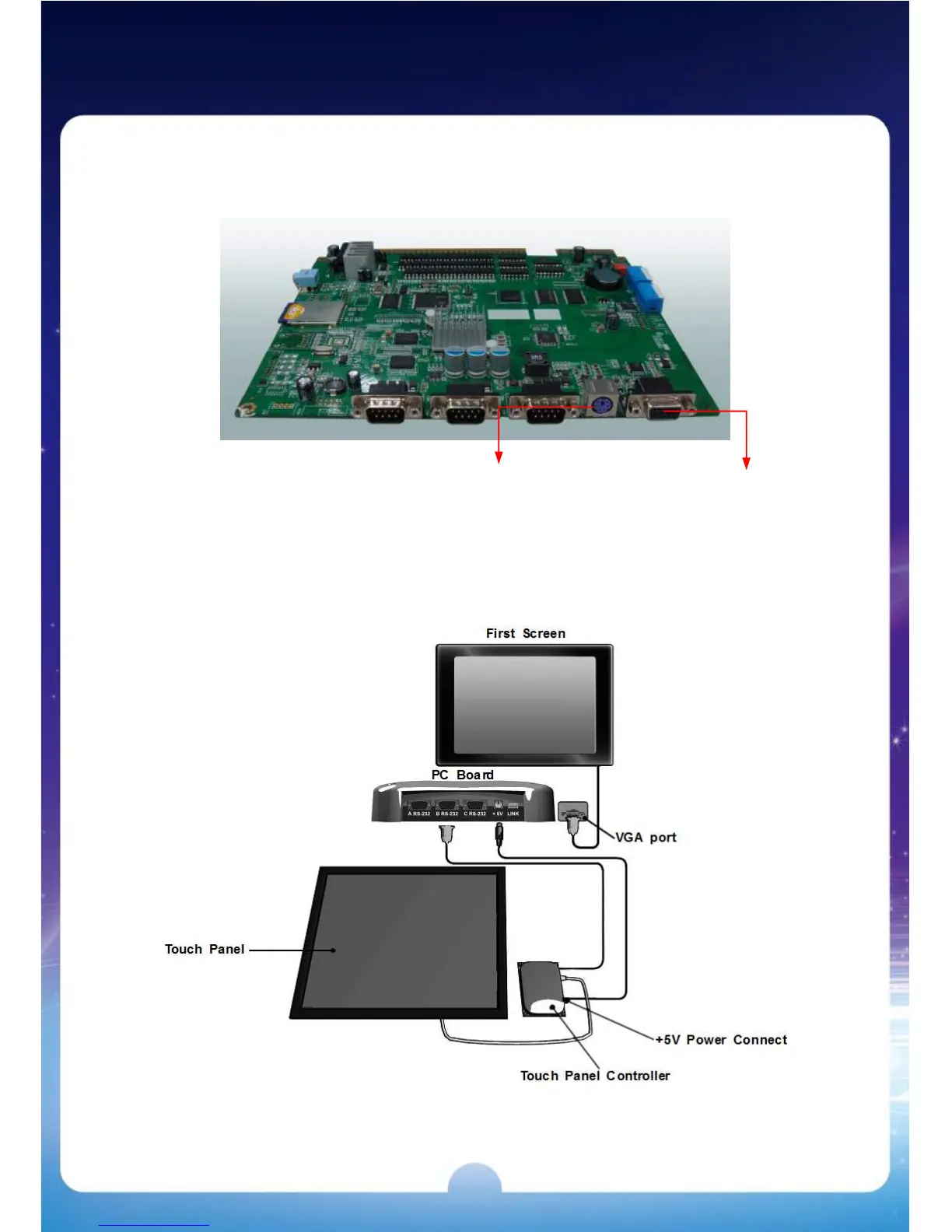

 Refer to the diagram below to connect the touch screen.
 After the connection, remember to adjust the Pin 1 of DIP SW1 to ON to enable
touch mode.
Power +5V Connector
(Female)
Monitor Connector
(15PIN Female)
