1. Hardware

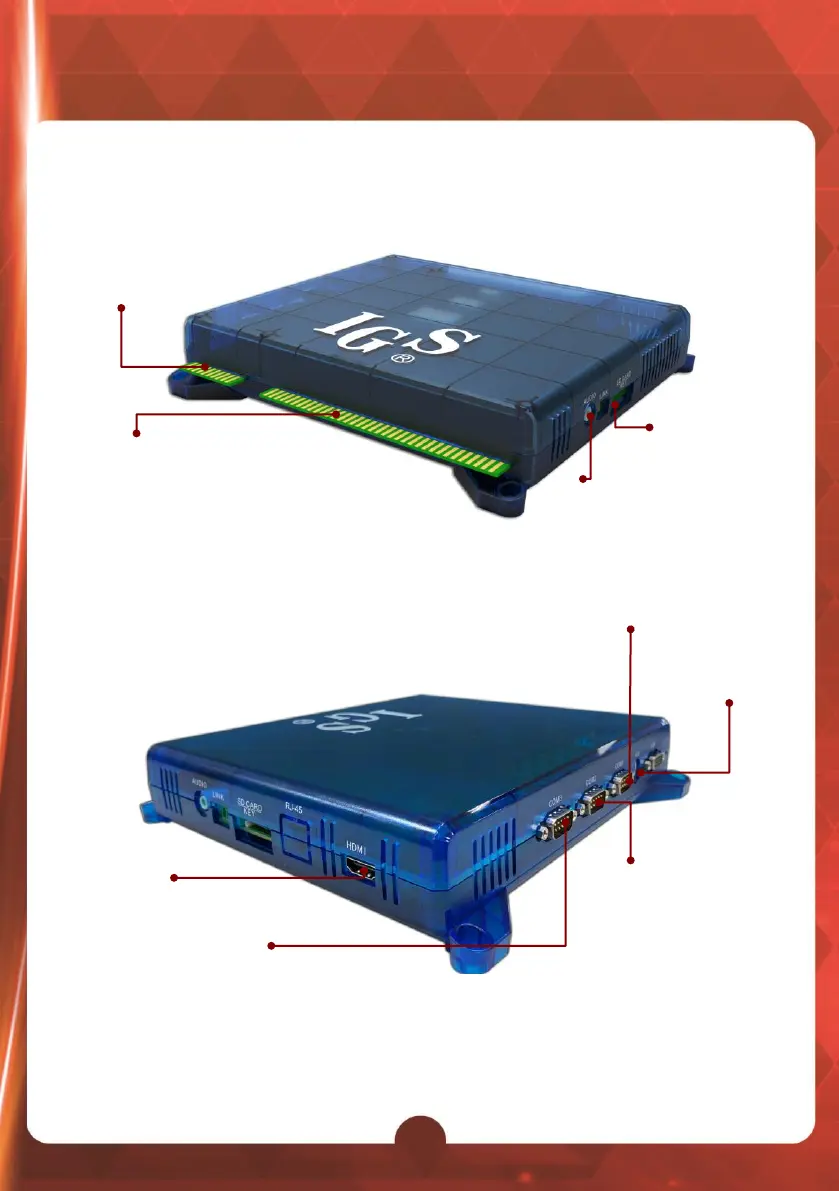

Hardware Connection
36-Pin Connector
Audio Jack
SD Card Slot
10-Pin Connector
COM 1. RS-232
Connects to printer/ticket dispenser.
* Use Belkin #F2L044 (serial printer cable/null modem) for printer.
COM 2. RS-232
Connects to Micro Touch
compatible touch screen
+5V
+5V Power output
HDMI port
Connects to screen
COM 3. RS-232
Connects to Bill Acceptor
