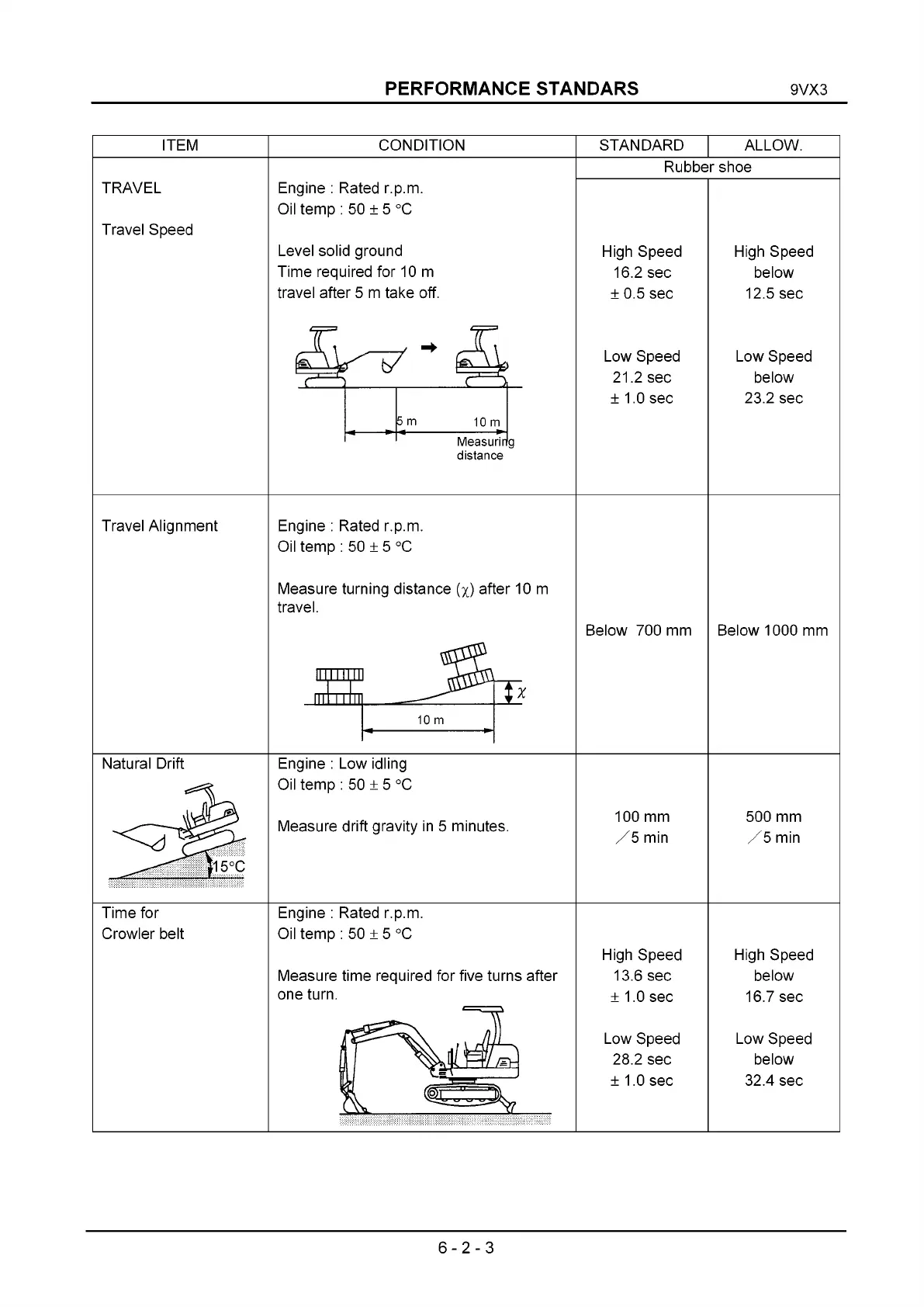

PERFORMANCE STANDARS 9VX3
ITEM CONDITION STANDARD ALLOW.
TRAVEL
Travel Speed
Rubber shoe
Engine: Rated r.p.m.
Oil temp : 50 ± 5 °C
Level solid ground
Time required for 10 m
travel after 5 m take off.
High Speed
16.2 sec
± 0.5 sec
Low Speed
2 1 . 2 sec
± 1 .0 sec
distance
High Speed
below
12.5 sec
Low Speed
below
23.2 sec
Travel Alignment Engine: Rated r.p.m.
Oil temp : 50 ± 5 °C
Measure turning distance (x) after 10 m
travel.
Below 700 mm Below 1000 mm
Natural Drift Engine: Low idling
Oil temp : 50 ± 5 °C
Measure drift gravity in 5 minutes.
1 0 0 mm
/ 5 min
500 mm
/ 5 min
Time for
Crawler belt
Engine: Rated r.p.m.
Oil temp : 50 ± 5 °C
Measure time required for five turns after
one turn.
High Speed
13.6 sec
± 1 .0 sec
Low Speed
28.2 sec
± 1 .0 sec
High Speed
below
16.7 sec
Low Speed
below
32.4 sec
6-2-3
