STRUCTURE AND FUNCTION
9VX3

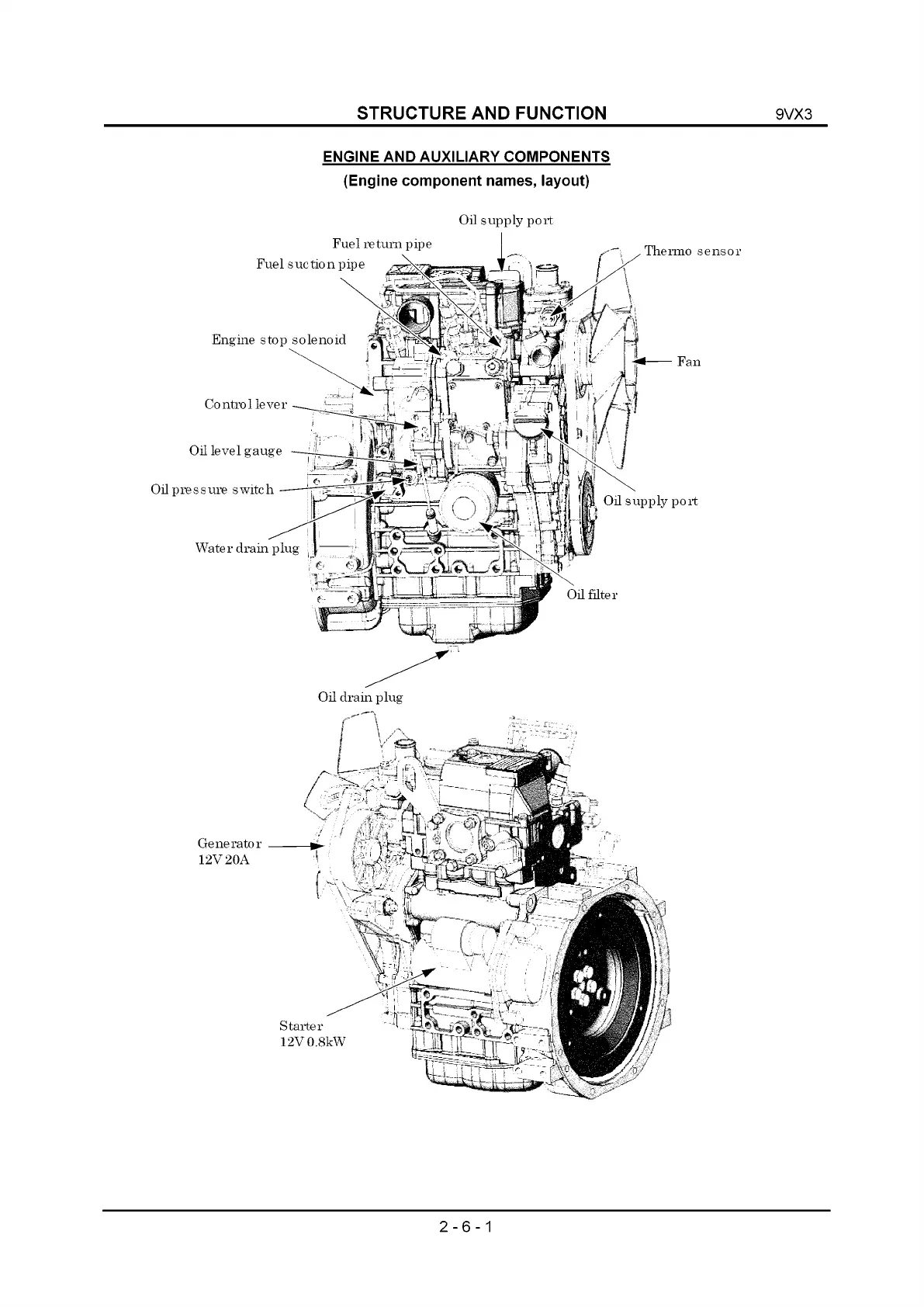

ENGINE AND AUXILIARY COMPONENTS
(Engine component names, layout)
ОД supply port
Fuel return pipe
Fuel suetion pipe
, Thermo sensor
Engine stop solenoid
A
■ Fan
Contro 1 lever ■
ОД level gauge -
ОД pressure switch —
Water drain plug
---V" ''
Oil supply port
G\
Oil drain plug
Generator
12V 20A
Starter
12V 0.8kW
2-6-1
