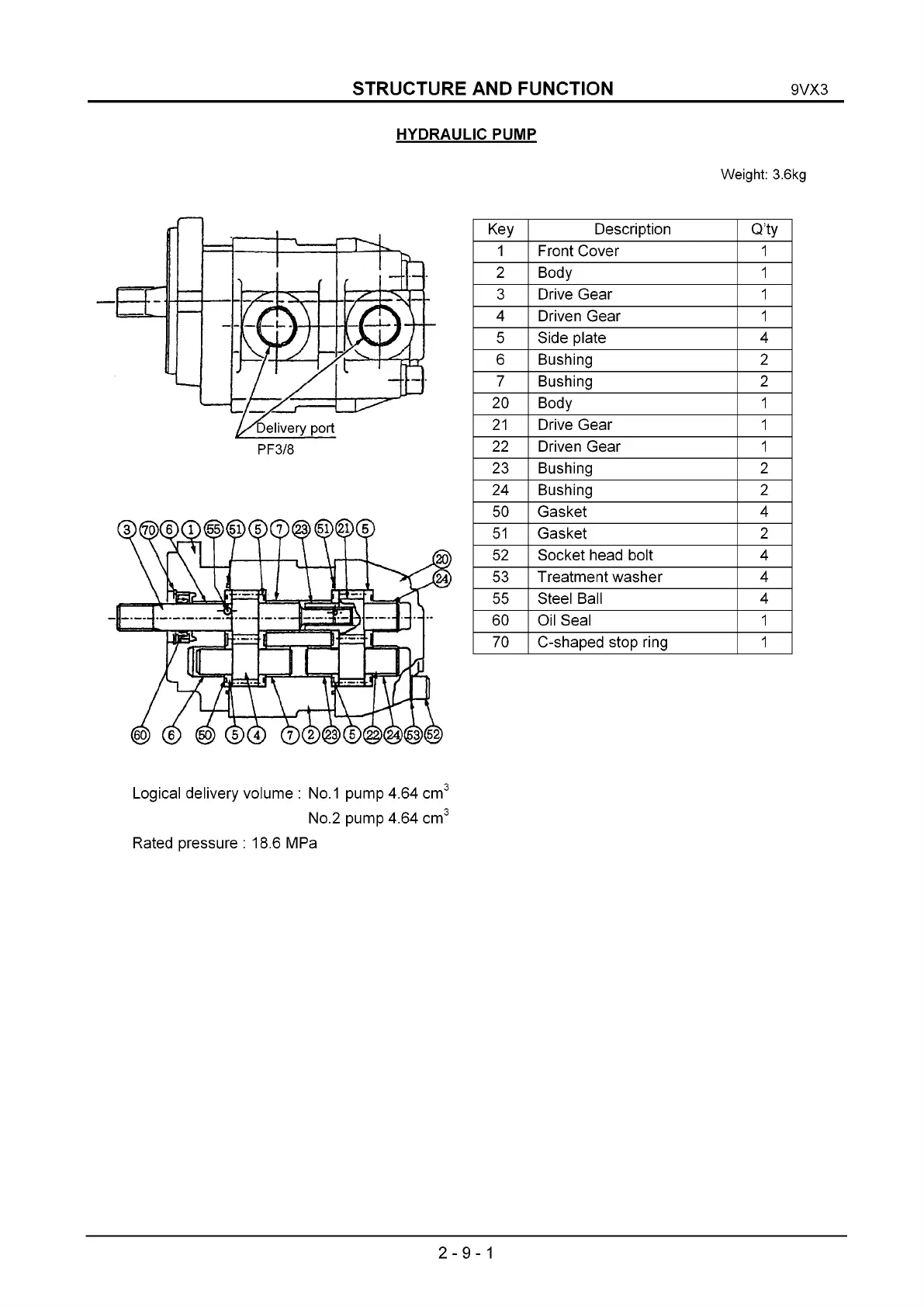

STRUCTURE AND FUNCTION 9VX3
HYDRAULIC PUMP
Weight: 3.6kg
Key Description
Q’ty
1
Front Cover
1
2
Body
1
3 Drive Gear 1
4 Driven Gear 1
5 Side plate
4
6 Bushing 2
7 Bushing 2
2 0 Body
1
21 Drive Gear 1
2 2 Driven Gear 1
23
Bushing 2
24 Bushing 2
50 Gasket
4
51 Gasket
2
52 Socket head bolt 4
53
Treatment washer 4
55 Steel Ball
4
60 Oil Seal 1
70 С-shaped stop ring
1
Logical delivery volume : No.1 pump 4.64 cm3
No.2 pump 4.64 cm3
Rated pressure : 18.6 MPa
