IHI 9VX3 - Page 31

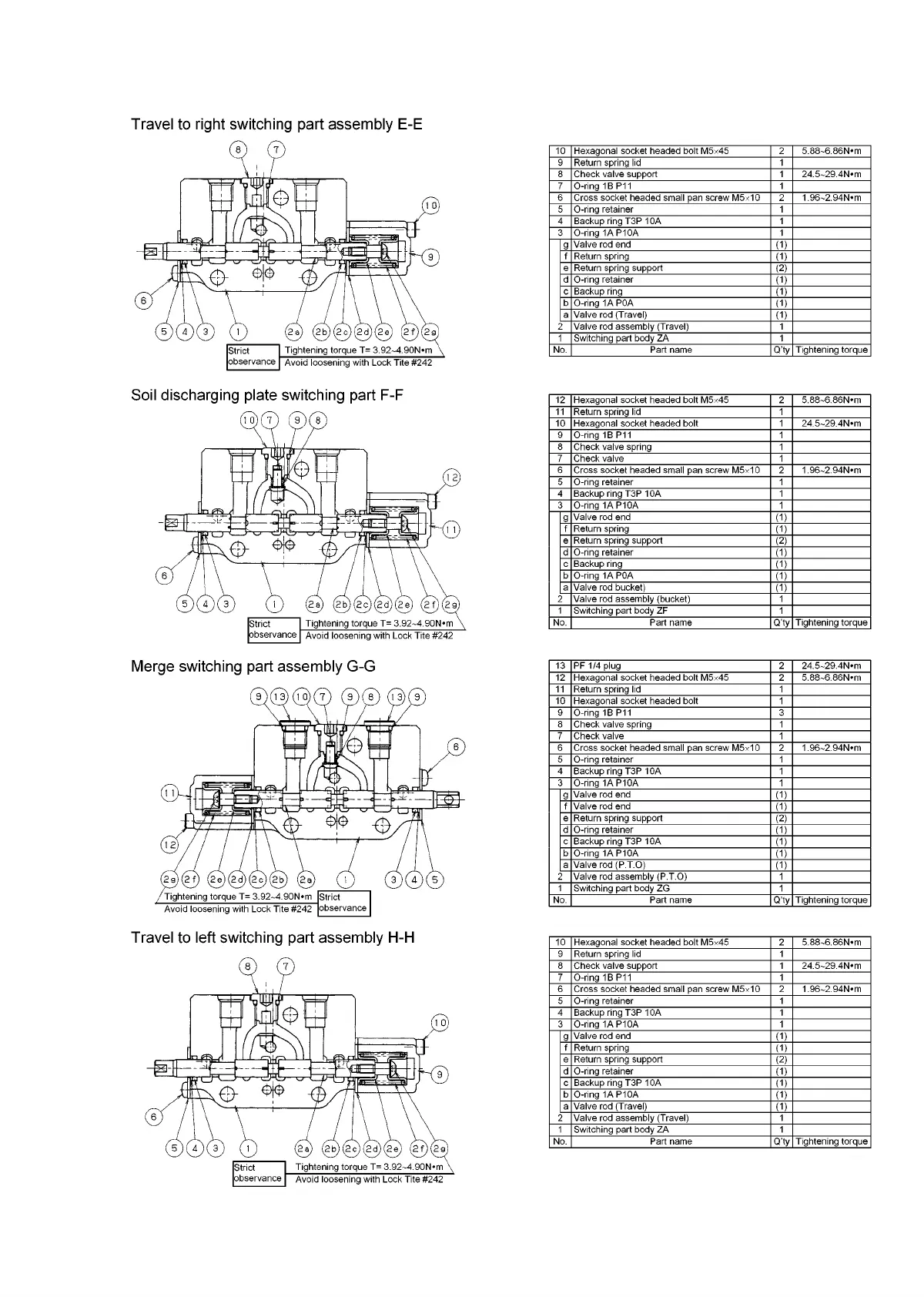

Travel to right switching part assembly E-E
Soil discharging plate switching part F-F
Merge switching part assembly G-G
Travel to left switching part assembly H-H
10 Hexagonal socket headed bolt M5x45 2 5.88~6.86N*m
9 Return spring lid 1
8 Check valve support 1 24.5~29.4N*m
7 O-ring 1В P11 1
6 Cross socket headed small pan screw M5x10
1.96~2.94N-m
5 О-ring retainer 1
4 Backup ring ТЗР 10A 1
3 О-ring 1A P10A 1
g
Valve rod end
(1)
f Return spring
(1)
e Return spring support
(2)
d О-ring retainer
(1)
с Backup ring
(1)
b O-ring 1A POA
(1)
a Valve rod (Travel)
(1)
>
Valve rod assembly (Travel) 1
1
Switching part body ZA 1
No. Part name Q’ty Tightening torque
12 Hexagonal socket headed bolt M5x45 2 5.88~6.86N*m
11 Return spring lid
1
10 Hexagonal socket headed bolt 1 24.5~29.4N*m
9 O-ring 1В P11 1
8 Check valve spring
1
7 Check valve 1
6 Cross socket headed small pan screw M5x10
1.96~2.94N-m
5 O-ring retainer
1
4 Backup ring ТЗР 10A 1
3 O-ring 1A P10A 1
g
Valve rod end
(1)
f Return spring
(1)
e Return spring support
(2)
d O-ring retainer
(1)
с Backup ring
(1)
b O-ring 1A POA
(1)
a Valve rod bucket)
(1)
I
Valve rod assembly (bucket) 1
1
Switching part body ZF 1
No. Part name Q’ty Tightening torque
13 PF 1/4 plug 2 24.5~29.4N*m
12 Hexagonal socket headed bolt M5x45 2 5.88~6.86N*m
11 Return spring lid 1
10 Hexagonal socket headed bolt 1
9 O-ring 1В P11
8 Check valve spring 1
7 Check valve 1
6 Cross socket headed small pan screw M5x10
1.96~2.94N-m
5 O-ring retainer 1
4 Backup ring ТЗР 10A
1
3 O-ring 1A P10A
1
g
Valve rod end
(1)
f Valve rod end
(1)
e Return spring support
(2)
d O-ring retainer
(1)
с Backup ring ТЗР 10A
(1)
b O-ring 1A P10A
(1)
a Valve rod (P.T.O)
(1)
I
Valve rod assembly (P.T.O)
1
1
Switching part body ZG
1
No. Part name Q’ty Tightening torque
10 Hexagonal socket headed bolt M5x45 2 5.88~6.86N*m
9 Return spring lid 1
8 Check valve support 1 24.5~29.4N*m
7 O-ring 1B P11
1
6 Cross socket headed small pan screw M5x10
1.96~2.94N«m
5 O-ring retainer 1
4 Backup ring ТЗР 10A
1
3 O-ring 1AP10A 1
g
Valve rod end
(1)
f
Return spring
(1)
e Return spring support
(2)
d O-ring retainer
(1)
с Backup ring ТЗР 10A
(1)
b O-ring 1AP10A
(1)
a Valve rod (Travel)
(1)
>
Valve rod assembly (Travel)
1
1 Switching part body ZA 1
No. Part name Q’ty Tightening torque
