Dust seal ■

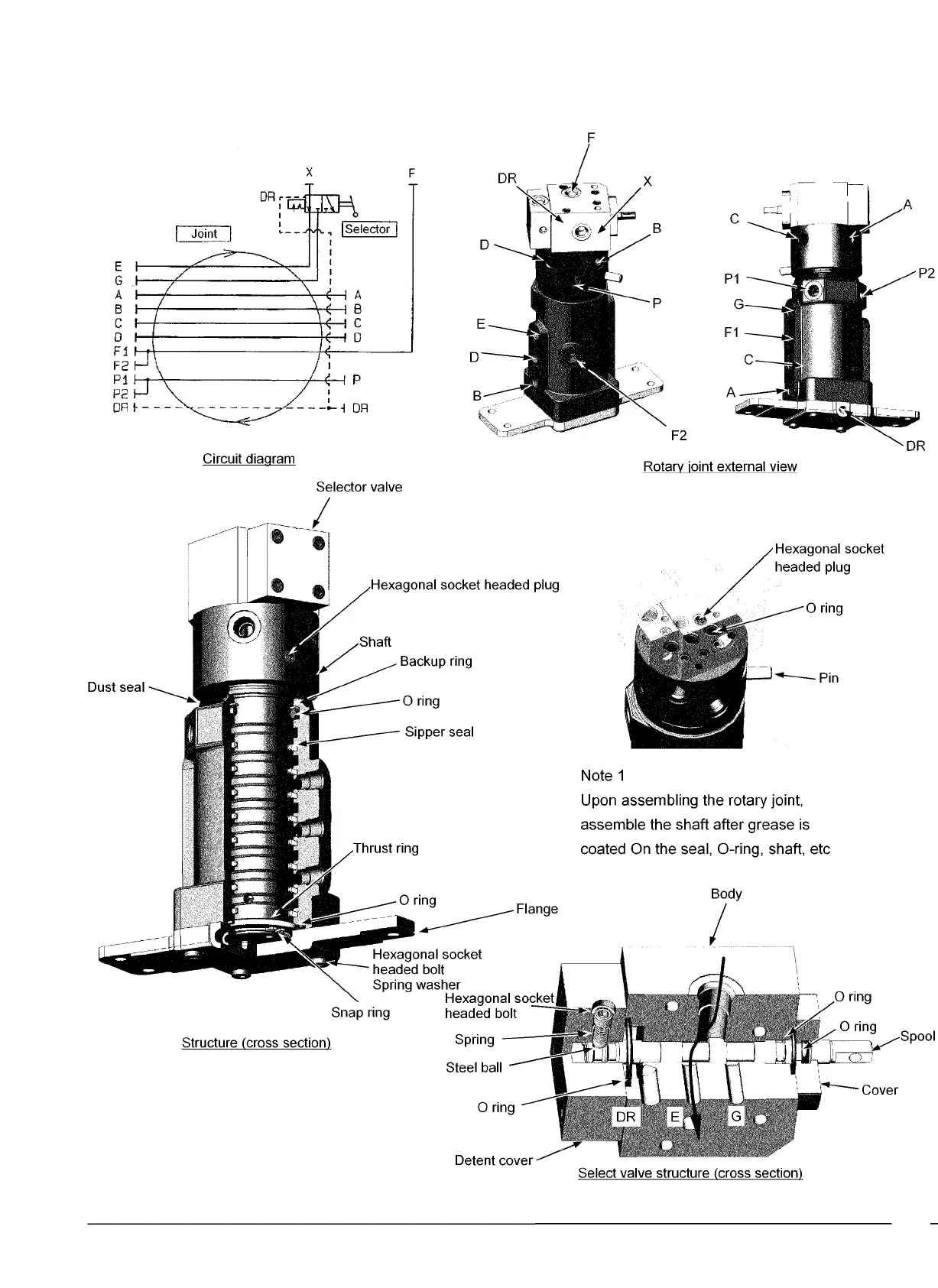

Circuit diagram
Rotary joint external view
Selector valve
/
Hexagonal socket headed plug
Backup ring
Hexagonal socket
headed plug
О ring
■ Pin
О ring
Sipper seal
Structure (cross section)
-Flange
Hexagonal socket
■ headed bolt
Spring washer I
Hexagonal socket
Snap ring headed bolt
Spring
Steel ball
О ring
Detent cover
Note 1
Upon assembling the rotary joint,
assemble the shaft after grease is
coated On the seal, O-ring, shaft, etc
Body
p ring
. О ring
■ Cover
¥
Select valve structure (cross section)
