STRUCTURE AND FUNCTION 9VX3
LOWER ROLLER ASS’Y
Weight: 5.3kg

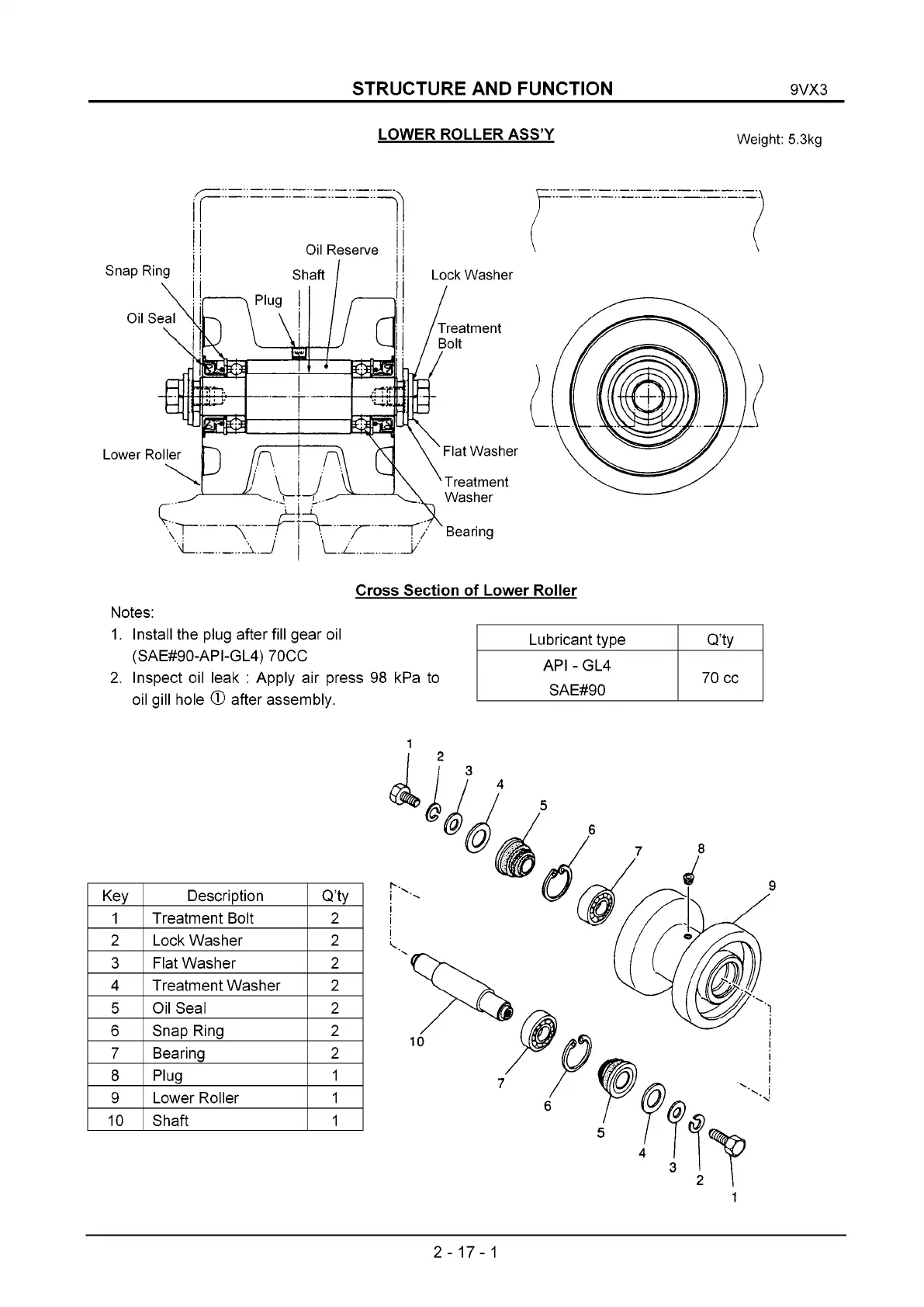

Cross Section of Lower Roller
Notes:
1. Install the plug after fill gear oil
(SAE#90-API-GL4) 70CC
2. Inspect oil leak : Apply air press 98 kPa to
oil gill hole Ф after assembly.
Lubricant type
Q’ty
API - GL4
SAE#90
70 cc
Key
Description
Q’ty
1
Treatment Bolt
2
2 Lock Washer 2
3 Flat Washer 2
4
Treatment Washer
2
5 Oil Seal 2
6
Snap Ring
2
7 Bearing 2
8 Plug
1
9 Lower Roller 1
10 Shaft 1
