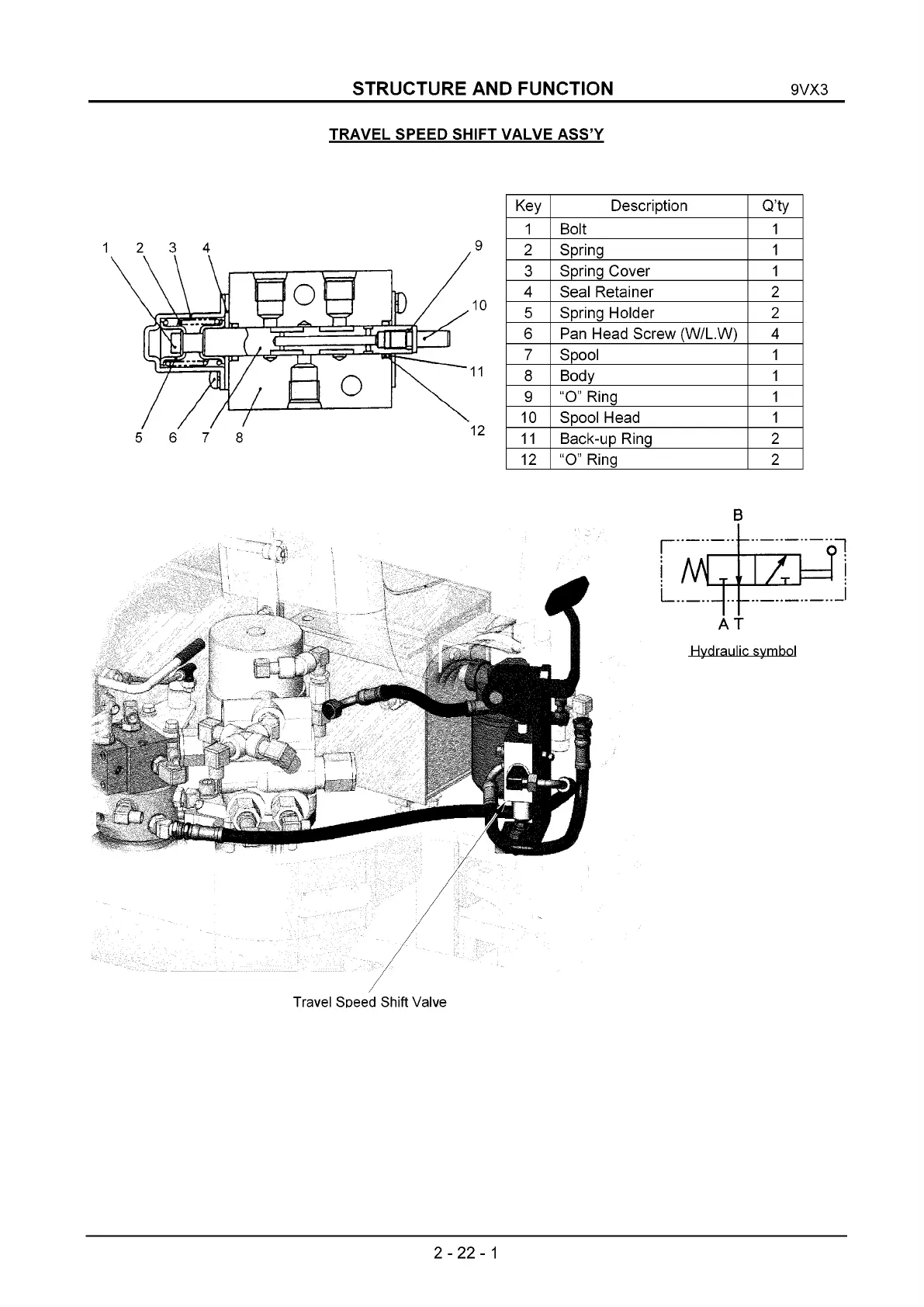

TRAVEL SPEED SHIFT VALVE ASS’Y
Key Description Q’ty
1 Bolt 1
2 Spring 1
3
Spring Cover 1
4 Seal Retainer 2
5 Spring Holder 2
6 Pan Head Screw (W/L.W) 4
7
Spool
1
8 Body
1
9 “0 ” Ring 1
10 Spool Head 1
11
Back-up Ring
2
12
“0 ” Ring
2
Travel Speed Shift Valve
