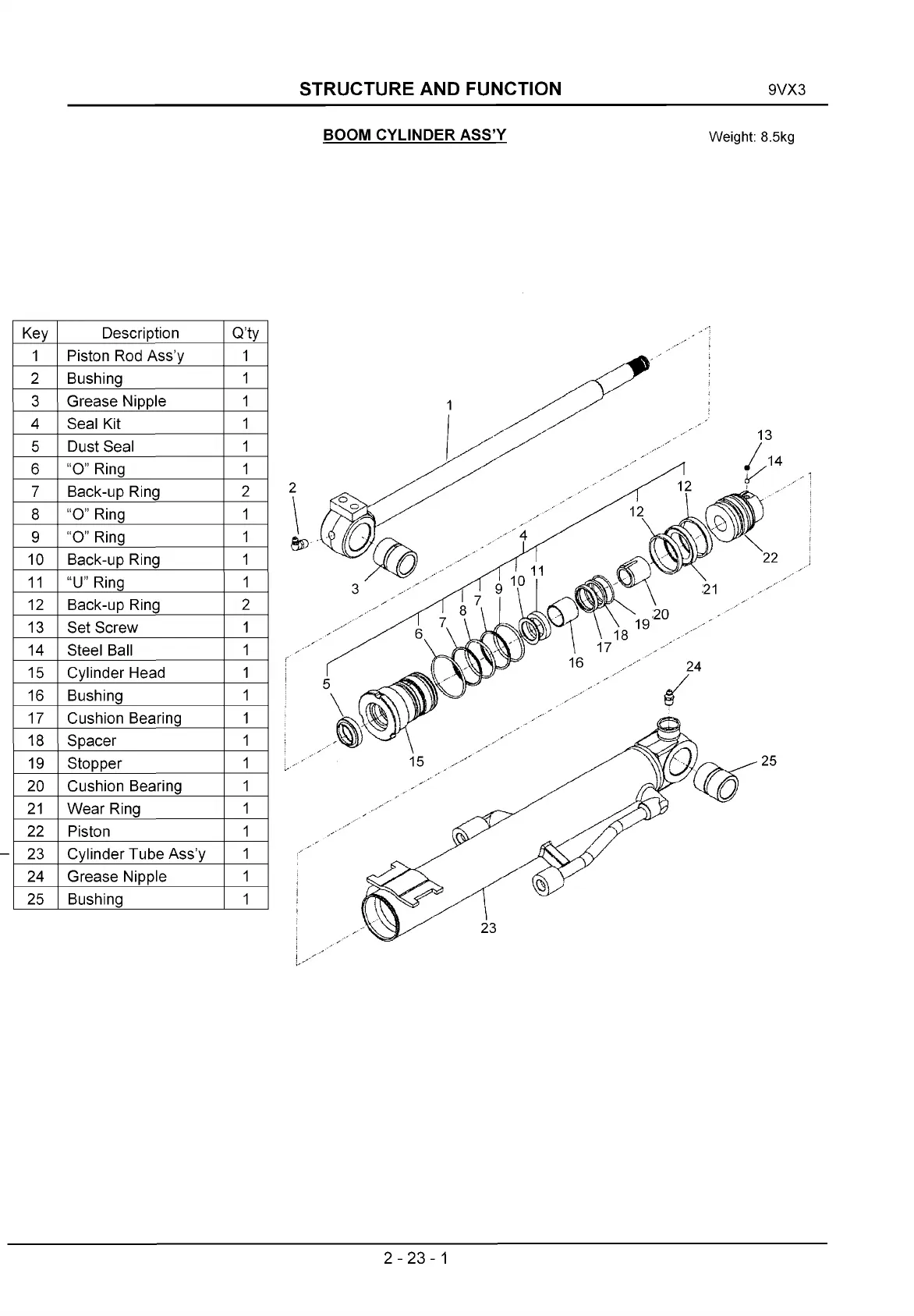

IHI 9VX3 - Page 46

Key
Description
Q’ty
1
Piston Rod Ass’y
1
2 Bushing
1
3
Grease Nipple
1
4 Seal Kit
1
5 Dust Seal
1
6
“0 ” Ring
1
7 Back-up Ring
8
“0 ” Ring
1
9 “0 ” Ring
1
10
Back-up Ring
1
11 “U” Ring
1
12 Back-up Ring
13
Set Screw
1
14 Steel Ball
1
15
Cylinder Head 1
16 Bushing
1
17 Cushion Bearing 1
18
Spacer 1
19 Stopper
1
2 0
Cushion Bearing 1
21 Wear Ring
1
2 2 Piston 1
23 Cylinder Tube Ass’y
1
24 Grease Nipple
1
25
Bushing 1
