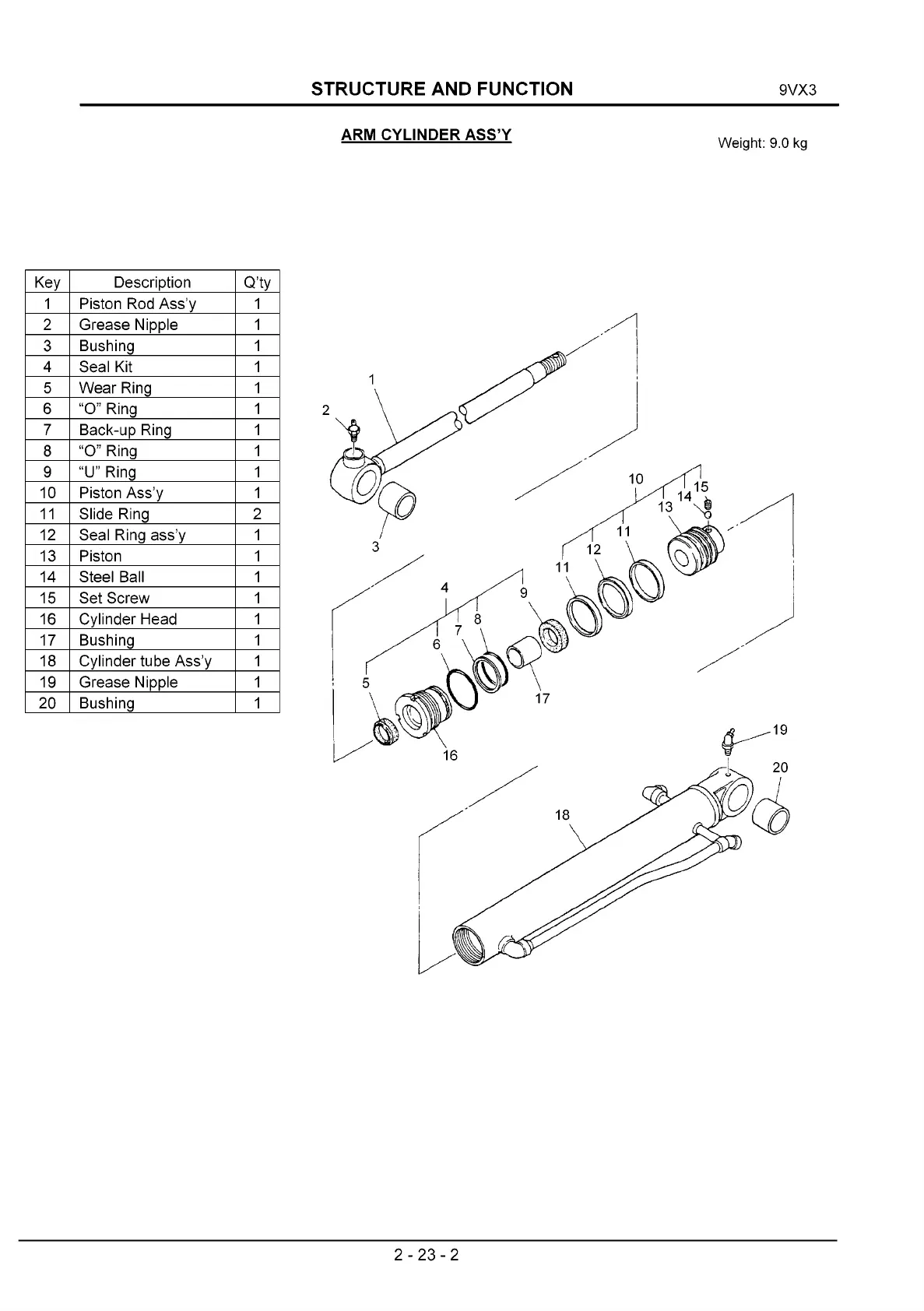

IHI 9VX3 - Page 48

Key
Description
Q’ty
1 Piston Rod Ass’y 1
2 Grease Nipple 1
3
Bushing 1
4
Seal Kit
1
5 Wear Ring 1
6 “0 ” Ring 1
7
Back-up Ring
1
8
“0 ” Ring
1
9 “U” Ring 1
10 Piston Ass’y 1
11
Slide Ring
12
Seal Ring ass’y
1
13 Piston 1
14 Steel Ball 1
15
Set Screw
1
16
Cylinder Head
1
17 Bushing 1
18 Cylinder tube Ass’y 1
19 Grease Nipple
1
2 0
Bushing 1
