STRUCTURE AND FUNCTION
9VX3

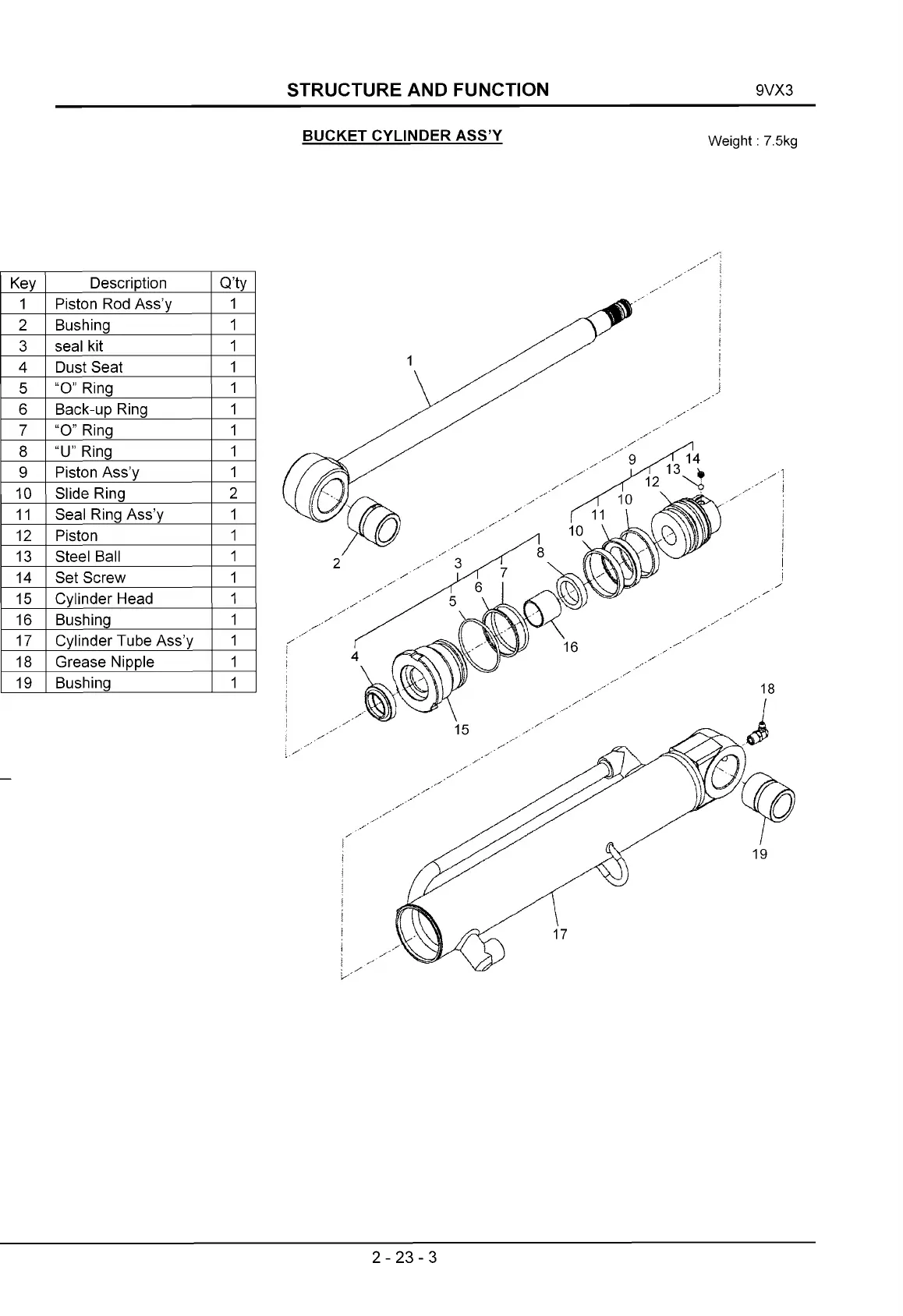

BUCKET CYLINDER ASS’Y Weight. 7 5kg
Key
Description Q’ty
1 Piston Rod Ass’y
1
2
Bushing 1
3 seal kit
1
4 Dust Seat
1
5
“0 ” Ring
1
6
Back-up Ring
1
7
“0 ” Ring
1
8
“U” Ring
1
9
Piston Ass’y
1
10
Slide Ring
11
Seal Ring Ass’y
1
12 Piston
1
13
Steel Ball
1
14 Set Screw
1
15
Cylinder Head
1
16
Bushing
1
17 Cylinder Tube Ass’y
1
18 Grease Nipple
1
19
Bushing 1
2- 23-3
