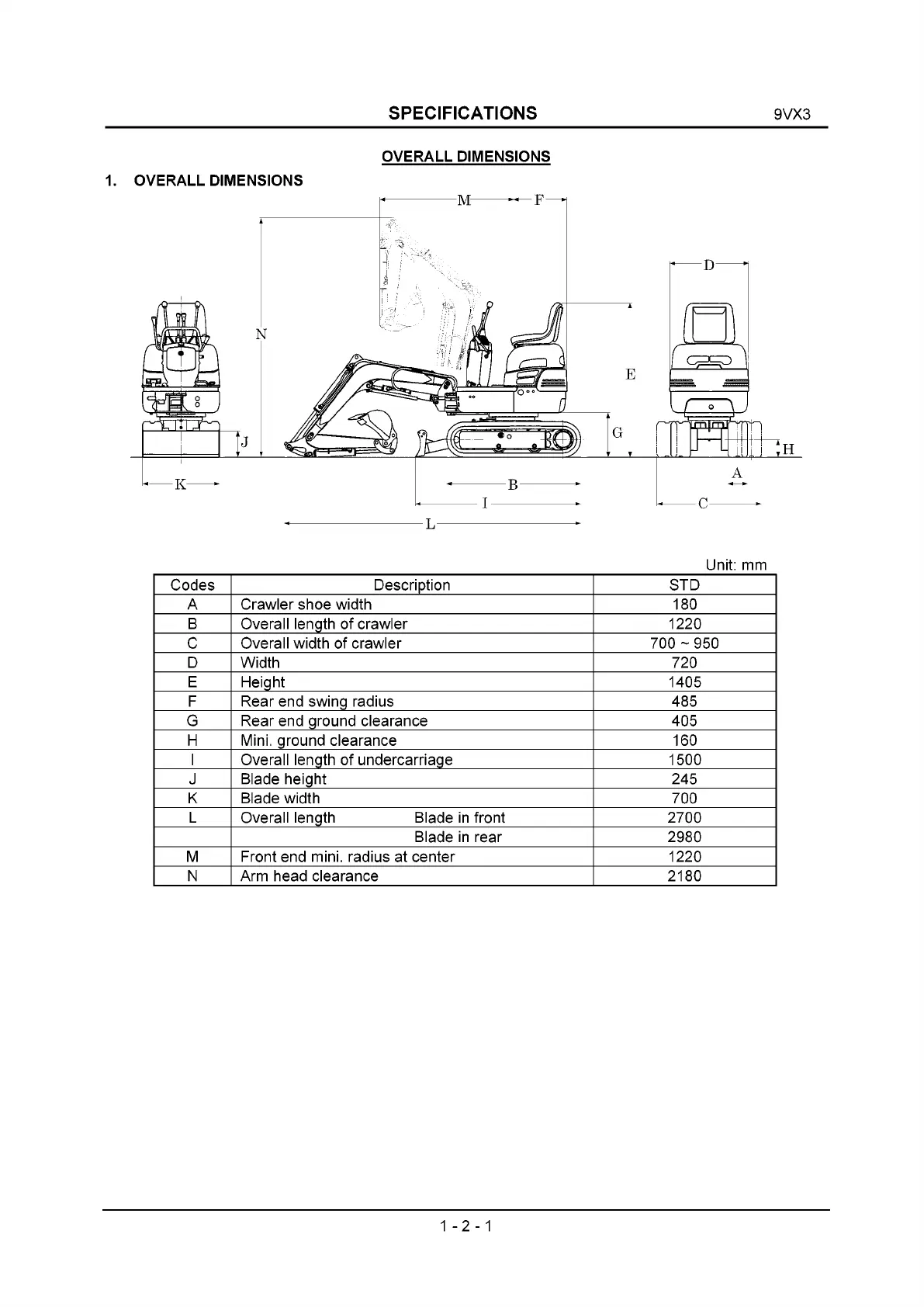

SPECIFICATIONS
9VX3
OVERALL DIMENSIONS
1. OVERALL DIMENSIONS
Unit: mm
Codes
Description STD
A Crawler shoe width 180
В
Overall length of crawler
1 2 2 0
С
Overall width of crawler
700 ~ 950
D Width
720
E
Height 1405
F Rear end swing radius 485
G Rear end ground clearance 405
H Mini, ground clearance 160
I Overall length of undercarriage 1500
J Blade height 245
К
Blade width
700
L
Overall length Blade in front
2700
Blade in rear
2980
M
Front end mini, radius at center
1 2 2 0
N Arm head clearance 2180
1-2-1
