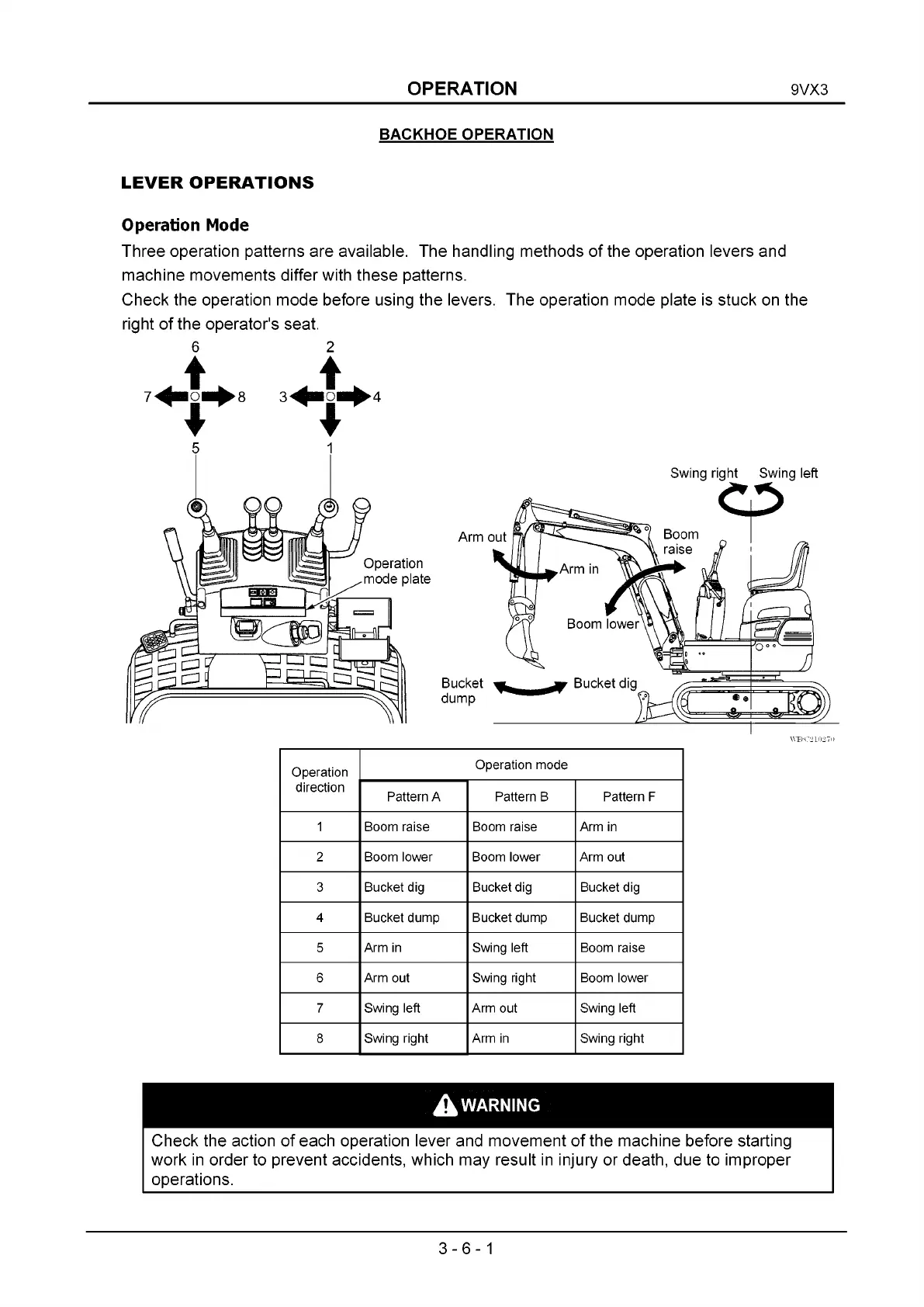

OPERATION 9VX3
BACKHOE OPERATION
LEVER OPERATIONS
Operation Mode
Three operation patterns are available. The handling methods of the operation levers and
machine movements differ with these patterns.
Check the operation mode before using the levers. The operation mode plate is stuck on the
right of the operator's seat.
Operation
direction
Operation mode
Pattern A Pattern В Pattern F
1 Boom raise Boom raise
Arm in
2 Boom lower Boom lower Arm out
3 Bucket dig Bucket dig Bucket dig
4
Bucket dump Bucket dump Bucket dump
5
Arm in Swing left Boom raise
6 Arm out Swing right Boom lower
7 Swing left Arm out Swing left
8
Swing right Arm in Swing right
A WARNING
Check the action of each operation lever and movement of the machine before starting
work in order to prevent accidents, which may result in injury or death, due to improper
operations.
3-6-1
