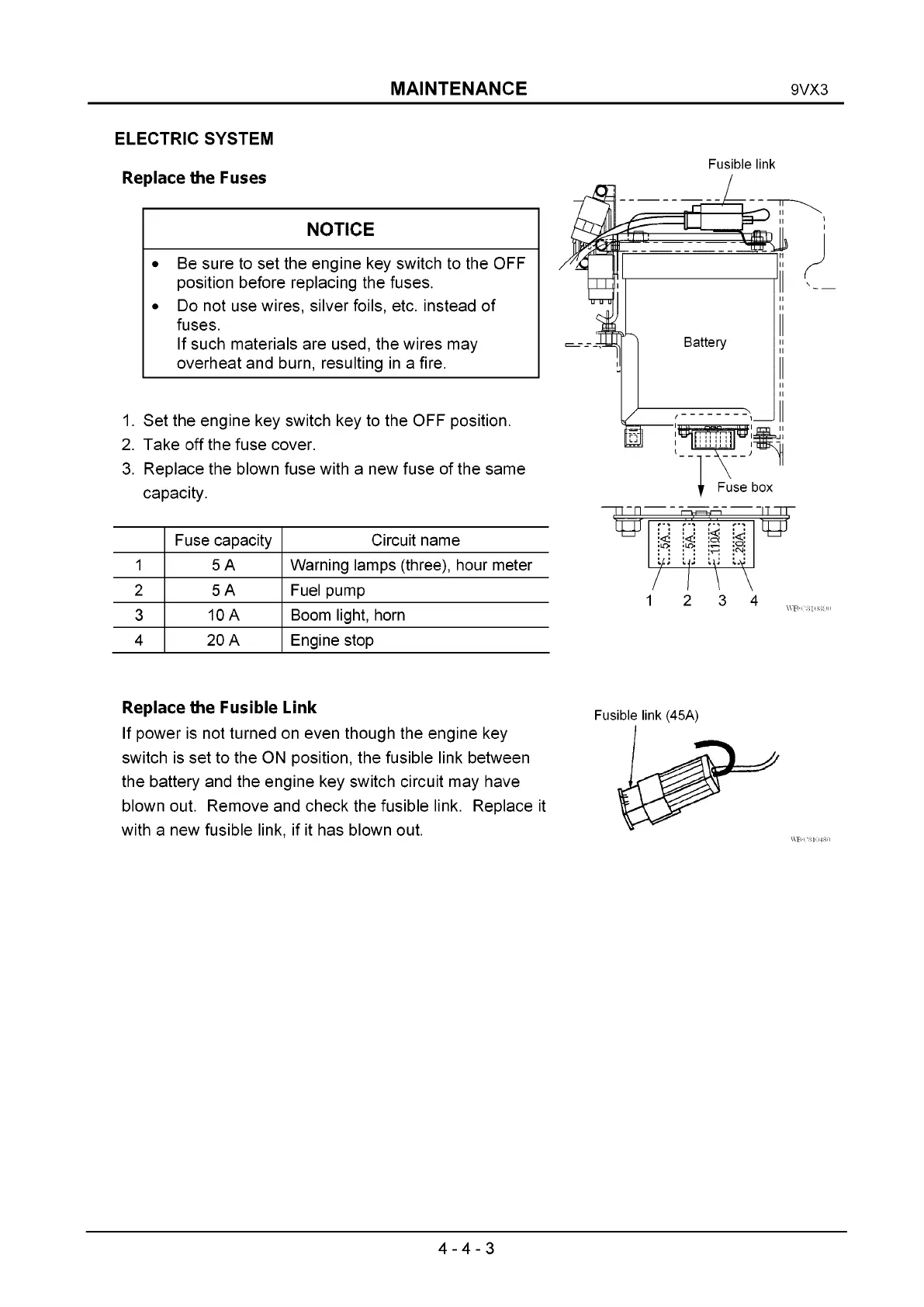

MAINTENANCE 9VX3
ELECTRIC SYSTEM
Replace the Fuses
NOTICE
• Be sure to set the engine key switch to the OFF
position before replacing the fuses.
• Do not use wires, silver foils, etc. instead of
fuses.
If such materials are used, the wires may
overheat and burn, resulting in a fire.
1. Set the engine key switch key to the OFF position.
2. Take off the fuse cover.
3. Replace the blown fuse with a new fuse of the same
capacity.
Fuse capacity Circuit name
1 5 A Warning lamps (three), hour meter
2 5 A
Fuel pump
3
10 A Boom light, horn
4 20 A Engine stop
Fusible link
Replace the Fusible Link
If power is not turned on even though the engine key
switch is set to the ON position, the fusible link between
the battery and the engine key switch circuit may have
blown out. Remove and check the fusible link. Replace it
with a new fusible link, if it has blown out.
Fusible link (45A)
4-4-3
