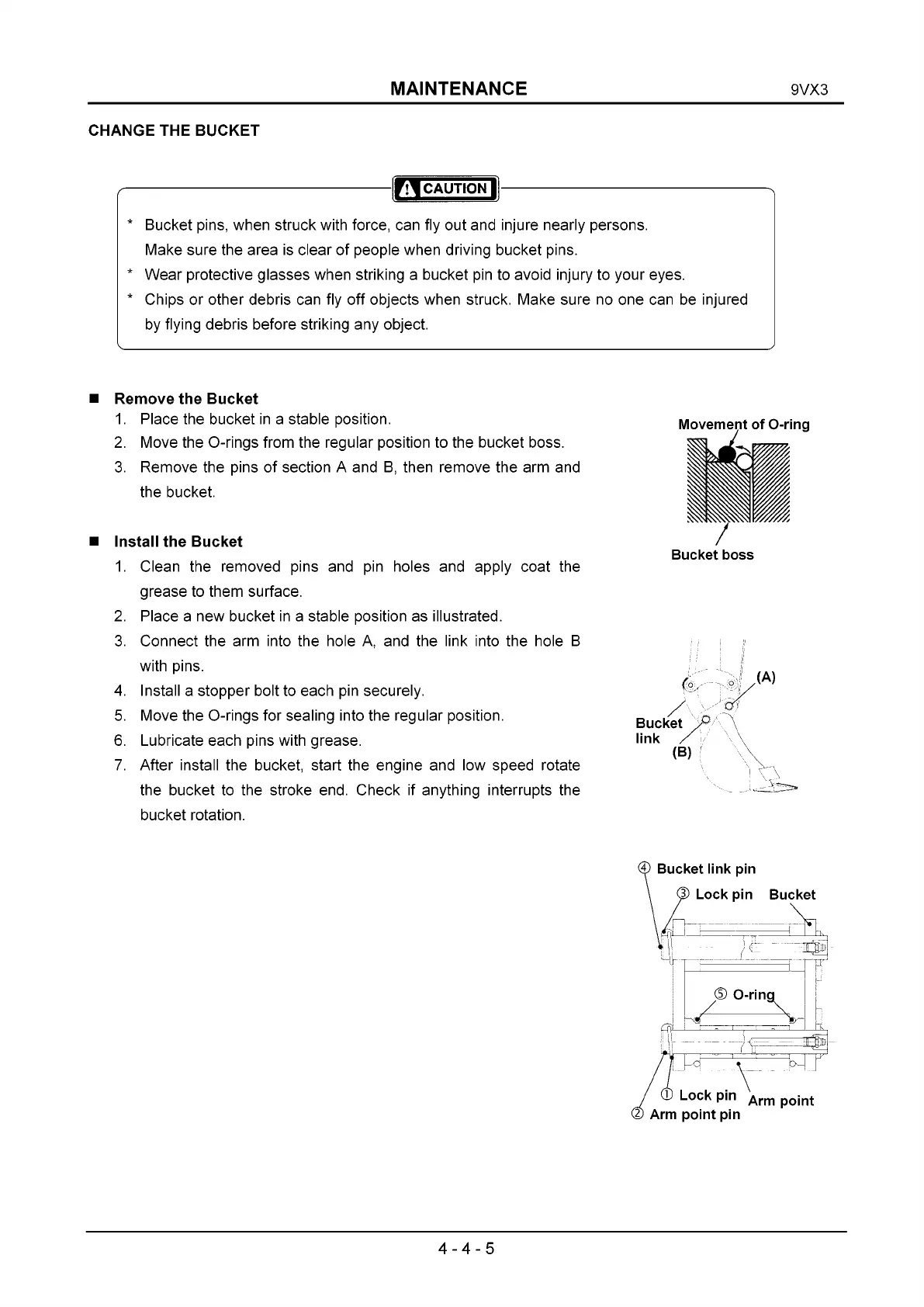

MAINTENANCE 9VX3
CHANGE THE BUCKET
--------------------
И CAUTION |1
---------------------------------------------------------
* Bucket pins, when struck with force, can fly out and injure nearly persons.
Make sure the area is clear of people when driving bucket pins.
* Wear protective glasses when striking a bucket pin to avoid injury to your eyes.
* Chips or other debris can fly off objects when struck. Make sure no one can be injured
by flying debris before striking any object.
Remove the Bucket
1. Place the bucket in a stable position.
2. Move the О-rings from the regular position to the bucket boss.
3. Remove the pins of section A and B, then remove the arm and
the bucket.
Install the Bucket
1. Clean the removed pins and pin holes and apply coat the
grease to them surface.
2. Place a new bucket in a stable position as illustrated.
3. Connect the arm into the hole A, and the link into the hole В
with pins.
4. Install a stopper bolt to each pin securely.
5. Move the О-rings for sealing into the regular position.
6 . Lubricate each pins with grease.
7. After install the bucket, start the engine and low speed rotate
the bucket to the stroke end. Check if anything interrupts the
bucket rotation.
,(A)
Bucket
link /
(B)
(?) Bucket link pin
(D Lock pin Bucket
O-ring
\
© Lock pin Arm p0int
© Arm point pin
4-4-5
