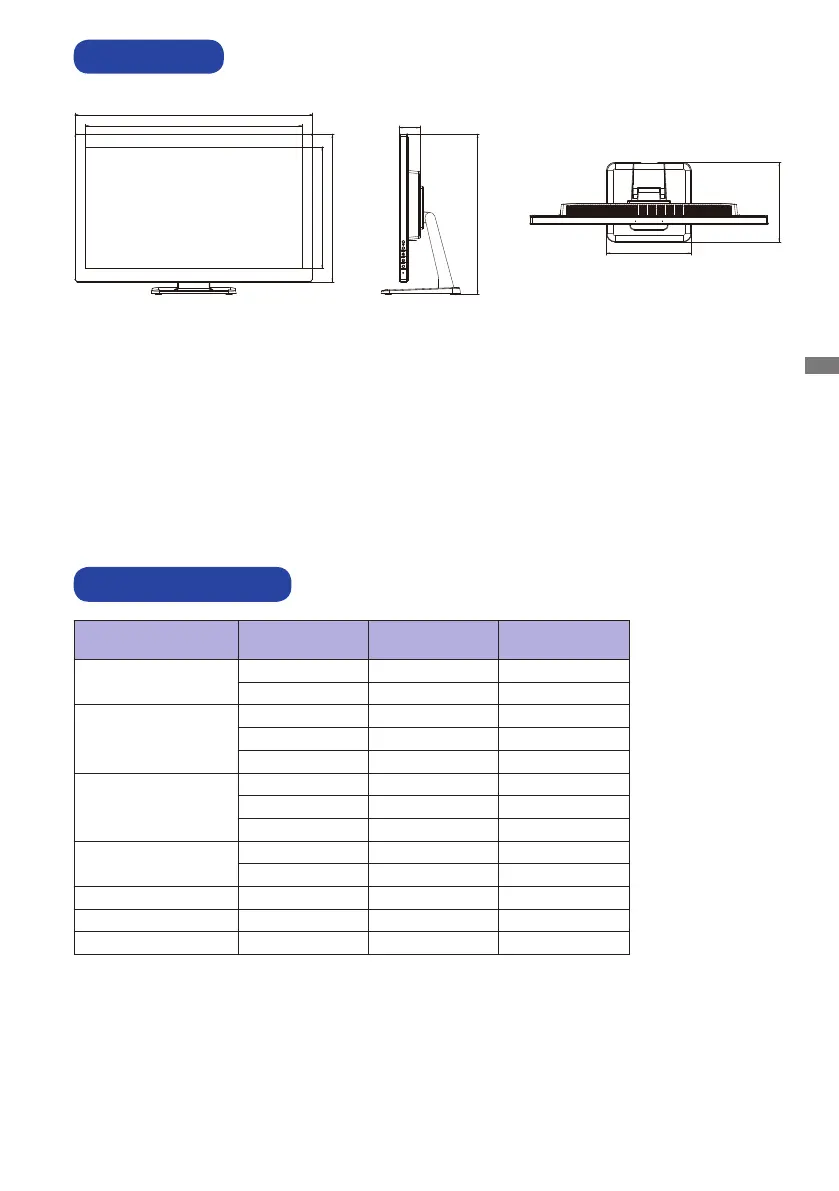

APPENDIX 25
DIMENSIONS
M214A21
COMPLIANT TIMING
659.5mm/26.0”
338.0mm/13.3”
410.5mm/16.2”
235.5mm/9.3”
220.5mm/8.7”
58.0mm/2.3”
599.5mm/23.6”
Video Mode
Horizontal
Frequency
Vertical
Frequency
Dot Clock
640 × 480
31.469kHz 59.940Hz 25.175MHz
37.500kHz 75.000Hz 31.500MHz
800 × 600
35.156kHz 56.250Hz 36.000MHz
37.879kHz 60.317Hz 40.000MHz
46.875kHz 75.000Hz 49.500MHz
1024 × 768
48.363kHz 60.004Hz 65.000MHz
56.476kHz 70.069Hz 75.000MHz
60.023kHz 75.029Hz 78.750MHz
1280 × 1024
63.981kHz 60.020Hz 108.000MHz
79.976kHz 75.025Hz 135.000MHz
1440 × 900 55.935kHz 59.887Hz 106.500MHz
1680 × 1050 65.290kHz 60.000Hz 146.250MHz
1920 × 1080 66.590kHz 59.930Hz 138.500MHz
