ENGLISH
APPENDIX 21

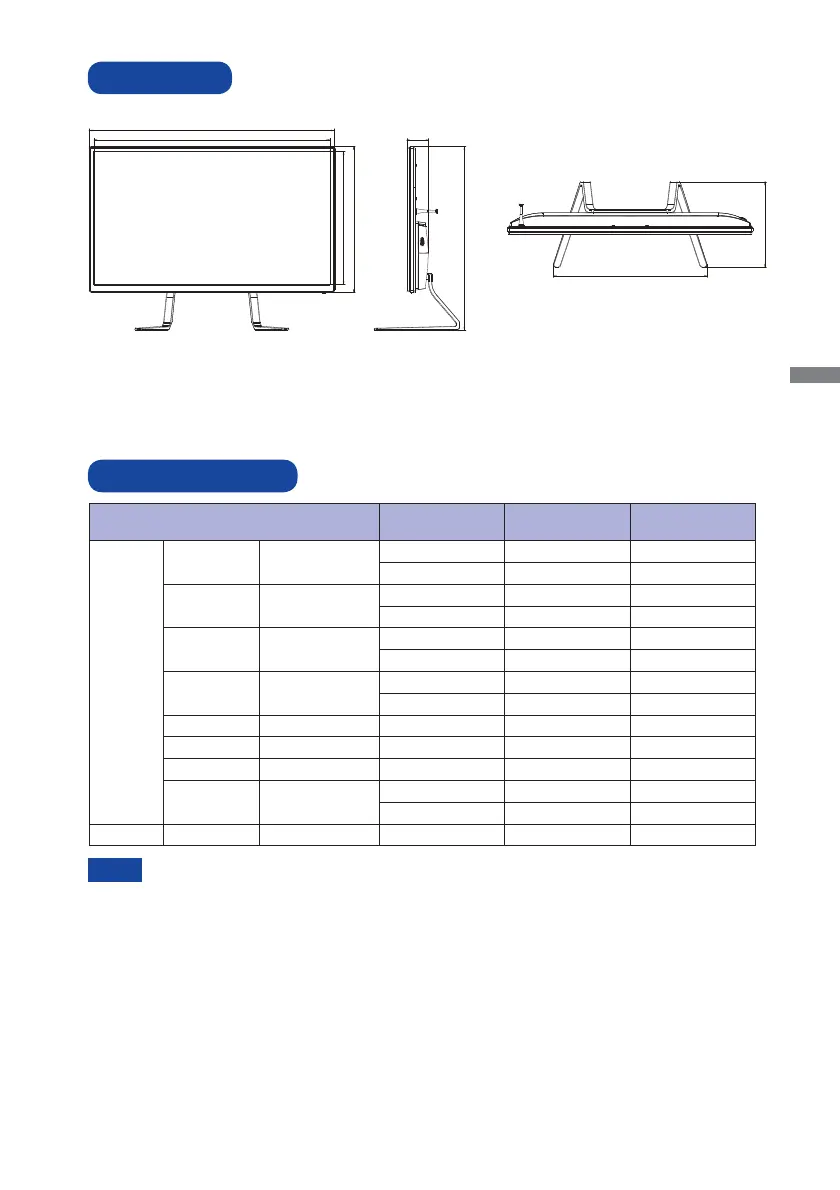

DIMENSIONS
729.5mm/28.7”
254.0mm/10.0”
457.5mm/18.0”
700.5mm/27.6”
395.0mm/15.6”
433.0mm/17.0”
546.0mm/21.5”
64.5mm/2.5”
COMPLIANT TIMING
M197A21
*
Recommended to use on PbP mode.
NOTE
Video Mode
Horizontal
Frequency
Vertical
Frequency
Dot Clock
VESA
VGA 640 × 480
31.469kHz 59.940Hz 25.175MHz
37.500kHz 75.000Hz 31.500MHz
SVGA 800 × 600
37.879kHz 60.317Hz 40.000MHz
46.875kHz 75.000Hz 49.500MHz
XGA 1024 × 768
48.363kHz 60.004Hz 65.000MHz
60.023kHz 75.029Hz 78.750MHz
SXGA 1280 × 1024
63.981kHz 60.020Hz 108.000MHz
79.976kHz 75.025Hz 135.000MHz
WSXGA+ 1680 × 1050 65.290kHz 60.000Hz 146.250MHz
Full HD 1920 × 1080 66.590kHz 59.930Hz 138.500MHz
QHD 2560 × 1440 88.787kHz 59.951Hz 241.500MHz
UHD 3840 × 2160
67.430kHz 29.970Hz 296.700MHz
133.313kHz 59.997Hz 533.250MHz
1920 × 2160 133.293kHz 59.988Hz 277.250MHz *
