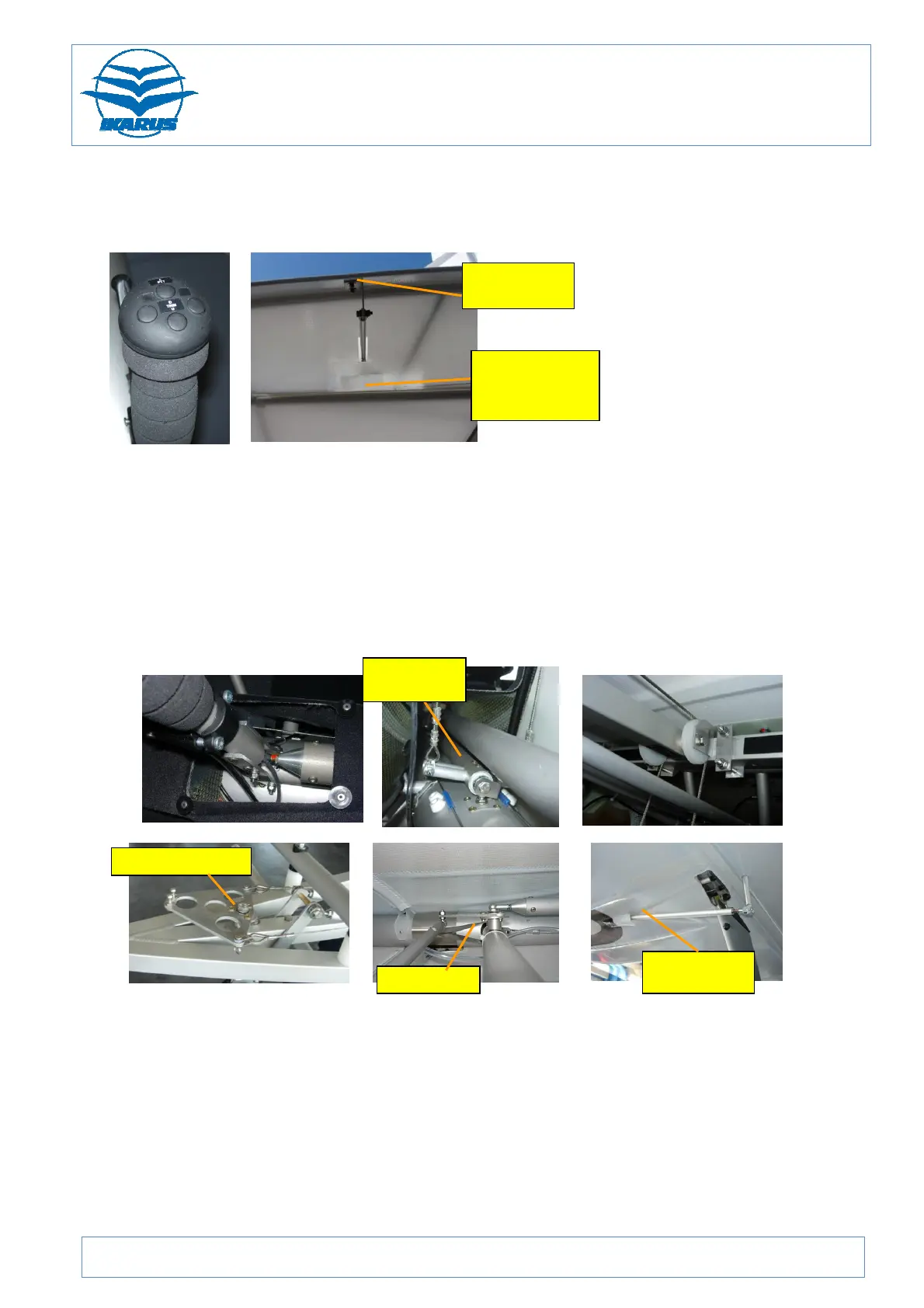

Figure 37: Activation of the electrical trim tab
2.8.3 Aileron:
The control stick is attached to a torsion tube. This torsion tube drives two cables via
a bellcrank. The cables are re-directed by two pulleys mounted on the cross-rod of
the canopy roof frame and routed to the aileron quadrant. From the quadrant, the
ailerons are actuated via two aileron rods and a bellcrank per wing.
Figure 38: Aileron activation
aileron control
horn
aileron quadrant
aileron
torsion tube
bellcrank
trim tab
control horn
trim servo
underneath the
covering
