25
69010
67372
67605
67464
67382
67399
67465
67381
68245
67476
160556
67380
67571
67385
67387
67365
68240
67370
67474
67475
68305
a.
b.
c.
67375
67473
67561
67475
67368
67561
67582
67566
67369
67392
68215
67400
67462
67366
67375
68240
67471
68252
67396
67467
67472
67561
67367
67582
67477
67468

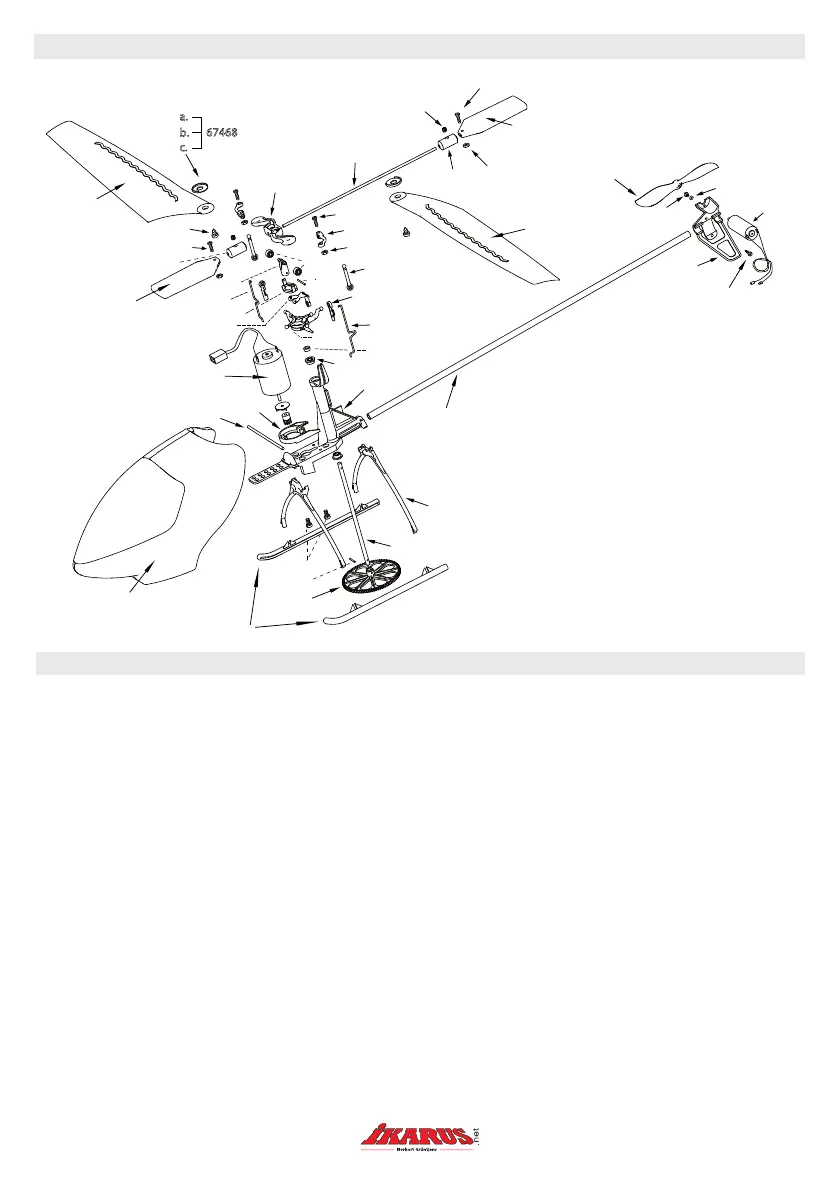

Exploded drawing of Piccolo V2
No. Order No. Description VPE
1 67380 canopy mount 1
2 67571 bearing 3x7x3 2
1 67382 main rotor shaft 1
1 67385 rubber grommet 4
1 67399 retaining pin 1 x 6 x 8 3
2 67367 linkages 2
2 67368 ybar control arm 2
2 67365 ball link 4
1 67366 anti-rotion link 1
2 67566 ball bearing 2x6x3 2
1 67369 centre hub 1
1 67400 retaining pin 1m6 x 12 3
4 67561 screw m2x6 20
4 67582 nut m 2 20
1 67396 washer m 1.4 5
2 67477 self tapping screw 10
2 67387 pushrod steel, long 2
1 67392 pushrod steel, short 2
1 67370 rotorhead 1
1 68245 main frame 1
2 68240 ybar paddle 2
1 67372 main gear 1
2 67375 main rotor blades 1 pair
2 67409 rubber ring 40 x 3.0 x 1.2 mm 5
1 67381 tail boom 1
No. Order No. Description VPE
1 67464 skid v2, front/rear 1 pair
1 67465 skids v2, left/right 1 pair
1 67467 tail housing v2 1
1 67468 pitch discs v2, type 1,2,3 1 set
1 67471 tail rotor propeller v2 1
1 67472 tail motor v2 1
1 68252 screw m1.6 x 3 5
3 67473 self tapping screw ø 2.9x3 10
1 68215 center hub retainer 2
1 67474 ybar v2 1
1 160556 fan housing 1
2 67605 screw m 3x8 20
2 67475 ybar weight 2
2 68305 screw m 3 x 3 10
1 6043001 decal-set eco piccolo v2 1
1 6049001 assembly instructions piccolo 1
1 69010 pre-assembled body w/o decal 1
1 67462 swashplate 1
1 67476 main motor with pinion 1
