• Also check that there is a power socket
near the installation area.
• The product cannot be installed above
cooling appliances, dishwashers, heaters,
ovens, washing machines and dryers.
Installation and connection
• In the event of problems, contact the Au-
thorized Service Center. To prevent any
damage, only remove the appliance from
its packaging at the time of installation.
• Both electric and mechanical installation
must be carried out by specialised person-
nel.
• The minimum installation distance:
30" (76.2 cm) minimum clearance between
top of cooktop platform and bottom of un-
covered wood or metal cabinet (24" [61
cm] minimum clearance if bottom of wood
or metal cabinet is covered by not less
than 1/4" [0.6 cm] flame retardant mill-
board covered with not less than No. 28
MSG sheet steel, 0.015" [0.04 cm] stainless
steel, or 0.024" [0.06 cm] aluminum or
0.020" [0.05 cm] copper)
• The recommended distances are given as
examples: when planning the spaces, the
indications of the kitchen manufacturer
must be observed.
• To eliminate the risk of burns or fire by
reaching over heated surface units, cab-
inet storage space located above the sur-
face units should be avoided. If cabinet
storage is to be provided, the risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5
inches beyond the bottom of the cabinets.
Installation induction cooktop
• Create the cut-outs in the cabinet before
inserting the cooktop and carefully re-
move any shavings or sawdust.
• to ensure the correct installation of the
product, it is recommended to tape the
pipes using an adhesive with the following
characteristics: soft elastic PVC film, with
an acrylic-based adhesive; compliant with
DIN EN 60454 regulations; flame retard-
ant; excellent resistance to wear; resistant
to temperature fluctuations can be used at
low temperatures
WARNING: Failure to install screws
and fasteners in accordance with these in-
structions may result in electrical hazards
Electrical connect
• 4-Wire Cable from Home Power Supply
to 4-Wire Cable from Cooktop
IMPORTANT: Use the 4-wire cable from
home power supply in the U.S. where local
codes do not allow grounding through the
neutral conductor, such as in: homes and
recreational vehicles, new construction, and
in Canada

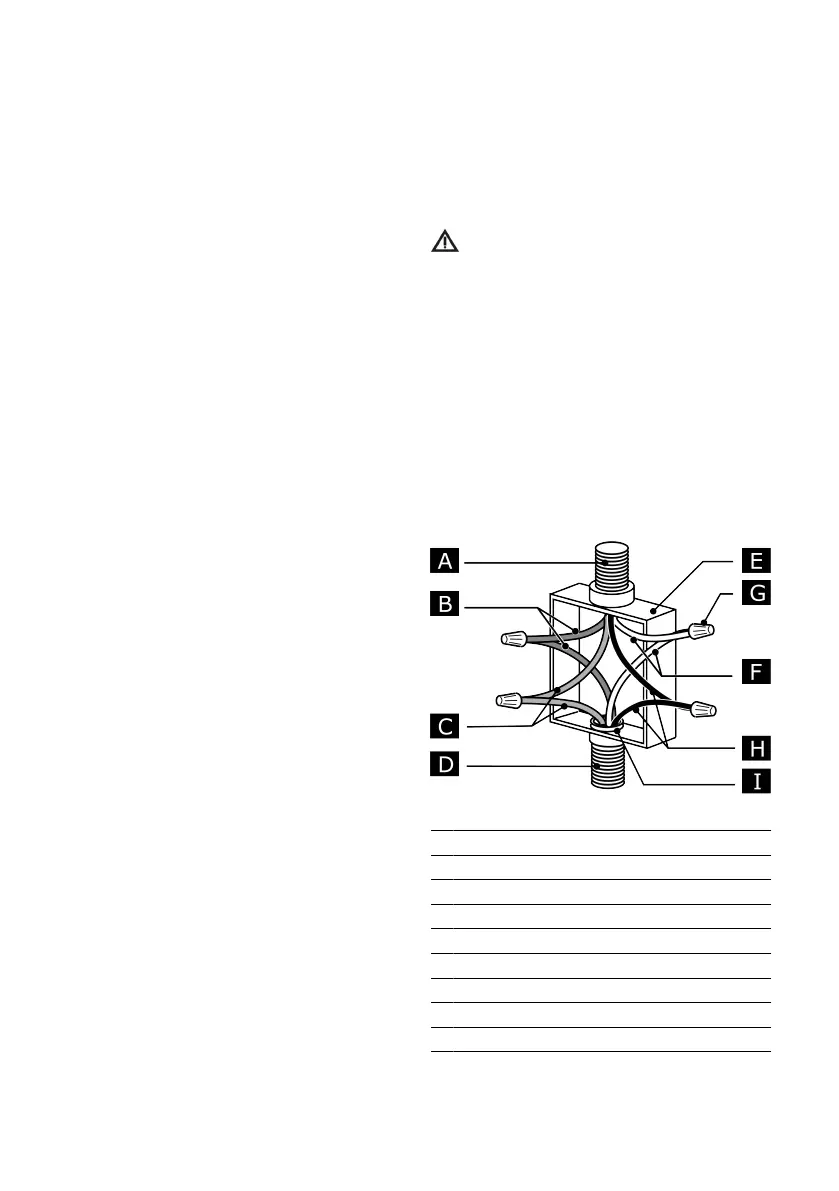

A Cable from home power supply
B Red wires
C Green or yellow-green ground wires
D 4-wire cable from cooktop
E Junction box
F White wires
G UL listed wire connector
H Black wires
I UL listed or CSA approved conduit connector
1. Connect the 2 black wires together using
the UL listed wire connectors
