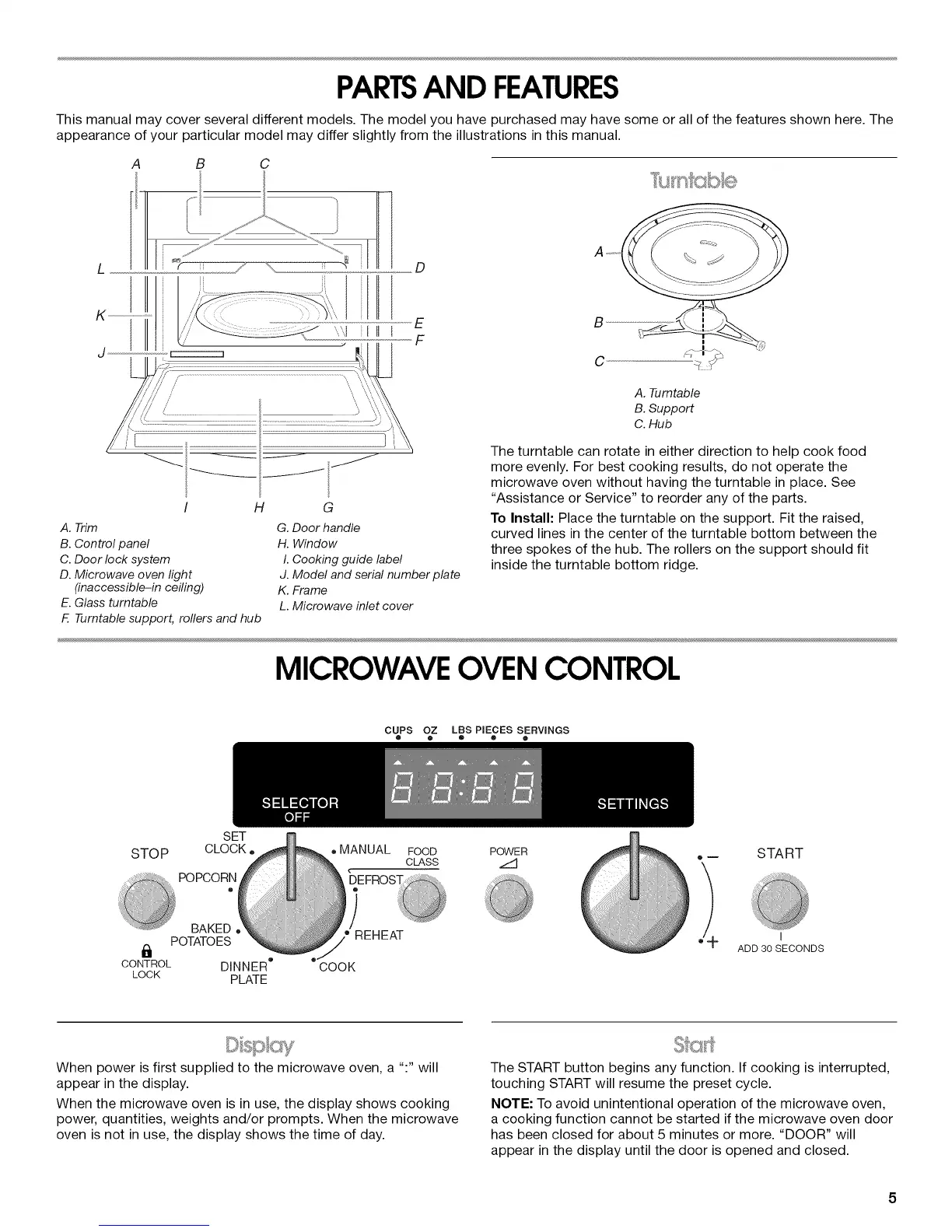

PARTSAND FEATURES
This manual may cover several different models. The model you have purchased may have some or all of the features shown here. The
appearance of your particular model may differ slightly from the illustrations in this manual.
A B C
It
E
F
/
/
/
/
H
A. Trim
B. Control panel
C. Door lock system
D. Microwave oven light
(inaccessible-in ceiling)
E. Glass turntable
F. Turntable support, rollers and hub
...................................................................J
J
_J
G
G. Door handle
H. Window
I. Cooking guide label
J. Model and serial number plate
K. Frame
L. Microwave inlet cover
B _A..... J
c ......................._
A. Turntable
B. Support
C. Hub
The turntable can rotate in either direction to help cook food
more evenly. For best cooking results, do not operate the
microwave oven without having the turntable in place. See
"Assistance or Service" to reorder any of the parts.
To Install: Place the turntable on the support. Fit the raised,
curved lines in the center of the turntable bottom between the
three spokes of the hub. The rollers on the support should fit
inside the turntable bottom ridge.
MICROWAVEOVEN CONTROL
cups oz LBsPIECESSERVI.GS
® • ®
SET
STOP CLOCK.
POTATOES
li
CONTROL DINNER*
LOCK PLATE
. MANUAL FOOD POWER
CLASS Jl
REHEAT
START
• --
ADD 30 SECONDS
When power is first supplied to the microwave oven, a ":" will
appear in the display.
When the microwave oven is in use, the display shows cooking
power, quantities, weights and/or prompts. When the microwave
oven is not in use, the display shows the time of day.
The START button begins any function. If cooking is interrupted,
touching START will resume the preset cycle.
NOTE: To avoid unintentional operation of the microwave oven,
a cooking function cannot be started if the microwave oven door
has been closed for about 5 minutes or more. "DOOR" will
appear in the display until the door is opened and closed.
