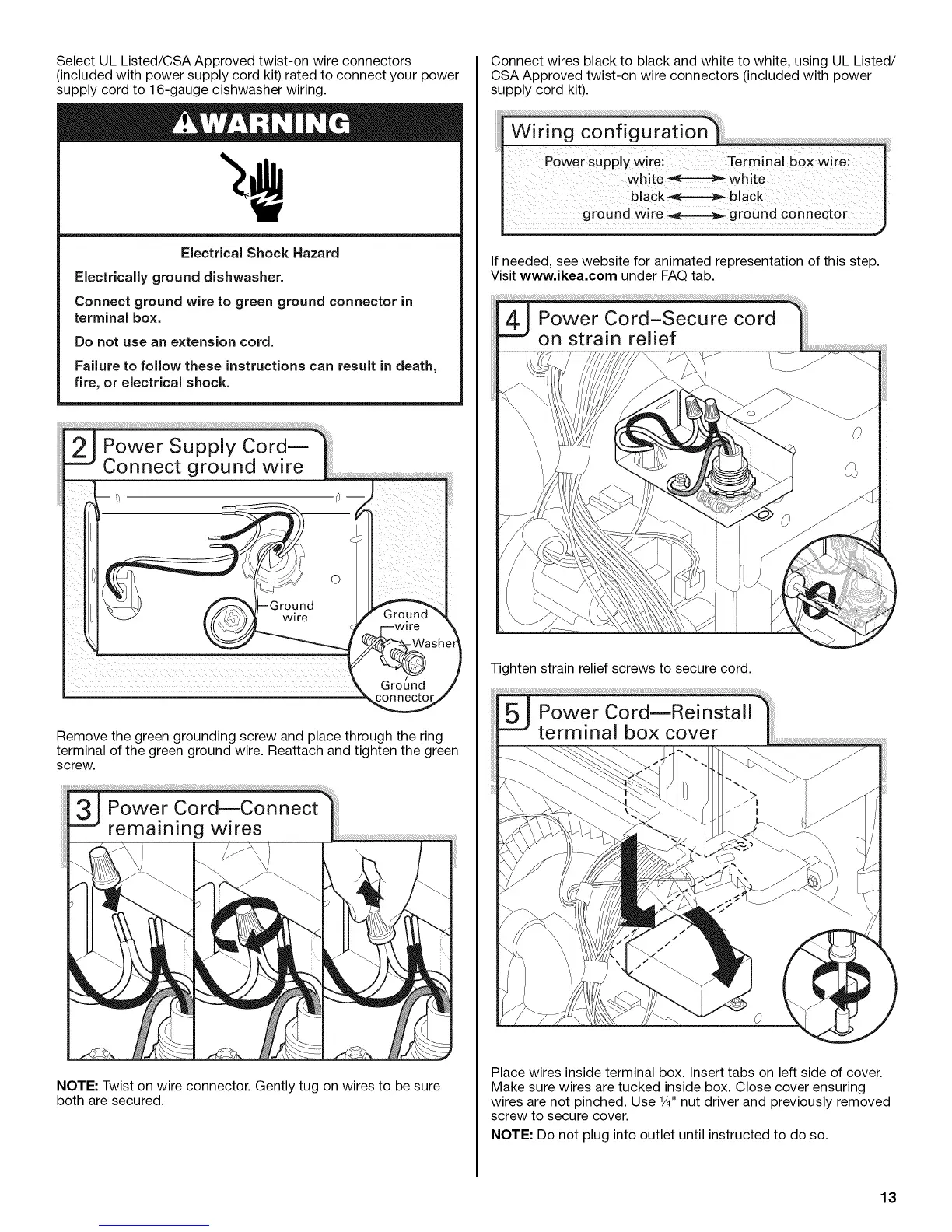

Select UL Listed/CSA Approved twist-on wire connectors
(included with power supply cord kit) rated to connect your power
supply cord to 16-gauge dishwasher wiring.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
ii o 1 i ili
I I '_-&.) f_,_--,.%.ll--Ground /
_ashe
Ground.
)
Remove the green grounding screw and place through the ring
terminal of the green ground wire. Reattach and tighten the green
screw.
Powe r Co rdmCo n nect
remaining wires
NOTE: Twist on wire connector. Gently tug on wires to be sure
both are secured.
Connect wires black to black and white to white, using UL Listed/
CSA Approved twist-on wire connectors (included with power
supply cord kit).
If needed, see website for animated representation of this step.
Visit www.ikea.com under FAQ tab.
Tighten strain relief screws to secure cord.
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use 1/4"nut driver and previously removed
screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
