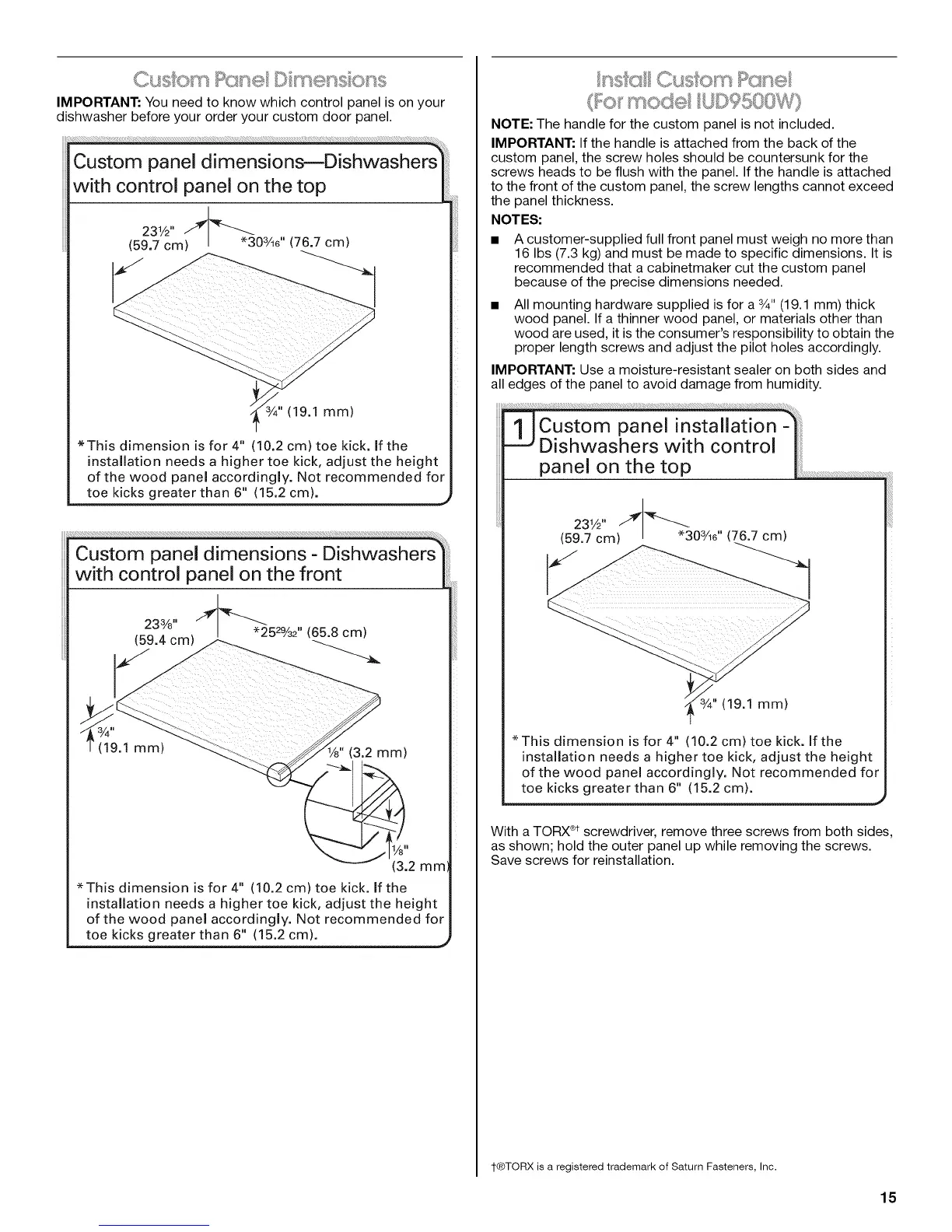

IMPORTANT: You need to know which control panel is on your
dishwasher before your order your custom door panel.
= ; hw;i=1
with control panel on the top
231/2'' _
(59.7 cm) I "303A6" (76.7 cm)
3/4"(19.1 mm)
*This dimension is for 4" (10.2 cm) toe kick. If the
installation needs a higher toe kick, adjust the height
of the wood panel accordingly. Not recommended for
. toe kicks greater than 6" (15.2cm). . J
with control panel on the front
_9.1 mm)
(3.2 mm)
(3.2 mm]
*This dimension is for 4" (10.2 cm) toe kick. If the
installation needs a higher toe kick, adjust the height
of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
NOTE: The handle for the custom panel is not included.
IMPORTANT: If the handle is attached from the back of the
custom panel, the screw holes should be countersunk for the
screws heads to be flush with the panel. If the handle is attached
to the front of the custom panel, the screw lengths cannot exceed
the panel thickness.
NOTES:
A customer-supplied full front panel must weigh no more than
16 Ibs (7.3 kg) and must be made to specific dimensions. It is
recommended that a cabinetmaker cut the custom panel
because of the precise dimensions needed.
All mounting hardware supplied is for a 3/4"(19.1 mm) thick
wood panel. If a thinner wood panel, or materials other than
wood are used, it is the consumer's responsibility to obtain the
proper length screws and adjust the pilot holes accordingly.
IMPORTANT: Use a moisture-resistant sealer on both sides and
all edges of the panel to avoid damage from humidity.
1]Custom panel installatio }_ii
--:J Dishwashers with control/iiii
panel on the top
3/4"(19.1 mm)
*This dimension is for 4" (10.2 cm) toe kick. If the
installation needs a higher toe kick, adjust the height
of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
With a TORX _)tscrewdriver, remove three screws from both sides,
as shown; hold the outer panel up while removing the screws.
Save screws for reinstallation.
1-®TORX is a registered trademark of Saturn Fasteners, Inc.
15
