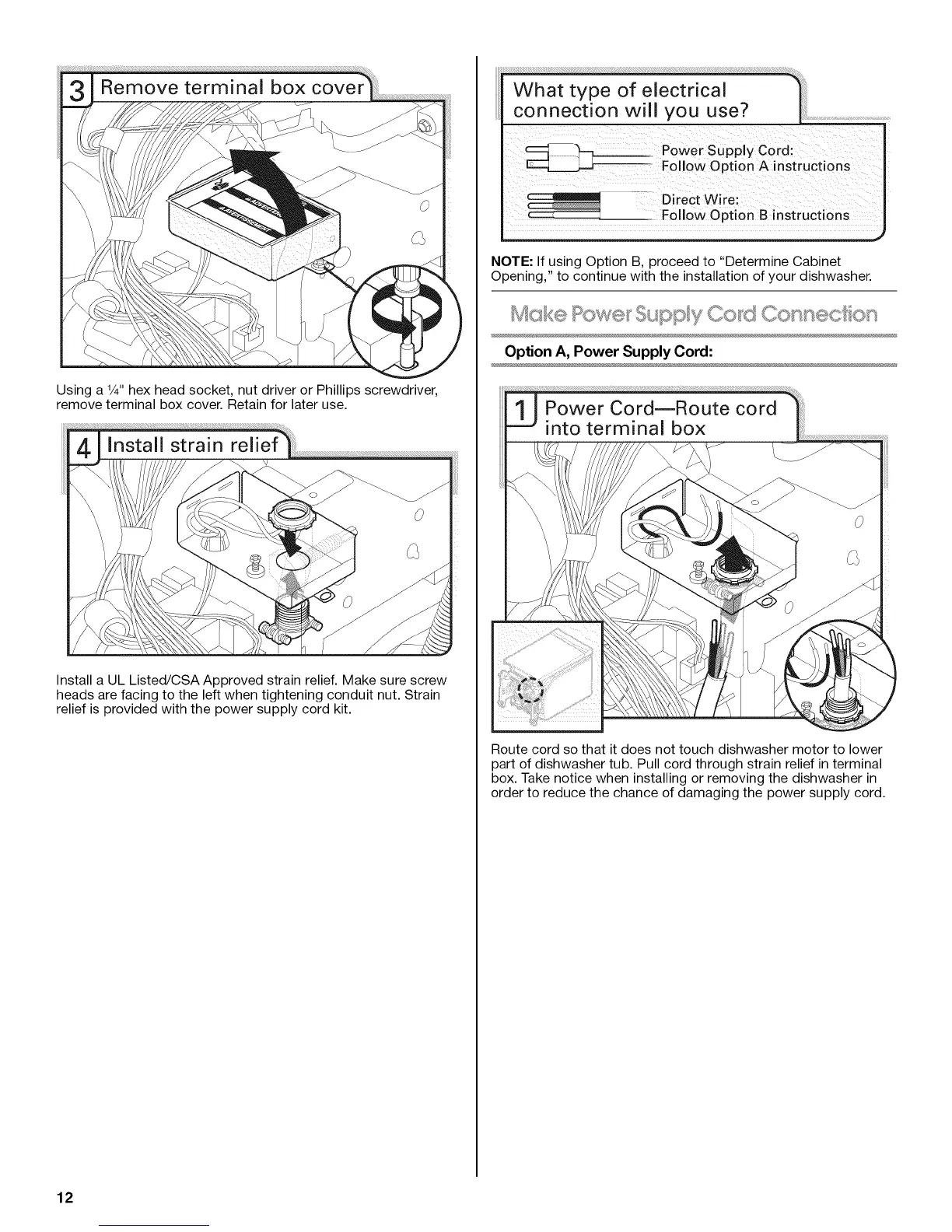

Using a 1/4"hex head socket, nut driver or Phillips screwdriver,
remove terminal box cover. Retain for later use.
Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
J
NOTE: If using Option B, proceed to "Determine Cabinet
Opening," to continue with the installation of your dishwasher.
Mcsk® Pow®t; S__s'sv Co_ Co_%s®ct o_/_
......... _,_t_,;_'..........
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor to lower
part of dishwasher tub. Pull cord through strain relief in terminal
box. Take notice when installing or removing the dishwasher in
order to reduce the chance of damaging the power supply cord.
