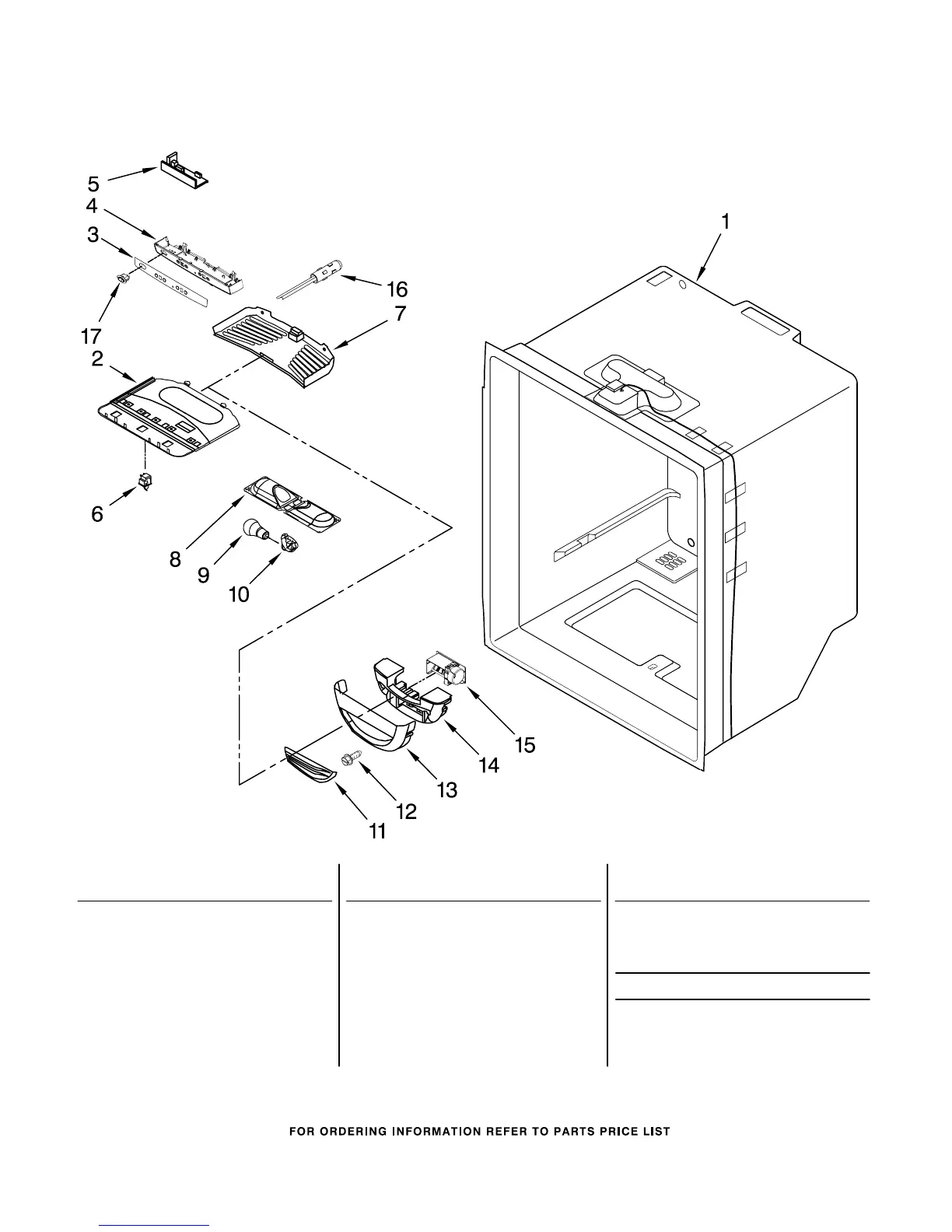

REFRIGERATOR LINER PARTS
6
For Model: IX5HHEXWS01
(Stainless Steel)
W10297587
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806302 Bracket, Control
and Lights
3
W10180453 Overlay
4 12806407 Housing,
Electronic Control
5 12868513 Board, Control
6
C3680310V Switch, Light
7 12806501 Cover, Light
8
12806601V Housing, Light
9
W10194422V Bulb, Light (2)
10
12570701V Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw (2)
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10196393 Control, Damper
16 12002355 Thermistor
17 12861601 Switch−Enrgy.Saver
Following Parts Not Illustrated
12868601 Harness, Controls
(Refrigerator)
(Includes # 16)
