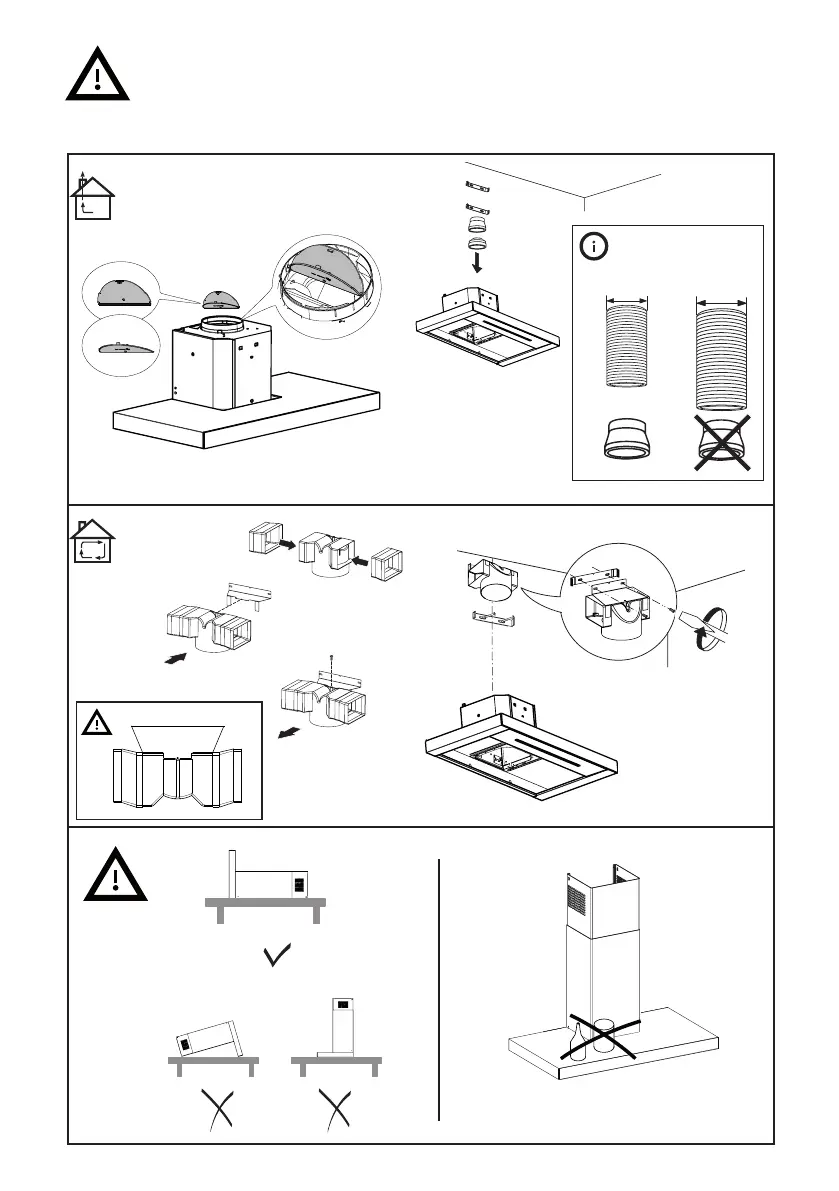

IND. N DIS. DENOMINATION Q.
1
241_054 241_054 1
2
350_050 CHARCOAL FILTER FIXING 2
3
325083_001 UPPER SHELL K900 1
4
325083_002 SUPPORT LED BAR K900 1
5
325083_003 ATL T5 CONTROLS FRONTAL PANEL K900 1
6
325083_004 CONTROL GLASS SQUARCLE 5T 1
7
325083_710 GENERAL ASSEMBLY KULINARISK 900 IKEA 1
8
325083_711 MAIN BODY K900 1
9
325083_712 ASSEMBLED CONTROL GLASS ATL T5 1
10
325083_731 EXPLODED DRAWING 1
11
A08_070 A08_070 2
12
A08_072 A08_072 1
13
A18_023 A18_023 1
14
A18_024 A18_024 1
15
A18_027 A18_027 1
16
A18_028 A18_028 1
17
A18_029 A18_029 1
18
A18_035 A18_035 2
19
A18_044 A18_044 2
20
A18_118 A18_118 2
21
A18_155 BLOWER SUPPORT 1
22
A18_721 A18_721 1
23
A18_739 A18_739 2
24
A18_804 MAIN BODY EASY CUBE 1
25
A39_100 A39_100 1
26
AP8_015 HOOD SUPPORT 1
27
CME_730 STRIP LED PPT 161020 L600 1
28
CMM_074 MS-TECHNO SILICONIC GLUE 6
29
CMM_103 DOUBLE-SIDED TAPE 3M 9473 12x55 5
30
CMM_106 DOUBLE-SIDED TAPE 25X33 XHATM6620 AVERY 6
31
CMM_FISHER SMALL BLOCK S 5C FISHER 2
32
CWA_4007 UPPER CHIMNEY X 300-260-F415-R5 1
33
CWA_000B LOWER CHIMNEY X 300-260-A545-R5 1
34
D15_001_A POWER SUPPLY LOCK 1
35
D15_001_ASM POWER SUPPLY LOCK 1
36
D15_001_B POWER SUPPLY LOCK 1
37
FIF_039 CASSETTE FILTER 380x300 INOX Q8x8 P11 2
38
K27_006 SPRING CAPACITIVE KEY 5
39
K44_002 CONTROLS BOX 1
40
K44_008 CONTROLS BRACKET 1
41
K45_002 PCB TOUCH UNDER GLASS 1
42
K45_003 SPRING SUPPORT 1
43
K45_703 UI TOUCH GLASS BL 4V 1
44
VITE_FISHER SCREW 4.2 X 44.4 T/T F.A PM ZN 2
45
VITE_M5X40_TSP_T_CACC VITE_M5X40_TSP_T_CACC 2
