14
EN
BEFORE SETTING SURFACE CONTROLS
Types of Ceramic Cooktop Elements
The circles on the ceramic glass cooktop outline the
size and type of element underneath. The elements
on your cooktop depend on the model.
• A single radiant element has one circle.
• A dual radiant element (some models) has two
circles. The dual radiant element may be set us-
ing only the smaller inner element or both inner
and outer elements may be set to heat together
for a larger surface.

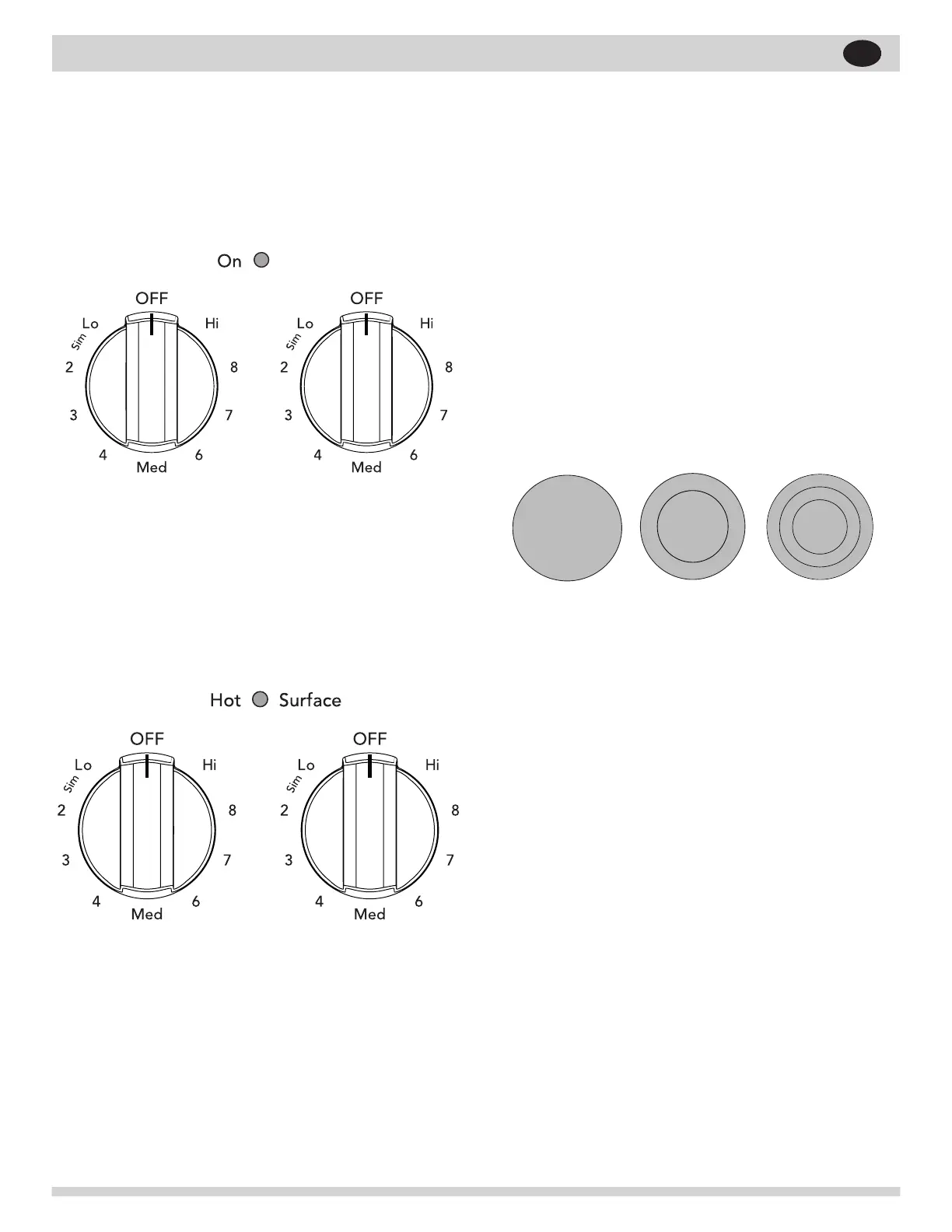

Figure 3: Single and double elements
Element On and Hot Surface Indicator
Lights
The ELEMENT ON indicator light will turn on when
one or more elements are turned on. A quick glance
at this indicator light when cooking is nished is
an easy check to be sure all surface elements are
turned off.
Figure 4: On indicator light
Figure 5: Hot surface indicator light
The HOT SURFACE indicator light will turn on when
the burner is hot enough to cause burns and will
remain on after the burner is turned off until the
surface has cooled to a safe temperature.
• Dual elements allow more exibility with the size
of cookware.
• A keep warm element (WARM ZONE) has one
small circle. It is used to keep food warm after
cooking. The keep warm element is not de-
signed to cook food.
