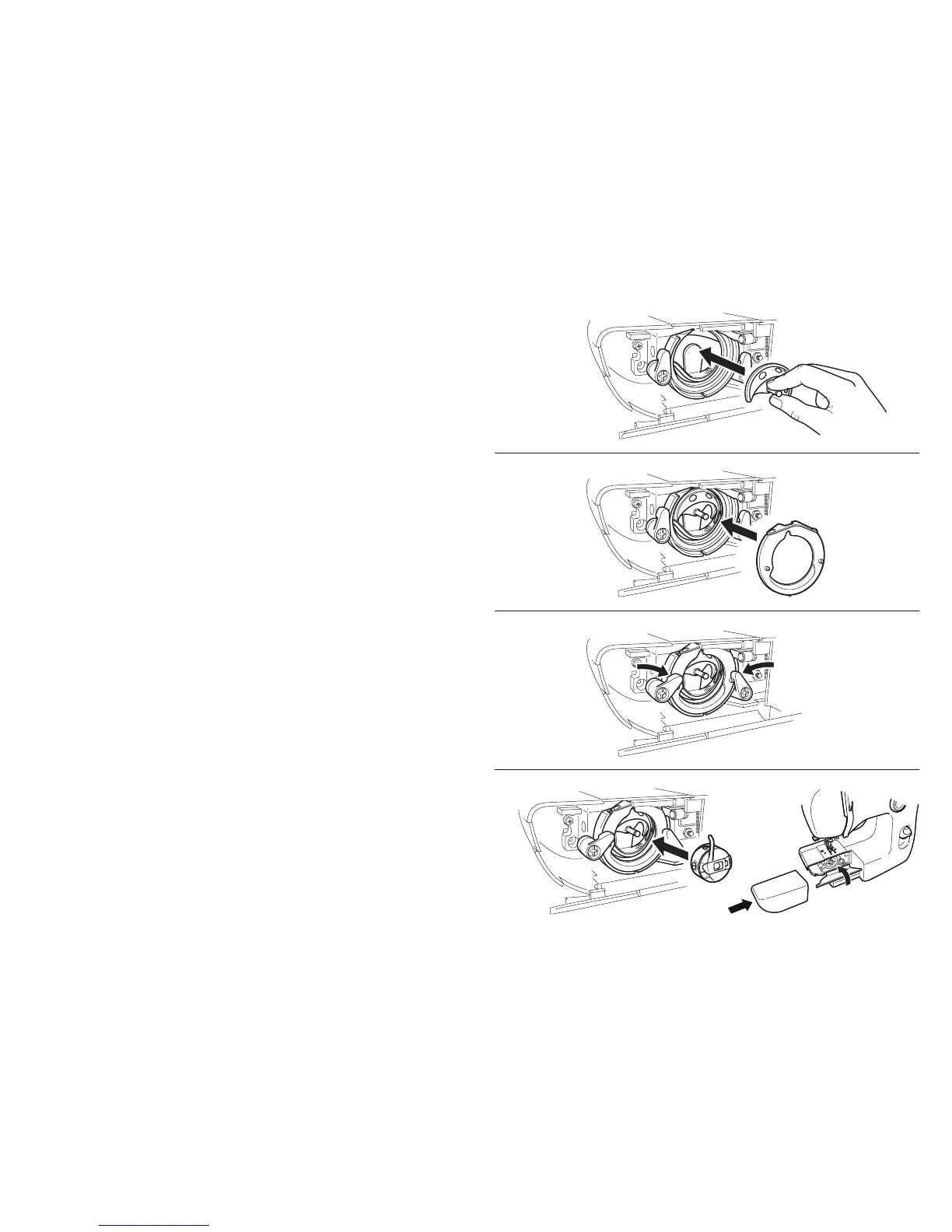

Fit the shuttle assembly
1. Hold the shuttle by the pin and carefully insert it into the shuttle race. It
must form a circle with the shuttle driver.
2. Insert the retaining ring so that the lower pin ts into the groove at the
bottom.
3. Lock the retaining ring into place using the shuttle race levers.
4. Finish by tting the bobbin case into the machine, closing the cover and
putting the accessories compartment back into place.
