Clean the shuttle assembly
Dismantle the shuttle assembly
1. Move the needle to its highest position, remove the accessories compart-
ment and open the cover.*
2. Remove the bobbin case by releasing the little latch and pulling the bob-
bin case out.
3. Push the shuttle race levers aside. Lift out the retaining ring and the shut-
tle by pulling the pin in the centre of the shuttle.
4. Use the brush to remove dust and threads from the parts.

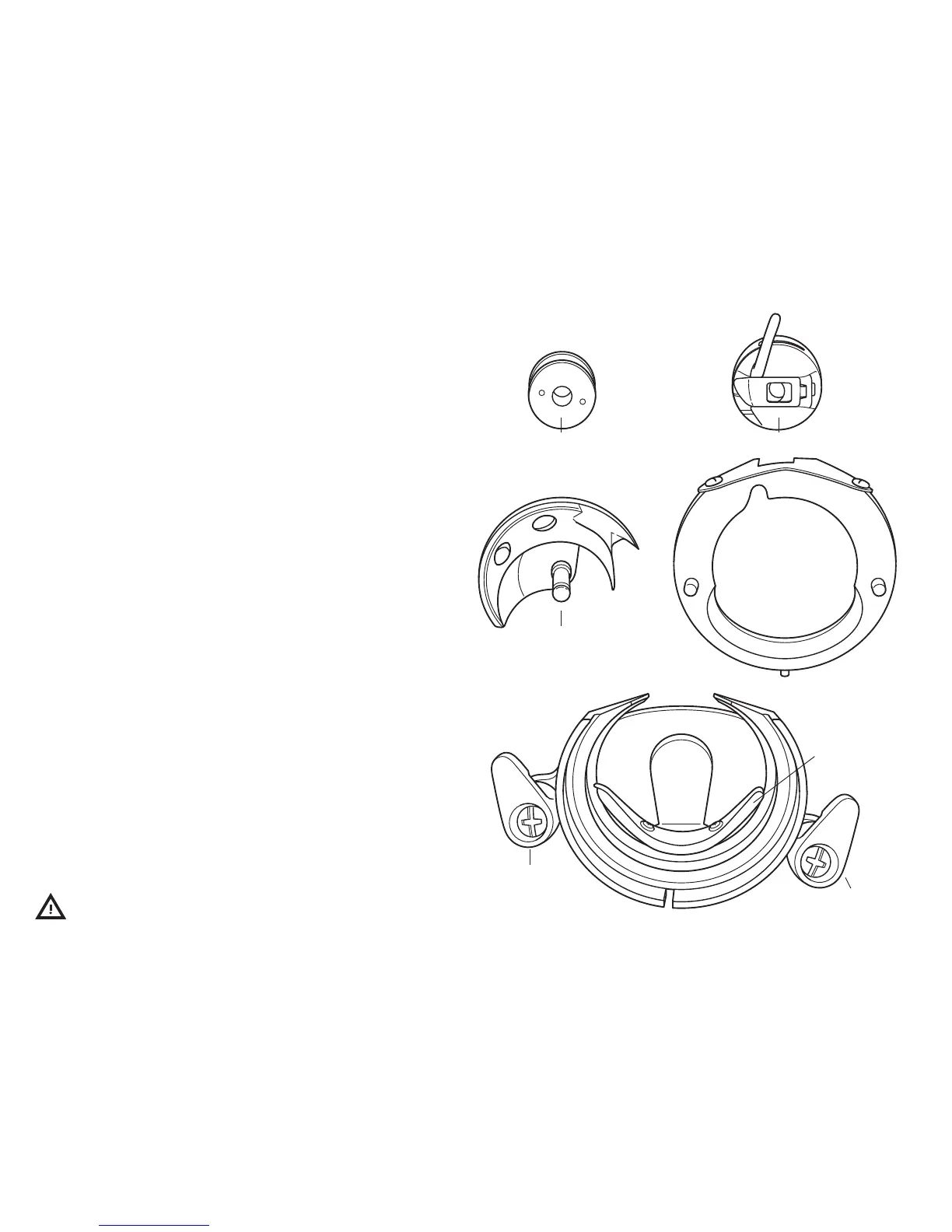

Retaining ring
Shuttle
Bobbin caseBobbin
Lever
Lever
Shuttle
driver
* WARNING! Always unplug the sewing machine from the wall socket before
you leave it or before you replace machine parts.
